Single-Story 5-Bedroom Modern Farmhouse with Split Bedroom Layout and 3-Car Garage (House Plan)

Discover the architectural design of a single-story 5-bedroom modern farmhouse with a split bedroom layout, 3-car garage, and a wraparound porch.

2,705 5 1-2 3

Welcome to our house plans featuring a Single-Story 5-Bedroom Modern Farmhouse with Split Bedroom Layout and 3-Car Garage floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

Option: Bonus Above Garage (+$150)

Main Floor – Bonus Option Stairs Location

Additional Floor Plan Images

The farmhouse's front façade, with its attractive porch and swing on the side.

The farmhouse’s front façade, with its attractive porch and swing on the side.

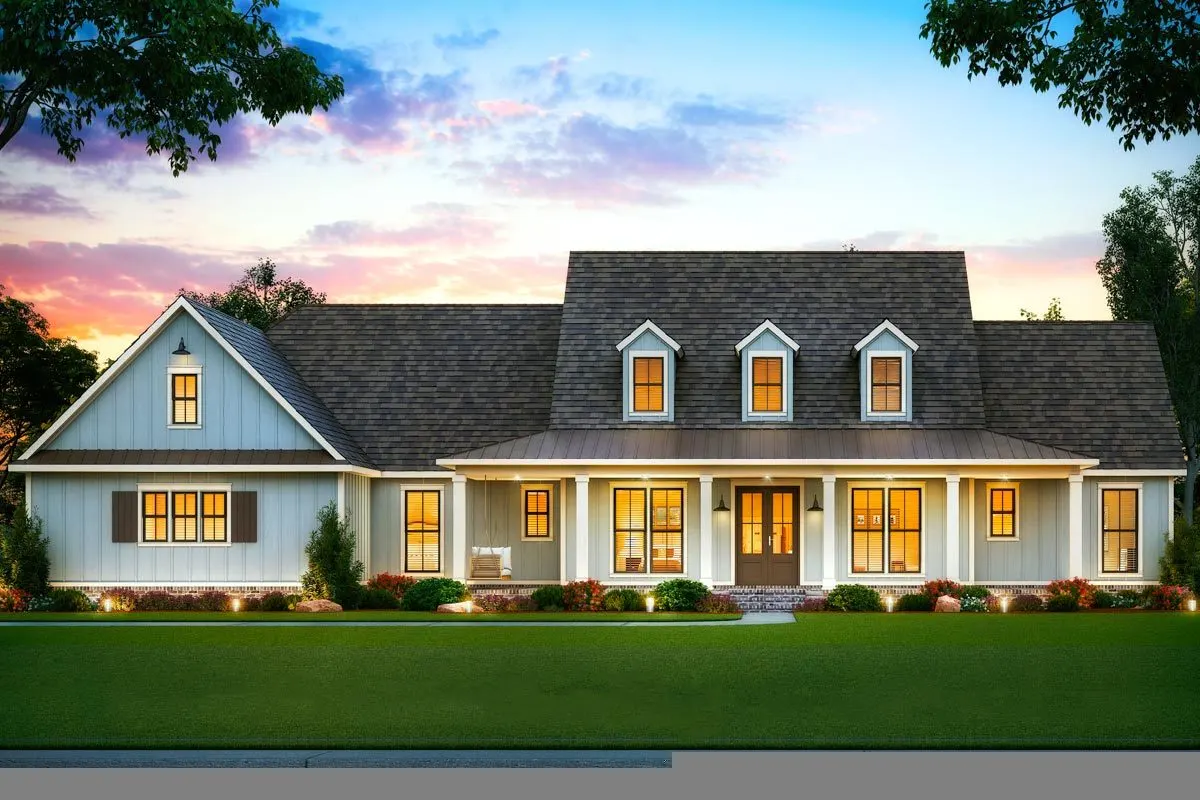

In the lighting from home, the tranquil state of the house appears brilliant.

In the lighting from home, the tranquil state of the house appears brilliant.

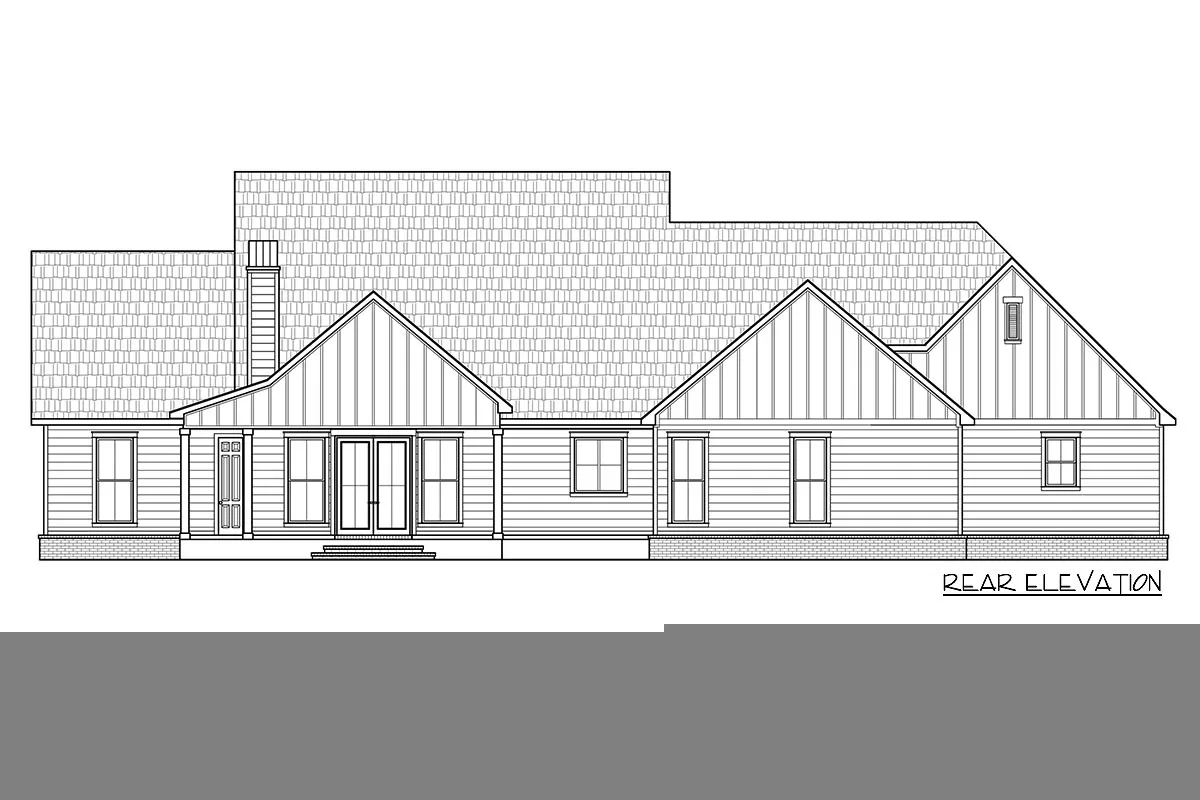

Rear elevation sketch of the single-story 5-bedroom modern farmhouse.

Rear elevation sketch of the single-story 5-bedroom modern farmhouse.

Dimensions

Width: 91′ 10″
Depth: 66′ 7″
Max ridge height: 29′ 10″

Garage

Type: Attached
Area: 880 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

First Floor /
10′ 0″

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 12 on 12
Framing Type: Stick

Dimensions

Width: 91′ 10″
Depth: 66′ 7″
Max ridge height: 29′ 10″

Garage

Type: Attached
Area: 880 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

First Floor /
10′ 0″

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 12 on 12
Framing Type: Stick

View More Details About This Floor Plan

Plan 56462SM

This traditional farmhouse design boasts a front and back porch, an open floor plan, and a separate master suite that provides the homeowner complete seclusion. The gourmet kitchen has a huge prep island as well as an adjoining formal dining room with a butler’s pantry linked to a wide walk-in pantry for plenty of storage. Enjoy the outdoor kitchen on the back porch right outside the kitchen during the warmer months.

The peaceful master bedroom is located on the home’s left side and features a huge bathroom with twin closets, a separate tub and shower, and a makeup station. The three secondary bedrooms on the other side of the house share a four-fixture bathroom. An additional storage area on the 3-car garage provides plenty of space for lawn equipment, reducing garage clutter.
