Discover the architectural design of a new American craftsman home with a separate master bedroom. See more about the exterior which has a large landscape.
Welcome to our house plans featuring a new American craftsman with a private master bedroom floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.
Floor Plan
Main Level
Optional Finished Lower Level
Additional Floor Plan Images

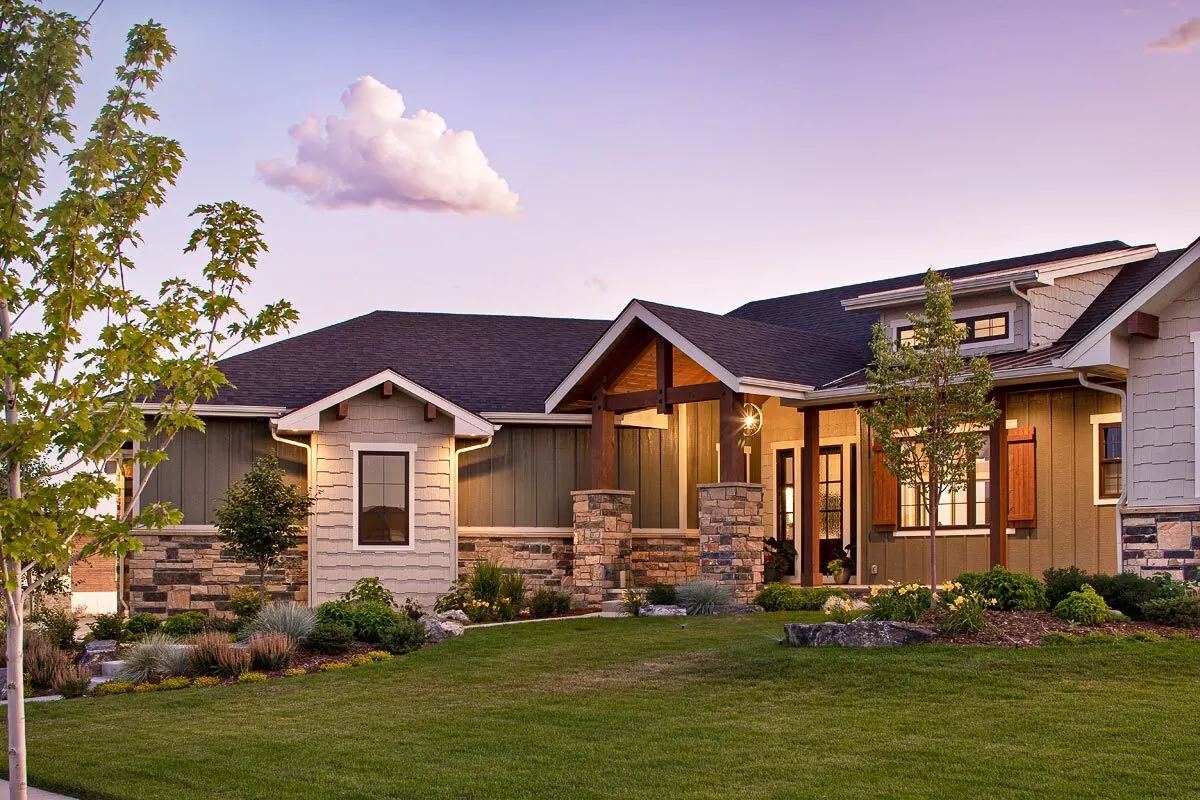

A gorgeous new American house front view with a great setting

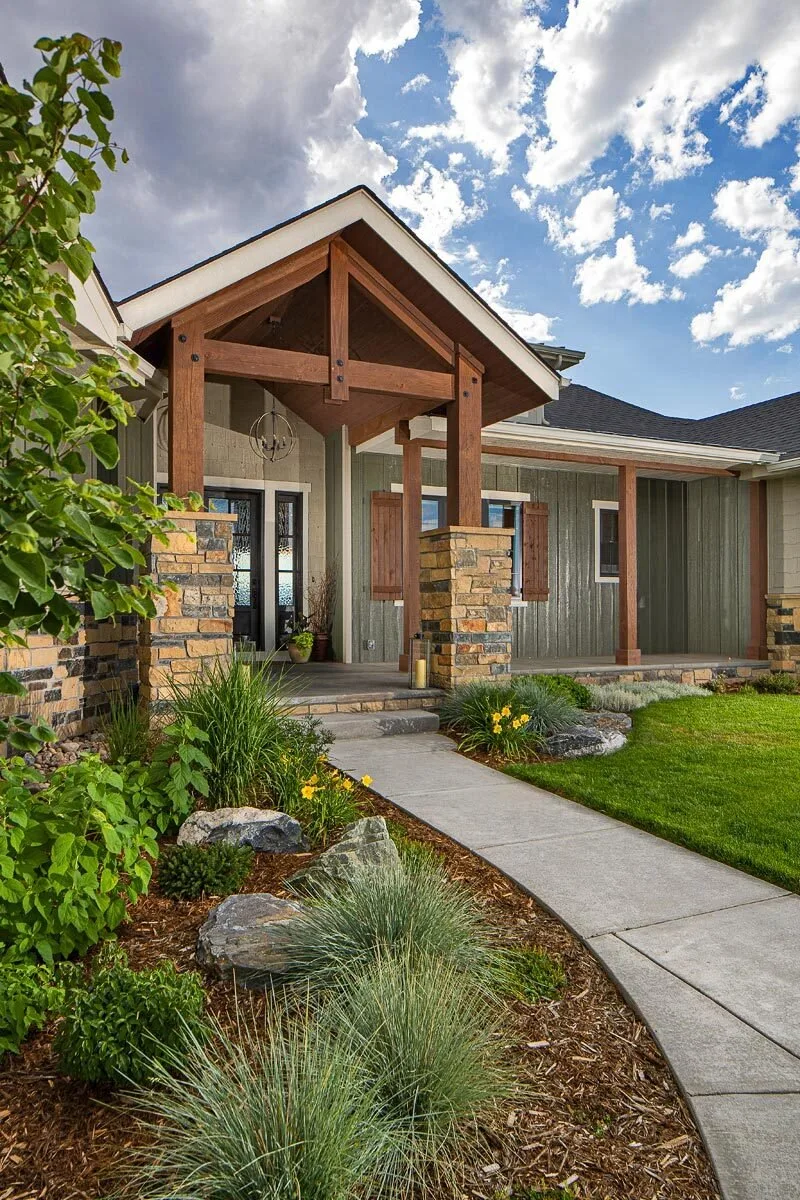

The entrance porch appears welcoming with its wooden accent design and window shutters.

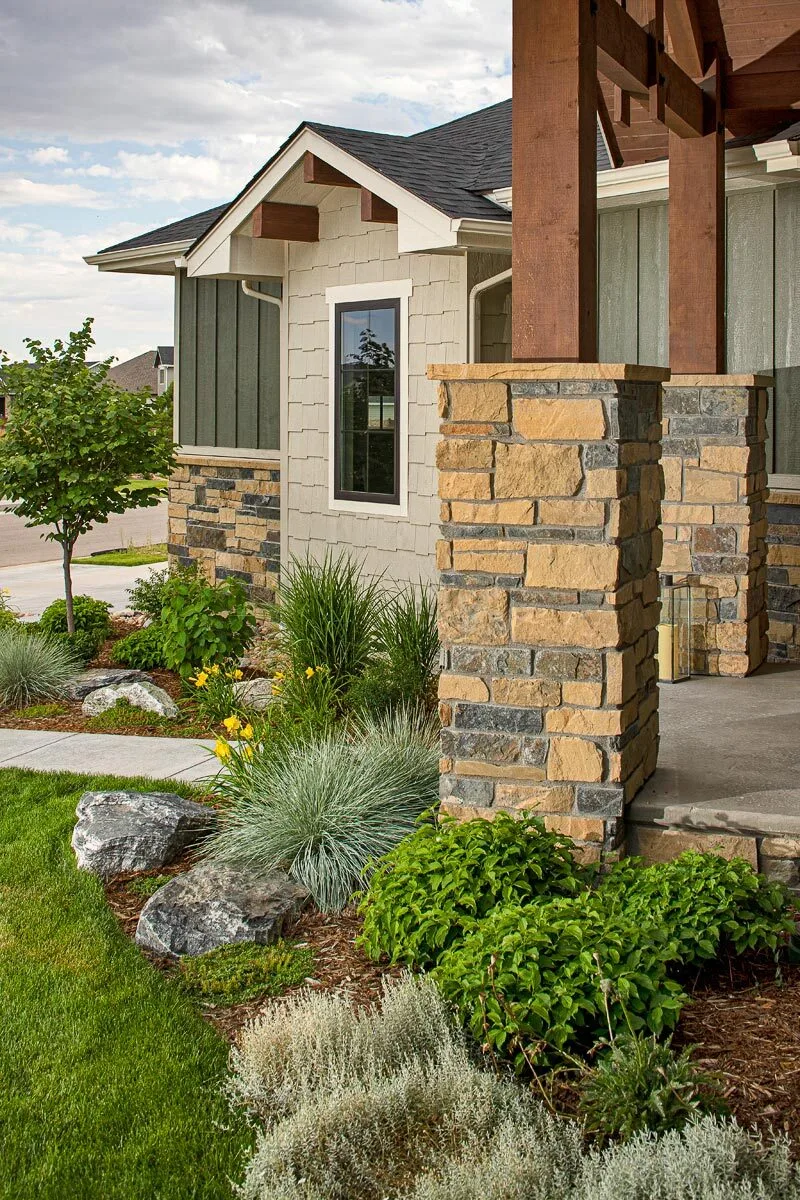

A front porch window view of the slanted garage.
The main entrance door is black with frosted glass, making it stand out in the front area.

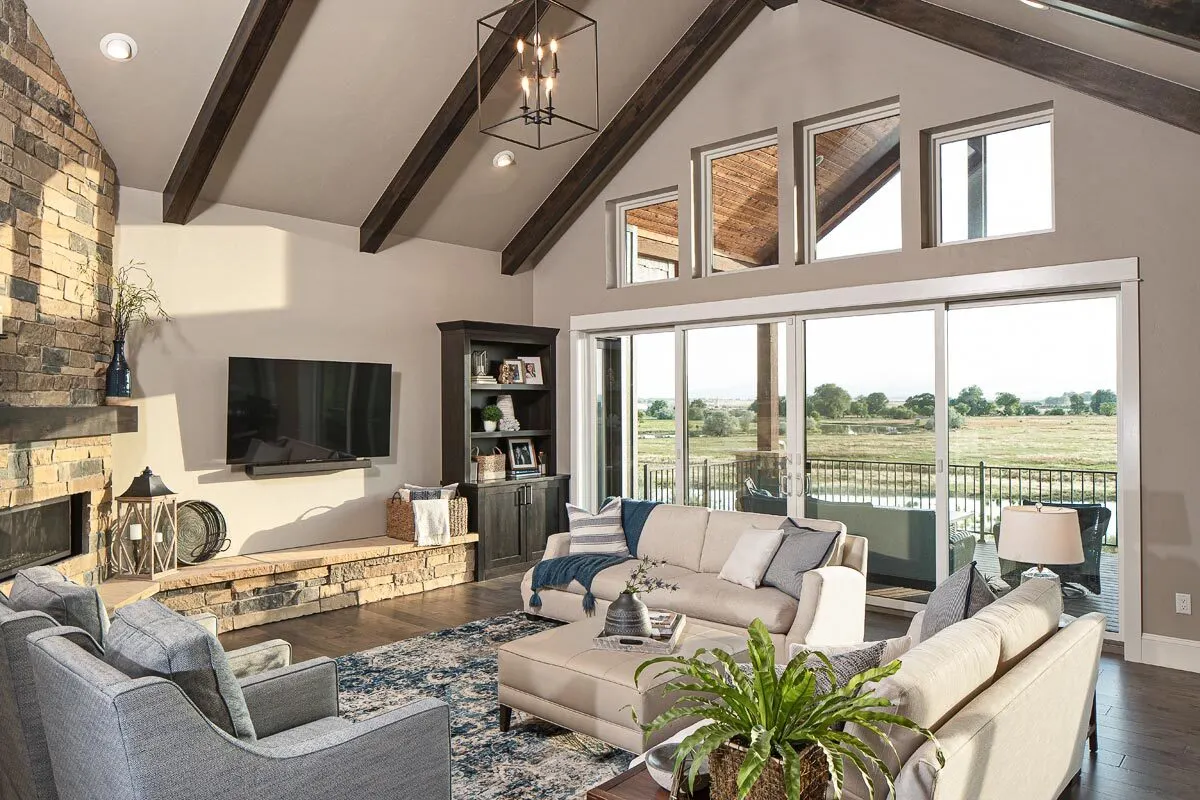

The great room area with a vaulted ceiling features.

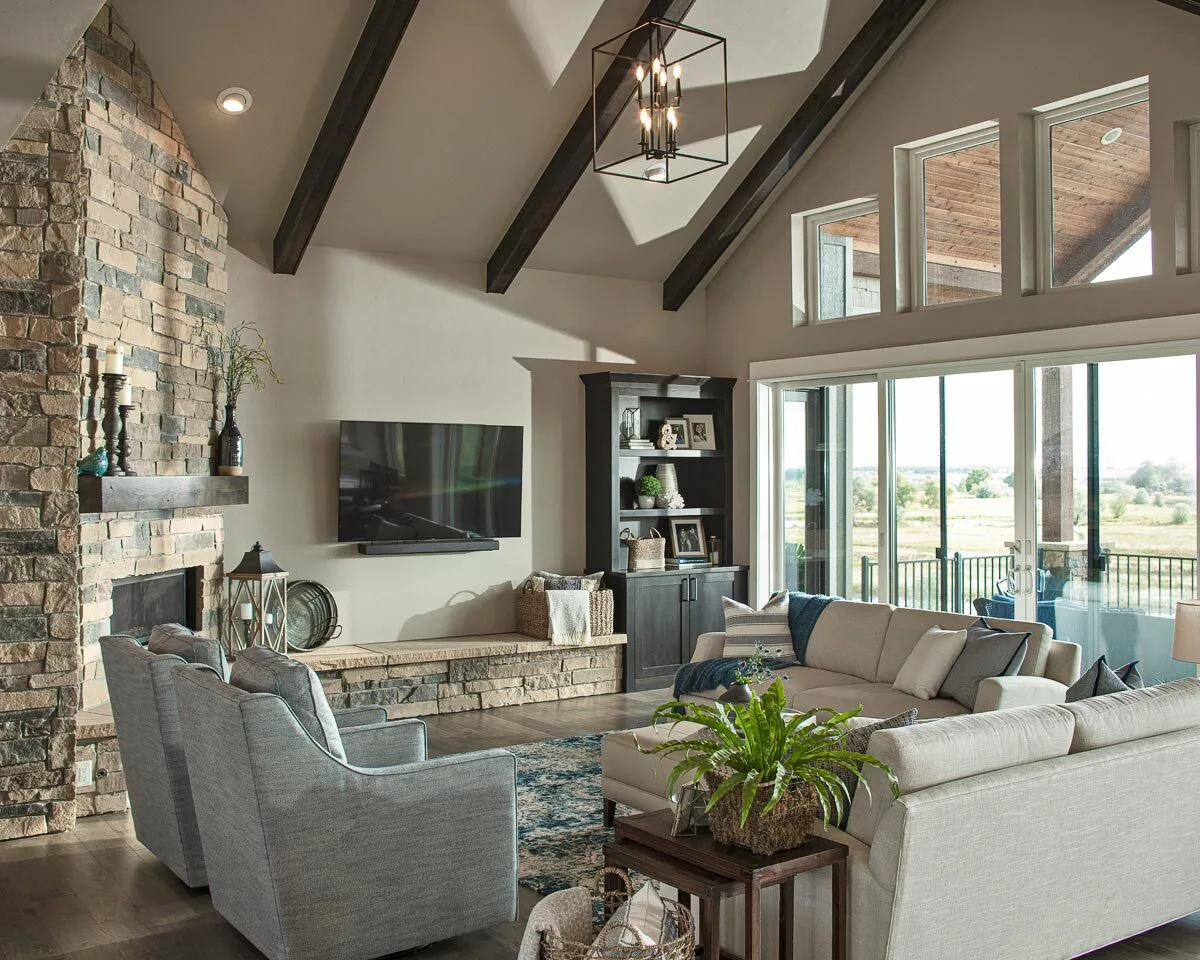

A modern look of a living area with a stone brick fireplace.

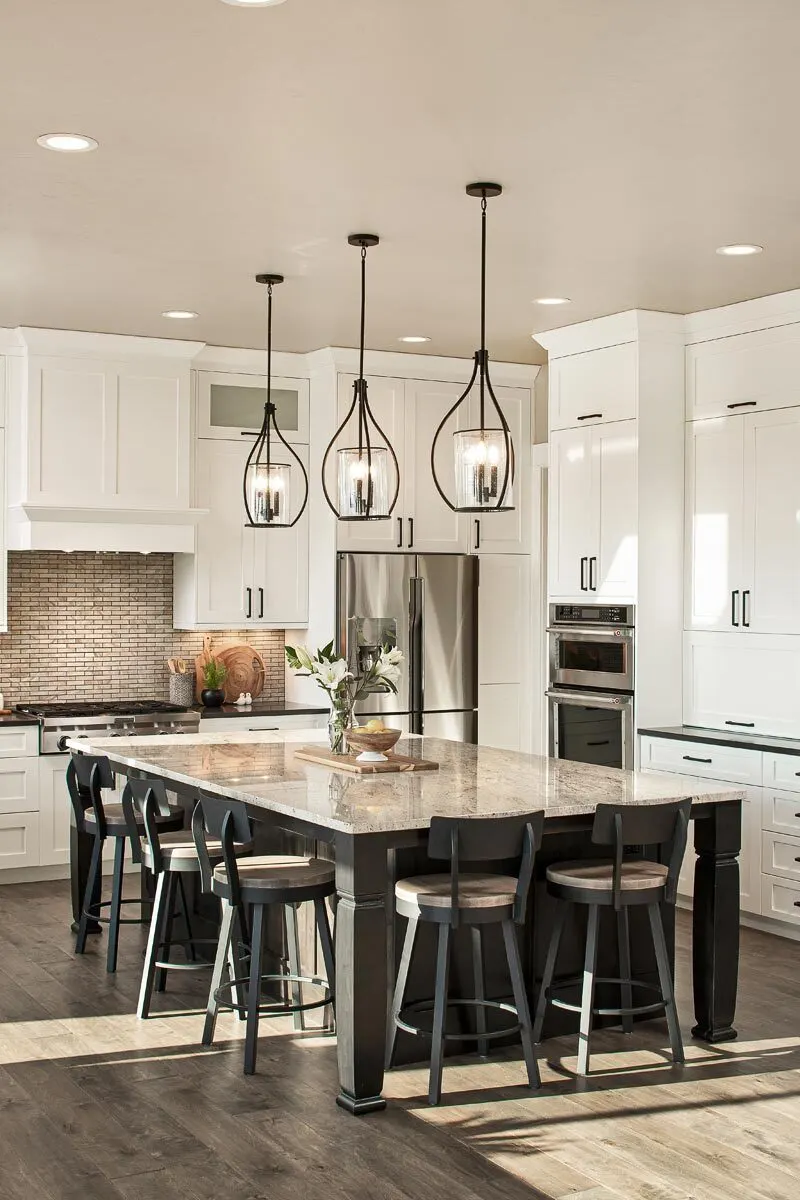

View of the kitchen area with a modern sleek style design.
A lovely black-toned table set with a chandelier over it.
An interior white kitchen with a visible brick-style wall near the stove.

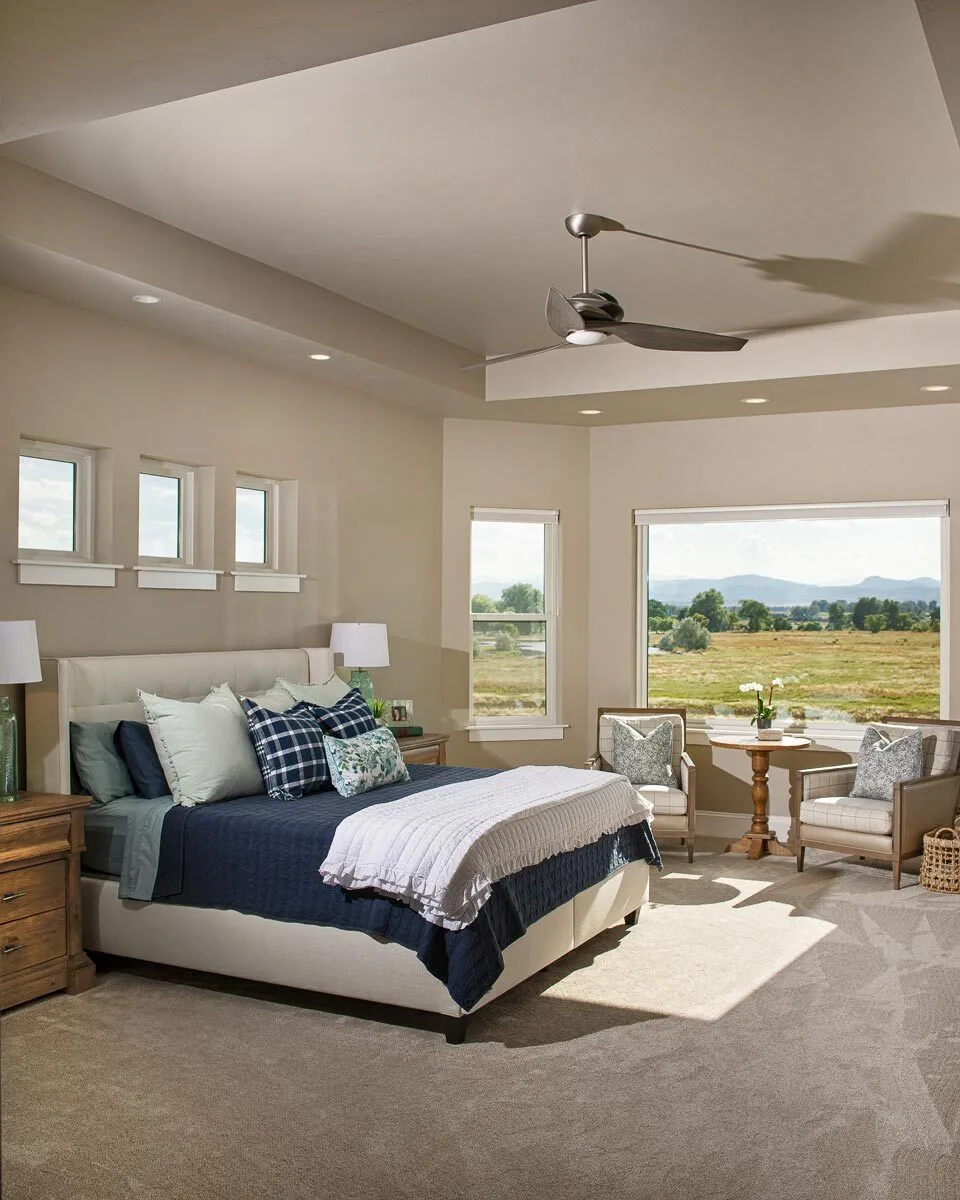

The master suite has a large room with windows for added lighting techniques.

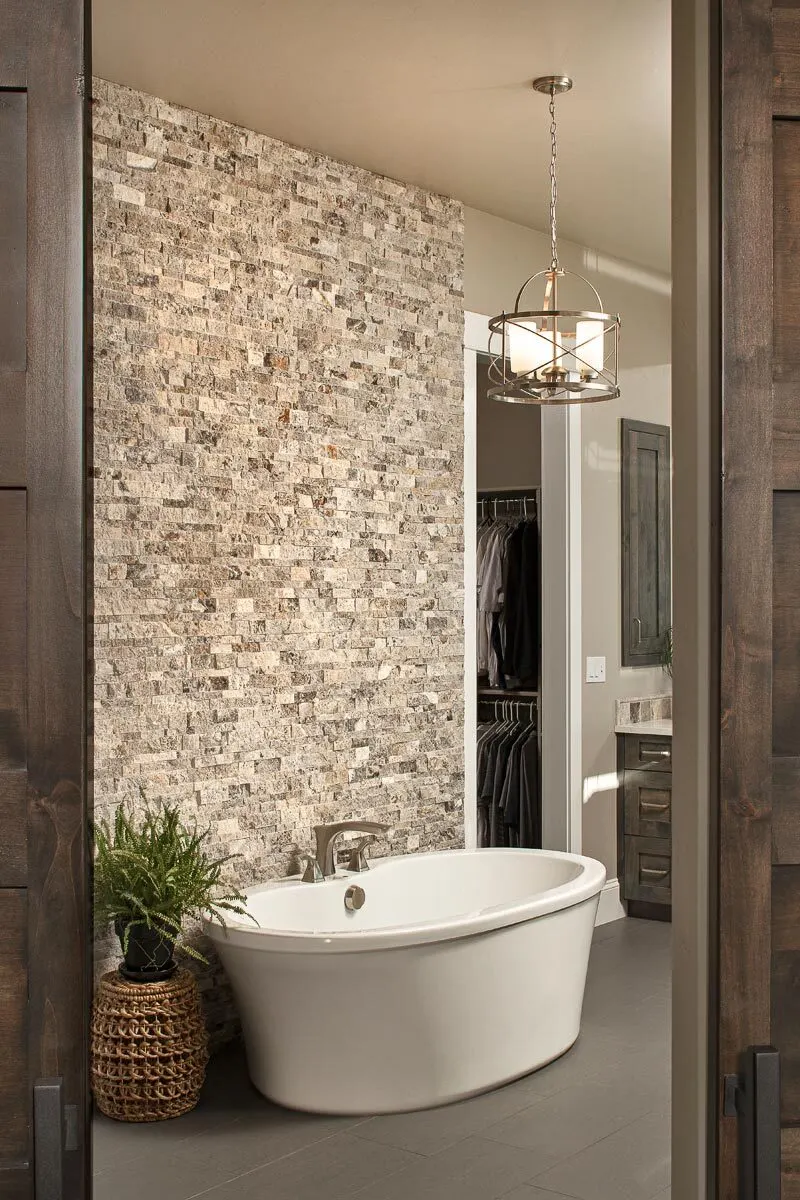

Behind the bathroom is a closet with a stone brick wall design.
A large bathroom with vanities and a private shower area.

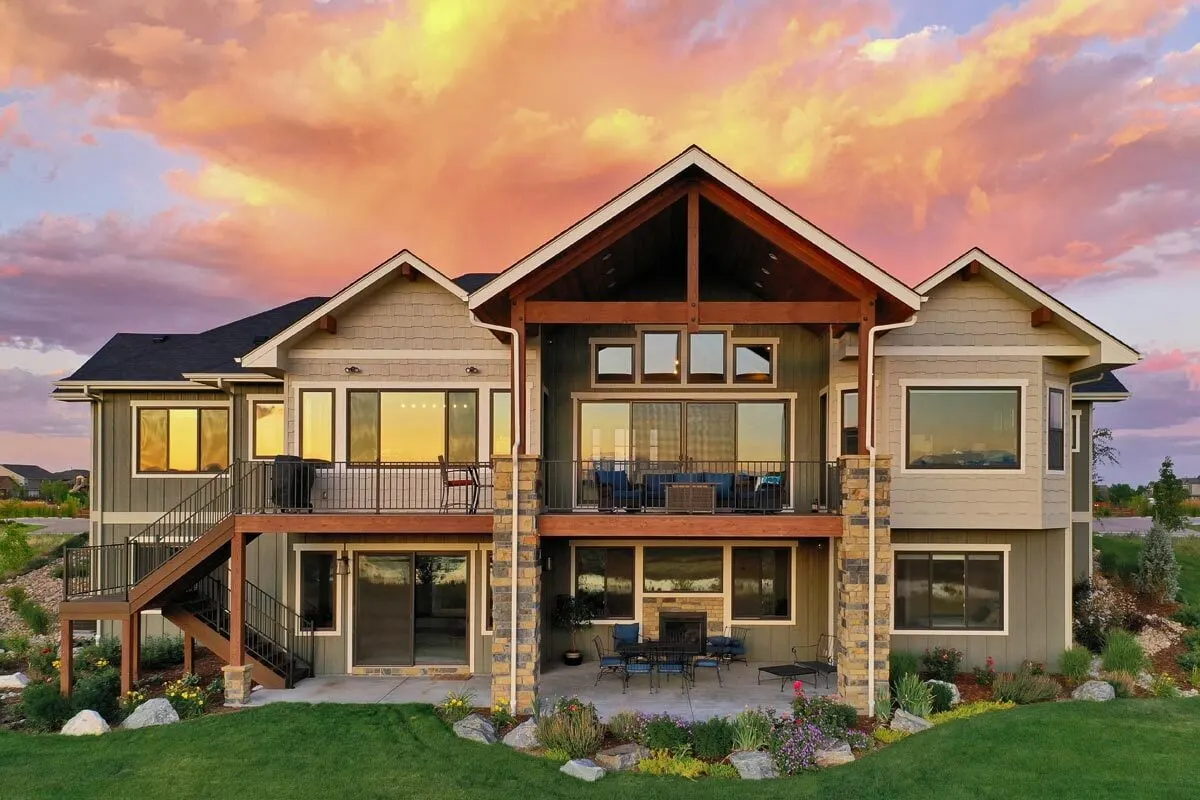

The back section of the home has a covered deck and stairs access to the gorgeous outdoors.

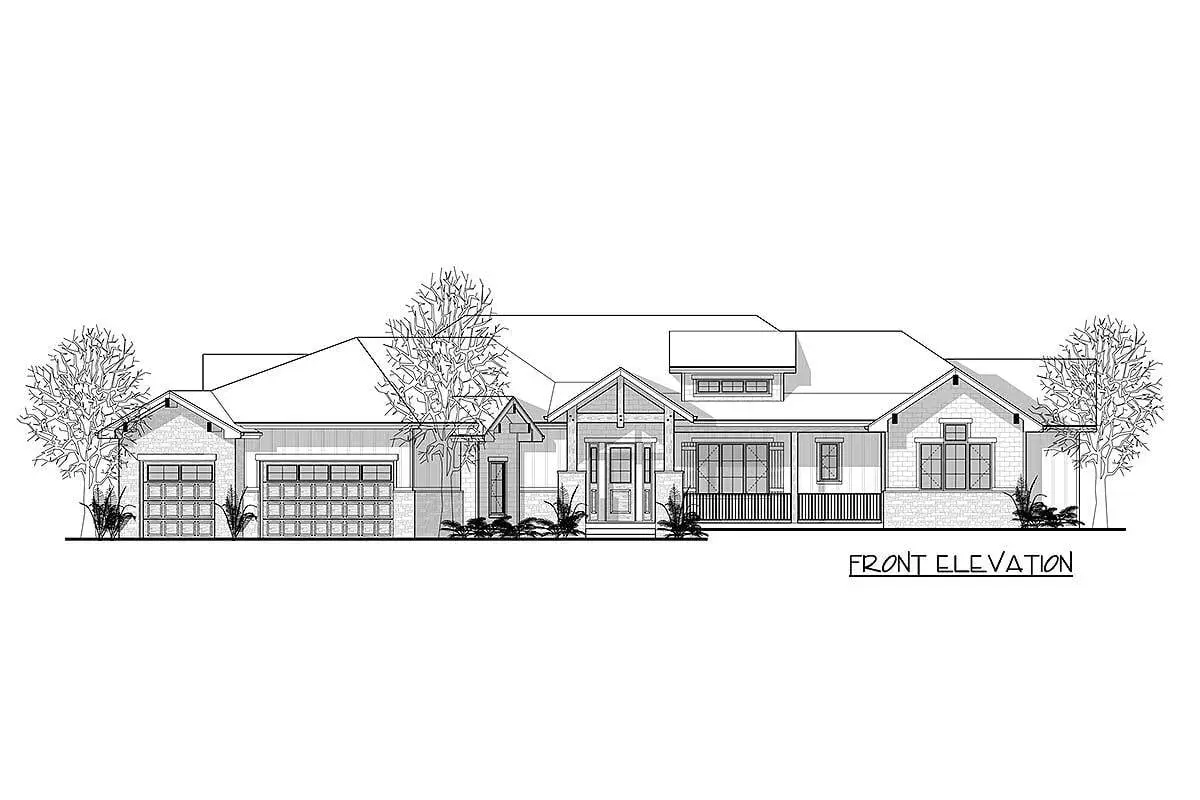

Front elevation drawing of the single-story, two-bedroom modern New American craftsman home.

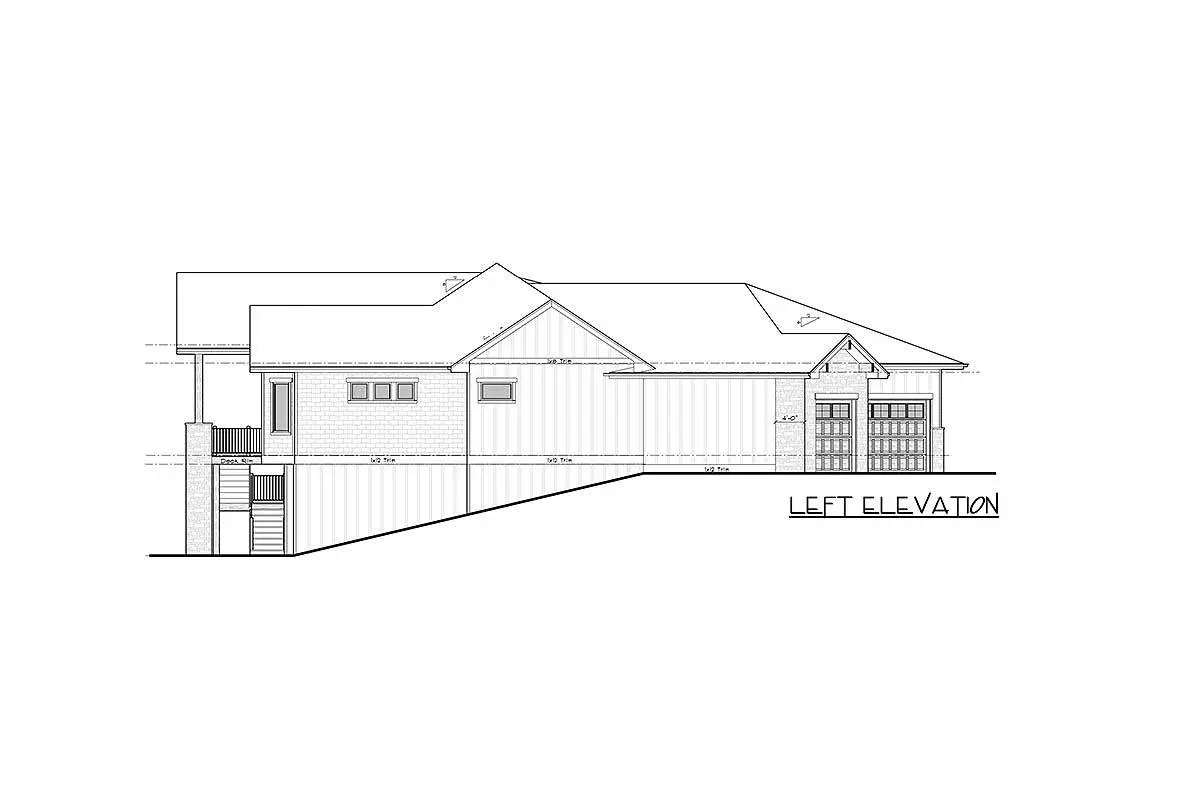

Left elevation drawing of the single-story, two-bedroom modern New American craftsman home.

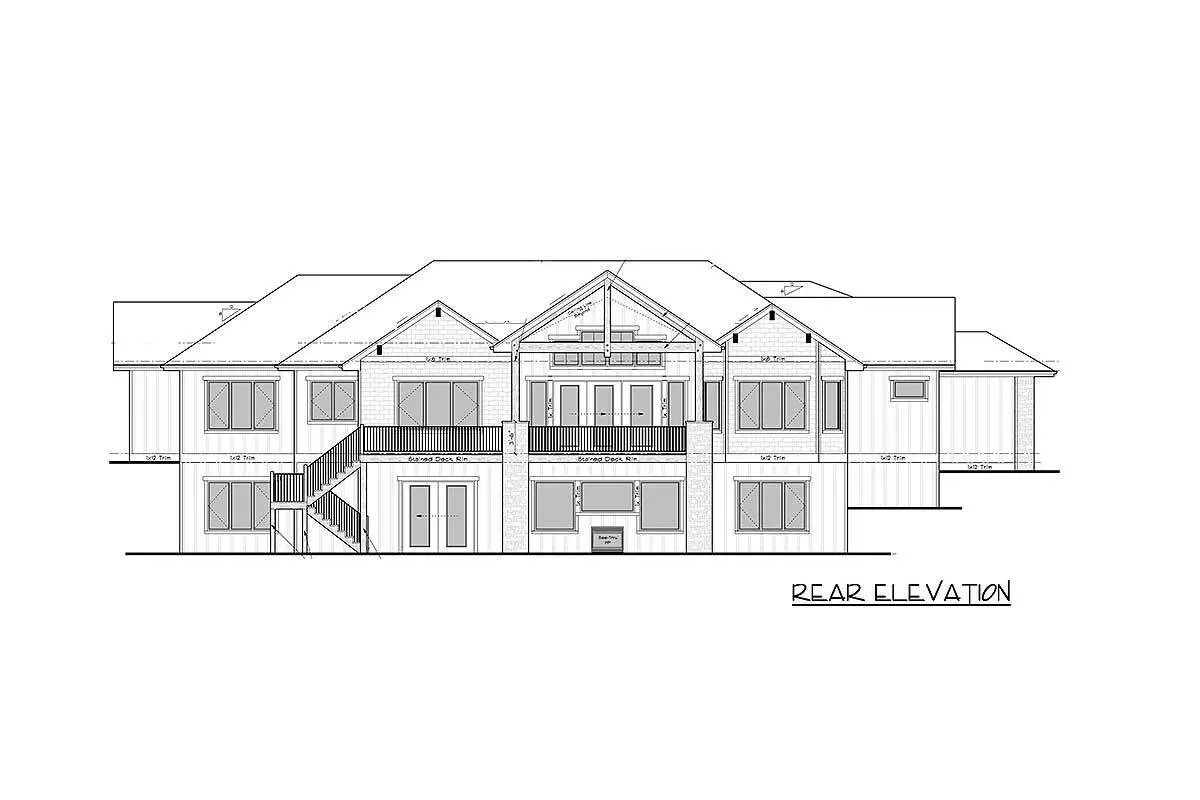

Rear elevation drawing of the single-story, two-bedroom modern New American craftsman home.

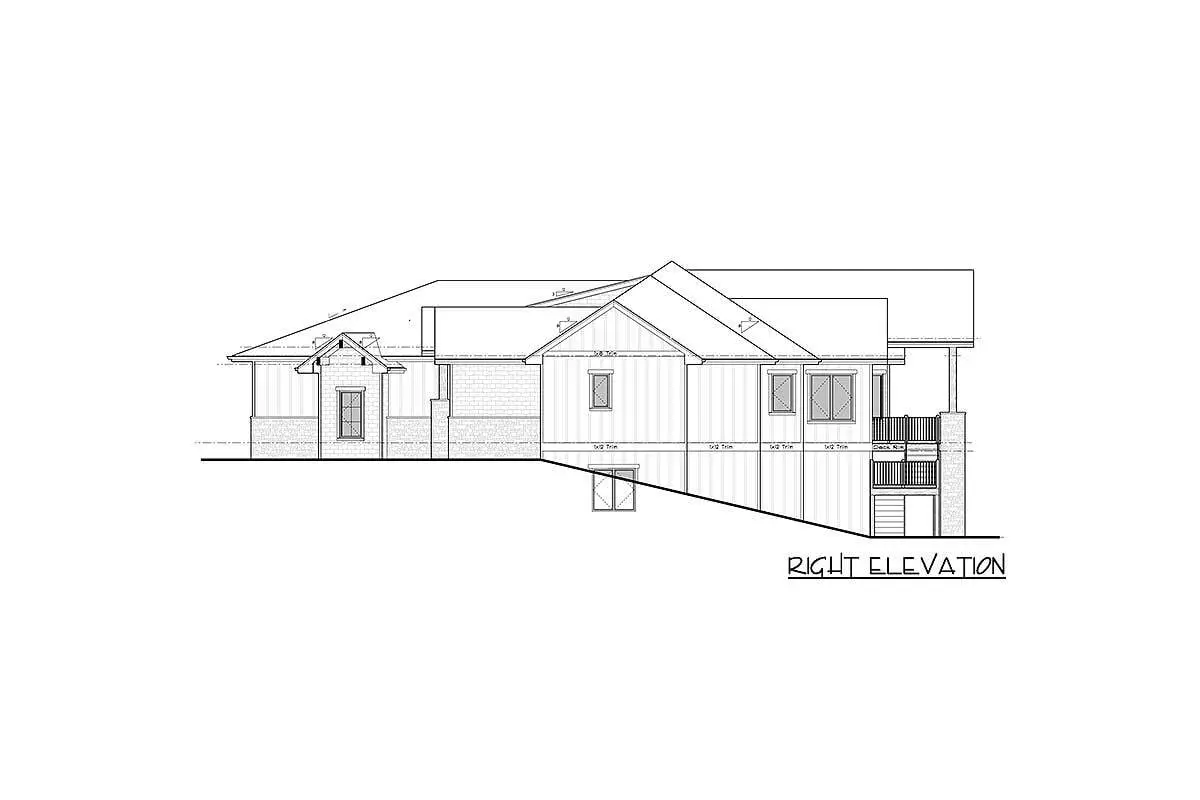

Right elevation drawing of the single-story, two-bedroom modern New American craftsman home.
Plan Details
Dimensions
| Width: | 98′ 0″ |
| Depth: | 81′ 2″ |
| Max ridge height: | 21′ 1″ |
Garage
| Type: | Attached |
| Area: | 881 sq. ft. |
| Count: | 3 Cars |
| Entry Location: | Side |
Ceiling Heights
| Lower Level / 10′ 0″ |
|
| First Floor / 10′ 0″ |
Roof Details
| Primary Pitch: | 6 on 12 |
| Secondary Pitch: | 8 on 12 |
Dimensions
| Width: | 98′ 0″ |
| Depth: | 81′ 2″ |
| Max ridge height: | 21′ 1″ |
Garage
| Type: | Attached |
| Area: | 881 sq. ft. |
| Count: | 3 Cars |
| Entry Location: | Side |
Ceiling Heights
| Lower Level / 10′ 0″ |
|
| First Floor / 10′ 0″ |
Roof Details
| Primary Pitch: | 6 on 12 |
| Secondary Pitch: | 8 on 12 |
View More Details About This Floor Plan
Plan 95093RW
This New American Craftsman home plan has a richly textured façade with an open gabled roof over the welcoming front porch. The open-concept living room is bright and airy, with easy access to the back-covered terrace for entertaining. The kitchen’s enormous island is flanked by cupboards, worktops, and appliances, while the neighboring dining area keeps the discussion going.
The 3-car garage protrudes at an angle from the front of the house, leading to a large mudroom and adjacent laundry room. The master suite is separated from the secondary bedrooms and has a 5-fixture bathroom that will make others jealous, as well as a large walk-in closet with an entrance to the laundry area. Finish the basement as planned to acquire 1,602 square feet of living space, including a leisure area and two-bedroom suites.
