2-Story 3-Bedroom New American Ranch with Split Bedroom Layout Plus Bonus and Lower Level Expansion (House Plan)

Learn more about the New American ranch, which features a split bedroom plan, a bonus room, and a lower-level addition in a modern and rustic exterior style.

2,175 3-5 2 3

Welcome to our house plans featuring a New American ranch with a split bedroom layout plus bonus and lower level expansion floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

Bonus Level

Optional Lower Level (+$250)

Additional Floor Plan Images

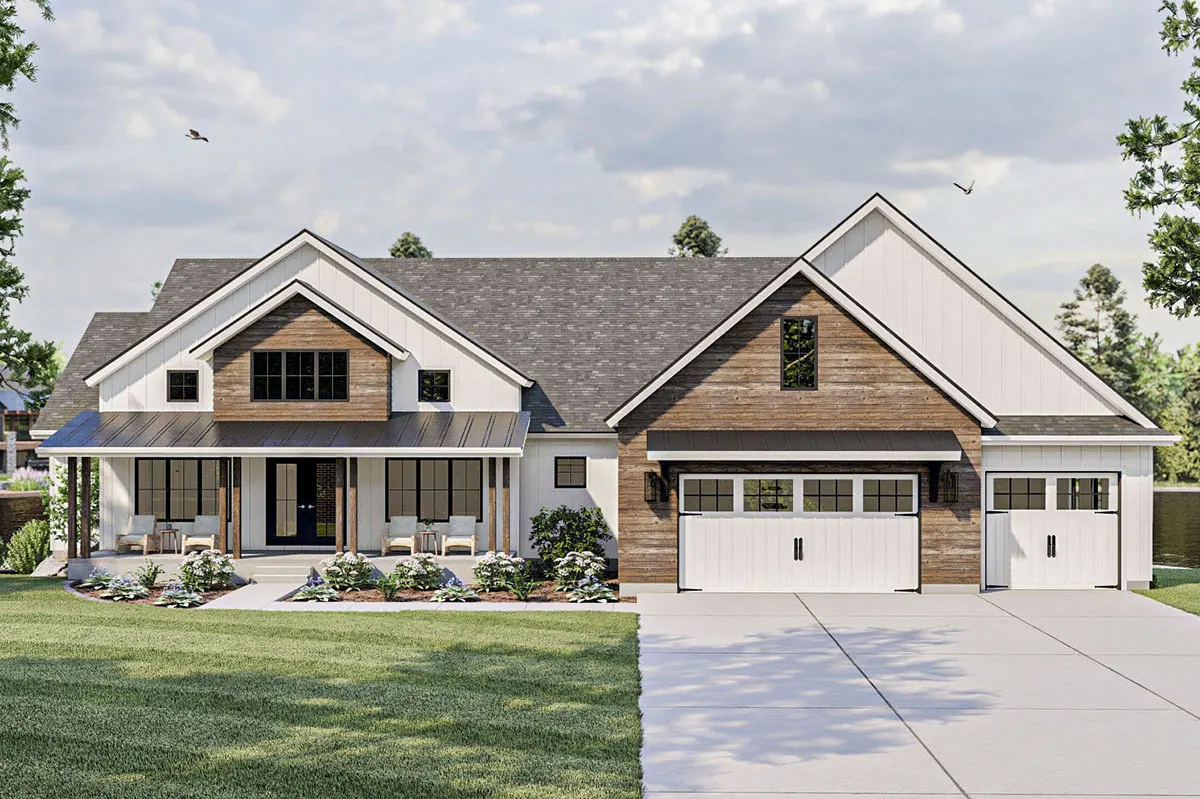

The house has a modern front aspect with a black and white painted façade and wooden accent walls.

The house has a modern front aspect with a black and white painted façade and wooden accent walls.

This ranch house is painted with dark exterior paint.

This ranch house is painted with dark exterior paint.

This house has a gorgeous white color door with a dark gray and green tone color exterior.

This house has a gorgeous white color door with a dark gray and green tone color exterior.

The front of the home has a large green yard and a driveway.

The front of the home has a large green yard and a driveway.

At the front of the porch, there is a lovely landscaped space.

At the front of the porch, there is a lovely landscaped space.

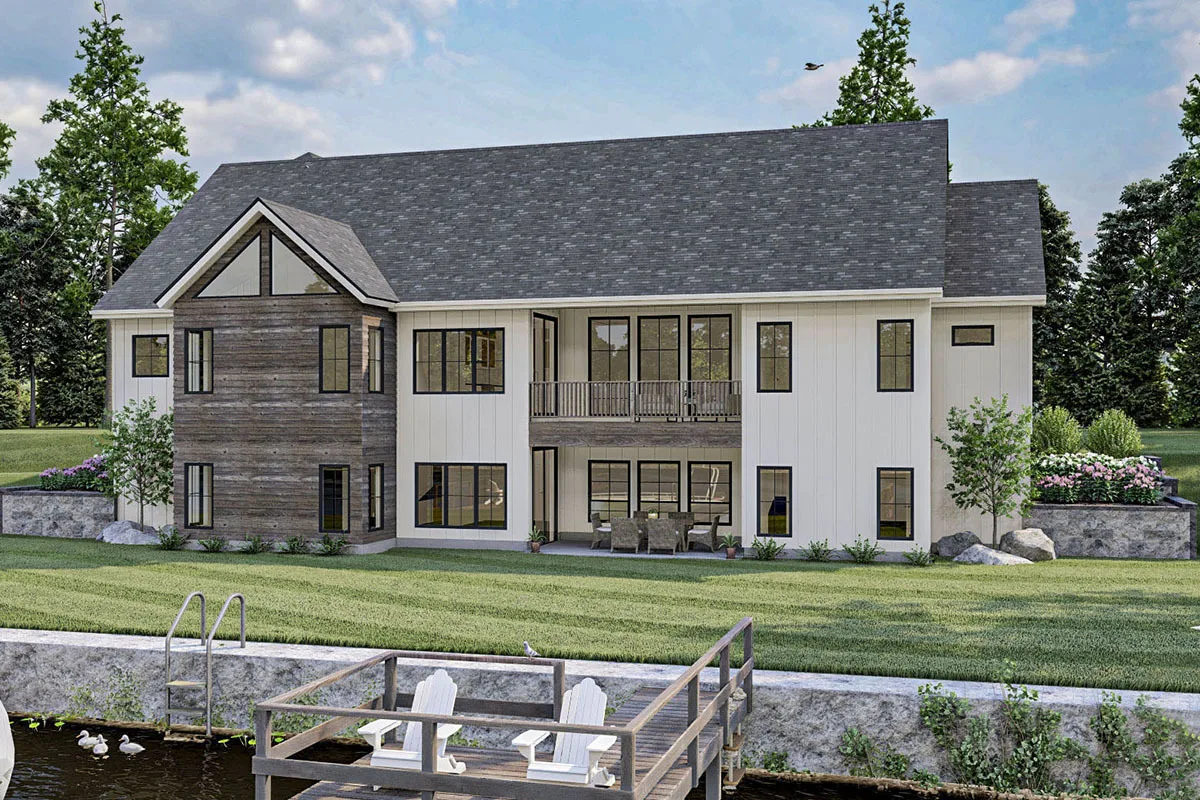

The exterior of the back part of the home is highlighted by large vertical glass windows.

The exterior of the back part of the home is highlighted by large vertical glass windows.

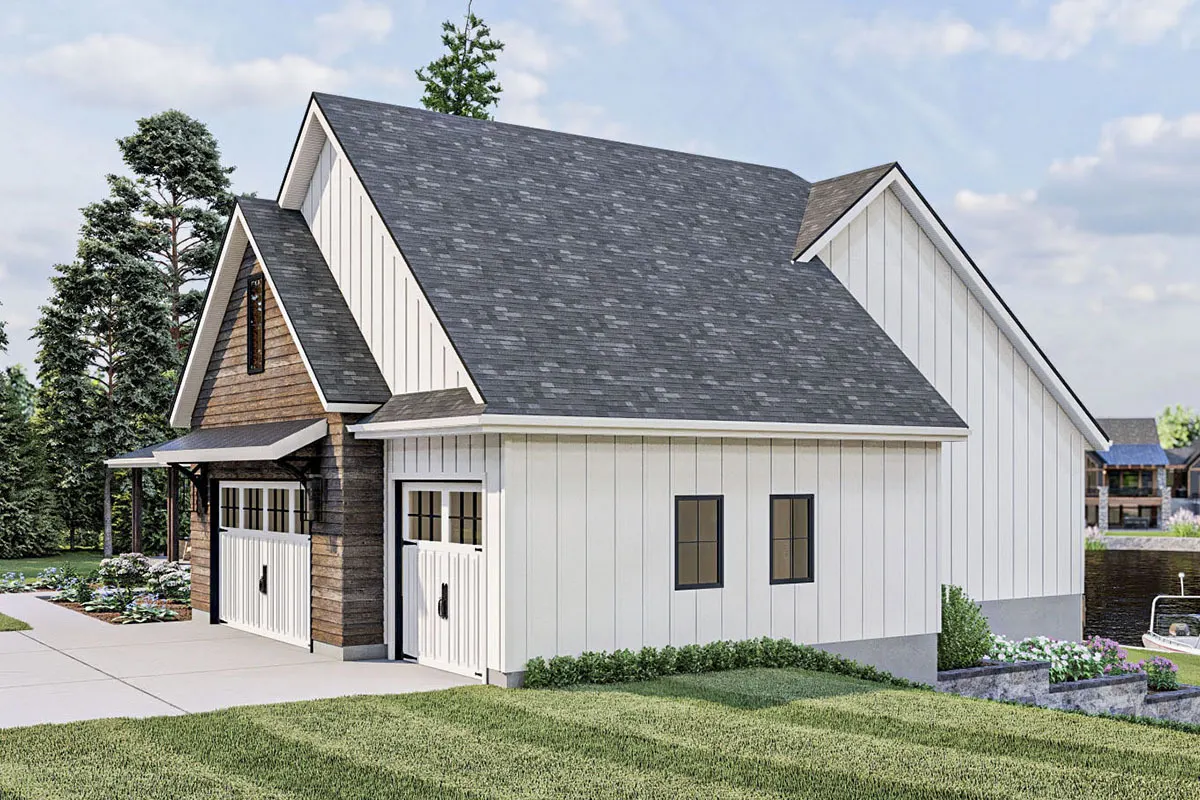

The house's garage has two white-painted doors.

The house’s garage has two white-painted doors.

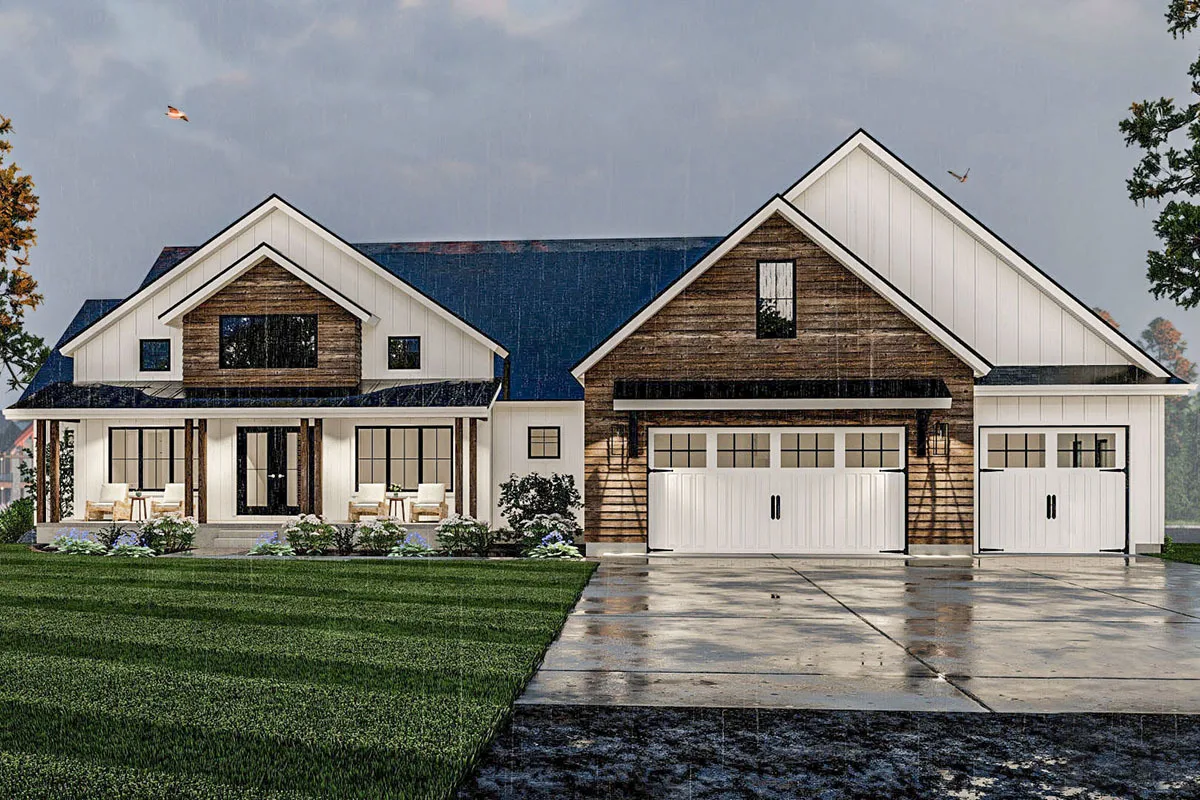

The view of the house in gloomy weather appears comfortable with the couches on the porch area.

The view of the house in gloomy weather appears comfortable with the couches on the porch area.

Plan Details

Dimensions

Width: 83′ 0″
Depth: 54′ 0″
Max ridge height: 27′ 0″

Garage

Type: Attached
Area: 831 sq. ft.
Count: 3 Cars
Entry Location: Front

Ceiling Heights

Lower Level /
9′ 0″
First Floor /
9′ 0″

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 8 on 12

Dimensions

Width: 83′ 0″
Depth: 54′ 0″
Max ridge height: 27′ 0″

Garage

Type: Attached
Area: 831 sq. ft.
Count: 3 Cars
Entry Location: Front

Ceiling Heights

Lower Level /
9′ 0″
First Floor /
9′ 0″

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 8 on 12

View More Details About This Floor Plan

Plan 62368DJ

This one-story house plan updates the conventional farmhouse architecture. The New American exterior combines board and batten siding with wood siding and wide windows to give the home a distinctive appearance. A beautiful home office with built-in storage sits just off the doorway. The great room, which is open to the kitchen and dining area, is also heated by a fireplace. The kitchen in the house has a wide island and a walk-in pantry.

Two bedrooms on the left of the house share a Jack and Jill bathroom. The spacious master suite is located across the house and features a towering cathedral ceiling. His and her vanities, a walk-in shower, an enclosed toilet area, and a walk-in closet with access to the laundry room are all included in the master bathroom. A big extra room over the garage would make an excellent home office or playroom for your children and adds 398 square feet to the total finished square footage when constructed.

This plan is also available with a completed basement add-on, which can be purchased from the Options menu. The completed basement adds 1,310 square feet to the home and includes an exercise room, a family room, and two finished bedrooms.
