Learn more about the architectural design of a single-story one-bedroom craftsman guest house with a vaulted living room that includes a lovely front porch.
Welcome to our house plans featuring a Single-Story One-Bedroom Craftsman Guest House with a Vaulted Living Room floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.
Floor Plan
Main Level
Additional Floor Plan Images
Front view of the craftsman guest house with a front porch with a wooden feature and a lovely garden.
Back view of the craftsman guest home, which includes a patio for additional outdoor enjoyment.

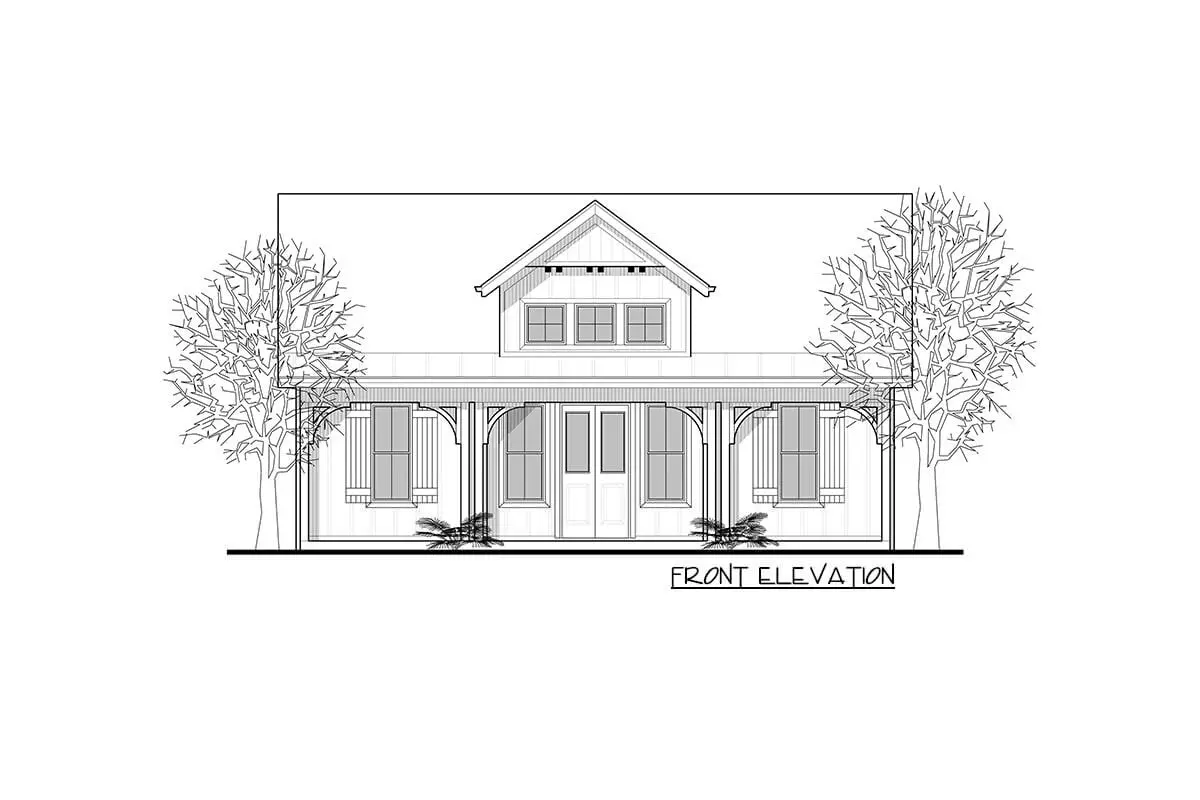

Front elevation sketch of the single-story 1-bedroom craftsman guest house.
Left elevation sketch of the single-story 1-bedroom craftsman guest house.
Rear elevation sketch of the single-story 1-bedroom craftsman guest house.
Right elevation sketch of the single-story 1-bedroom craftsman guest house.
Plan Details
Dimensions
| Width: | 35′ 6″ |
| Depth: | 45′ 0″ |
| Max ridge height: | 20′ 7″ |
Ceiling Heights
| First Floor / 10′ 0″ |
Roof Details
| Primary Pitch: | 8 on 12 |
| Secondary Pitch: | 10 on 12 |
| Framing Type: | Truss |
Exterior Walls
| Standard Type(s): | 2×6 |
Dimensions
| Width: | 35′ 6″ |
| Depth: | 45′ 0″ |
| Max ridge height: | 20′ 7″ |
Ceiling Heights
| First Floor / 10′ 0″ |
Roof Details
| Primary Pitch: | 8 on 12 |
| Secondary Pitch: | 10 on 12 |
| Framing Type: | Truss |
View More Details About This Floor Plan
Plan 95146RW
On this one-bed Craftsman guest house plan, a big dormer is centered above the 6′-deep – 14′-deep when the recessed covered entry is included. It can be used as an ADU, a downsized house, or an income-generating AirBnB. French doors lead into the living room, which has an 8:12 pitch vaulted ceiling. Sliding doors on the rear wall lead to a covered patio, and the area is open to the kitchen, which features a huge island.
The bedroom has a vaulted ceiling (8:12 pitch) and sliding doors to the back patio, as well as a walk-in closet accessible through the bathroom. The laundry room is located across the house.
