Find out more about the garage with a side-sloping roof and storage area design plan. See the exterior paint in a gray shade hue.
Welcome to our house plans featuring a single-story garage floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.
Floor Plan

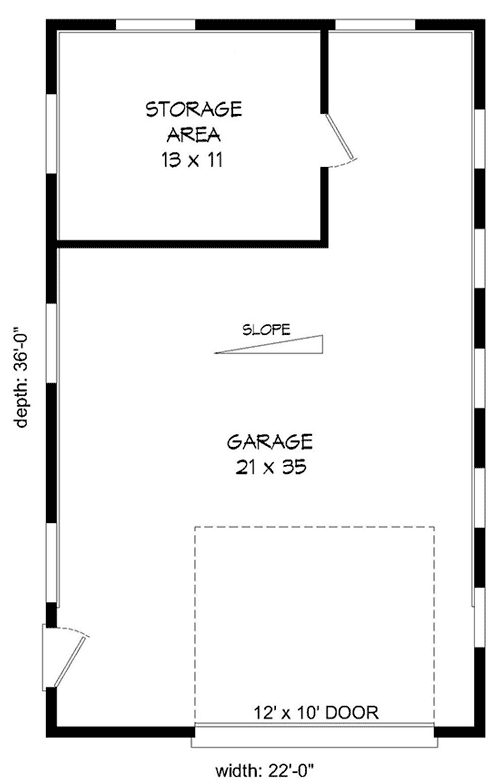

Main Level
Additional Floor Plan Images
Front elevation sketch of the single-story garage with a sloping roof.

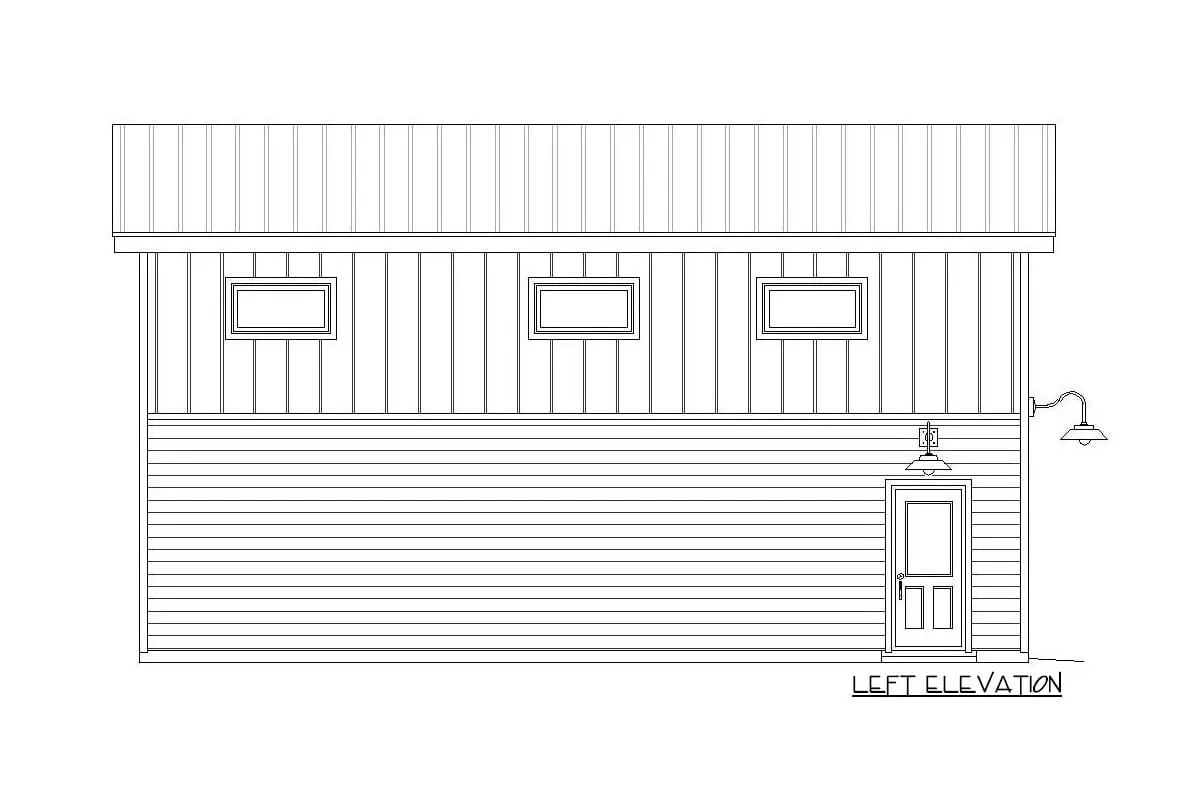

Left elevation sketch of the single-story garage with a sloping roof.
Rear elevation sketch of the single-story garage with a sloping roof.

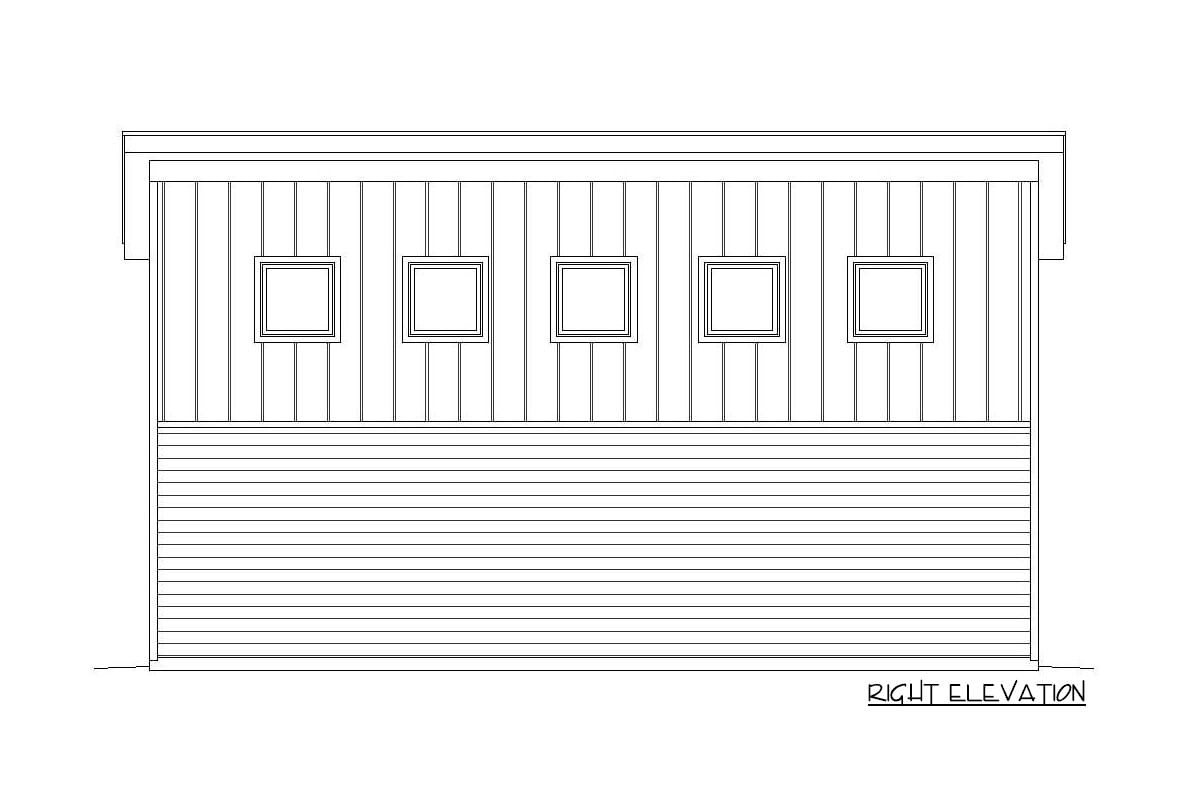

Right elevation sketch of the single-story garage with a sloping roof.
Plan Details
Dimensions
| Width: | 22′ 0″ |
| Depth: | 36′ 0″ |
| Max ridge height: | 21′ 4″ |
Garage
| Type: | Detached |
| Area: | 650 sq. ft. |
| Count: | 2 Cars |
Roof Details
| Primary Pitch: | 2 on 12 |
| Framing Type: | Stick |
Exterior Walls
| Standard Type(s): | 2×6 |
Dimensions
| Width: | 22′ 0″ |
| Depth: | 36′ 0″ |
| Max ridge height: | 21′ 4″ |
Garage
| Type: | Detached |
| Area: | 650 sq. ft. |
| Count: | 2 Cars |
Roof Details
| Primary Pitch: | 2 on 12 |
| Framing Type: | Stick |
View More Details About This Floor Plan
Plan 68595VR
Larger automobiles can fit inside this contemporary detached garage layout thanks to a 12′ by 10′ garage door. Designated storage space is a good addition. It looks fantastic because of the roof’s right-to-left slope.
Related Plan: A larger version with a garage plan is available 68524VR.
