Learn more about this single-story, three-bedroom New American ranch with front garage space for convenient parking and a lovely interior design.
Welcome to our house plans featuring a Single-Story 3-Bedroom New American Ranch with a Front Garage floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.
Floor Plan
Main Level
Main Level with Basement Option
Front Entry Garage Option (+$195)
Additional Floor Plan Images
The two-toned, modern ranch house with a streamlined style at the front.
The ranch house’s straight-lined doors and windows give it a solid appearance.
Ranch-style home with the garage located on the other side.
house with a stunning exterior painted in white and gray.” class=”wp-image-12866″ title=”white and gray painted ranch house”/>A recently constructed ranch house with a stunning exterior painted in white and gray.
A ranch home with a vertical entrance and window appears convenient and attractive.
house with a wooden accent entrance and pillars.” class=”wp-image-12866″ title=”wooden accent entrance and pillars”/>View of a ranch house with a wooden accent entrance and pillars.
The single-story 3-bedroom New American ranch house’s front elevation drawing.
The single-story 3-bedroom New American ranch house’s left elevation drawing.
The single-story 3-bedroom New American ranch house’s rear elevation drawing.
The single-story 3-bedroom New American ranch house’s right elevation drawing.
The single-story 3-bedroom New American ranch house’s front-entry garage option drawing.
The single-story 3-bedroom New American ranch house’s front-entry garage option – left elevation drawing.
Plan Details
Dimensions
| Width: | 52′ 4″ |
| Depth: | 47′ 10″ |
Garage
| Type: | Attached |
| Area: | 545 sq. ft. |
| Count: | 2 Cars |
| Entry Location: | Front, Side |
Ceiling Heights
| Lower Level / 9′ 4″ |
|
| First Floor / 9′ 0″ |
Roof Details
| Primary Pitch: | 8 on 12 |
| Secondary Pitch: | 9 on 12 |
| Framing Type: | Stick |
Dimensions
| Width: | 52′ 4″ |
| Depth: | 47′ 10″ |
Garage
| Type: | Attached |
| Area: | 545 sq. ft. |
| Count: | 2 Cars |
| Entry Location: | Front, Side |
Ceiling Heights
| Lower Level / 9′ 4″ |
|
| First Floor / 9′ 0″ |
Roof Details
| Primary Pitch: | 8 on 12 |
| Secondary Pitch: | 9 on 12 |
| Framing Type: | Stick |
View More Details About This Floor Plan
Plan 51811HZ

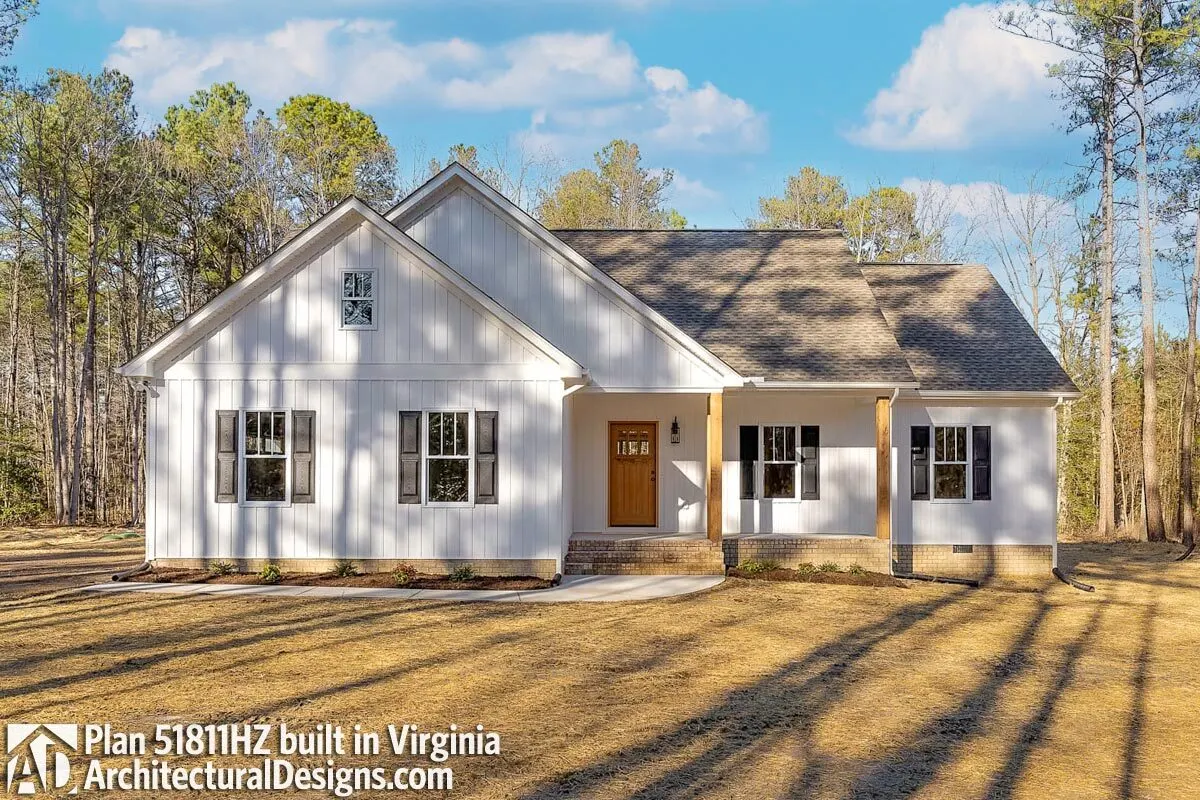

This 3-bed New American ranch home plan welcomes you with board and batten and two timber accents on the front porch. You are greeted by French doors as you enter the great room, which has an 11′ tray ceiling.
A divided bedroom design makes the middle of the house available for socializing with friends and family. You have a workspace and informal sitting at the counter side of the kitchen island. You enter the covered porch in the back through a sliding door. Near the family entrance off the garage is where the laundry is.
Related Plan: With house plan 51826HZ, relocate the kitchen to the back of the house for greater space (1,512 sq. ft.).
