Single-Story 3-Bedroom New American Ranch Plan with Pocket Office and Split-bed Layout (House Plan)

Find out more about the new American ranch plan features a pocket office and a split-bed layout. See the external façade, with glass windows.

2,176 3-4 1 3

Welcome to our house plans featuring a single-story 3-bedroom new American ranch plan with pocket office and split-bed layout floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

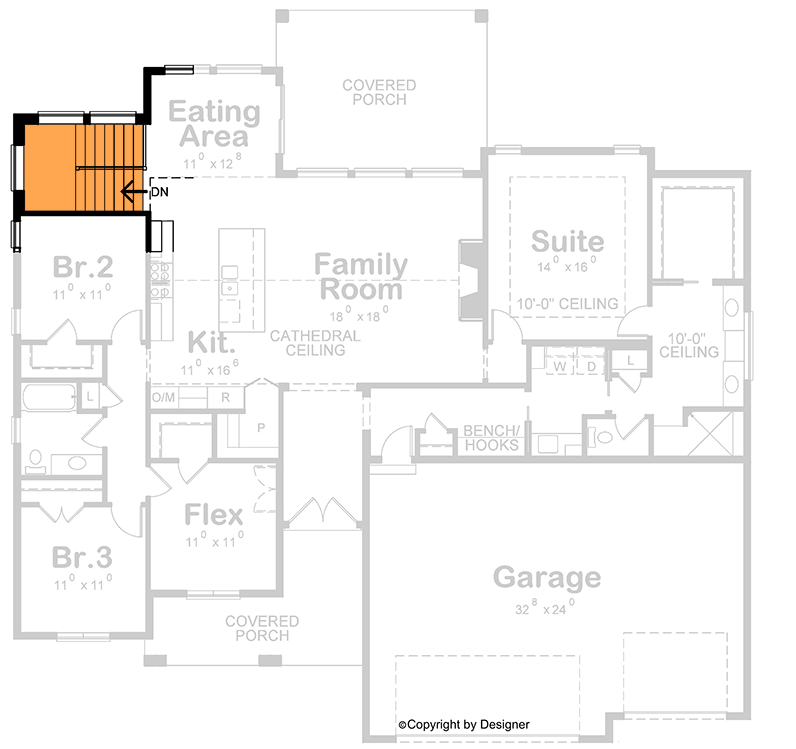

Main Level – Basement Stairs Location

Additional Floor Plan Images

A home with a contemporary style plus black and white exterior paint.

A home with a contemporary style plus black and white exterior paint.

The sketch shows the left elevation of the single-story 3-bedroom modern American ranch layout.

The sketch shows the left elevation of the single-story 3-bedroom modern American ranch layout.

The sketch shows the rear elevation of the single-story 3-bedroom modern American ranch layout.

The sketch shows the rear elevation of the single-story 3-bedroom modern American ranch layout.

The sketch shows the right elevation of the single-story 3-bedroom modern American ranch layout.

The sketch shows the right elevation of the single-story 3-bedroom modern American ranch layout.

Plan Details

Dimensions

Width: 64′ 4″
Depth: 63′ 8″
Max ridge height: 24′ 0″

Garage

Type: Attached
Area: 792 sq. ft.
Count: 3 Cars
Entry Location: Front

Ceiling Heights

First Floor /
10′ 0″

Roof Details

Primary Pitch: 6 on 12
Secondary Pitch: 16 on 12

Dimensions

Width: 64′ 4″
Depth: 63′ 8″
Max ridge height: 24′ 0″

Garage

Type: Attached
Area: 792 sq. ft.
Count: 3 Cars
Entry Location: Front

Ceiling Heights

First Floor /
10′ 0″

Roof Details

Primary Pitch: 6 on 12
Secondary Pitch: 16 on 12

View More Details About This Floor Plan

Plan 42106DB

The outside of this New American Ranch is modernized with metal roof accents and flat rain awnings.
A cathedral ceiling lends a coherent aspect to this home’s family area, which connects to the kitchen in the middle. The eating space protrudes from the back elevation and leads to a 251-square-foot porch.

The principal suite, which is separated from the secondary bedrooms for seclusion, has a walk-in closet and a 4-fixture ensuite with a shortcut to the laundry area. A large bath separates two family bedrooms on the left side of the house. A flex space is located across the hall, and a tiny office off the kitchen offers natural light.

The garage faces forward to take advantage of smaller lots and leads into a mudroom with a coat closet and built-in bench.

Related Plan: With house plan 42105DB, you can get a different exterior.
