Single-Story 3-Bedroom New American Ranch House with Board and Batten Siding (House Plan)

Learn more about the exterior board and batten siding of the New American ranch home. Take a glance at the front porch and stoop in the high ceiling.

2,330 3 1 2

Welcome to our house plans featuring a single-story 3-bedroom New American ranch house floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

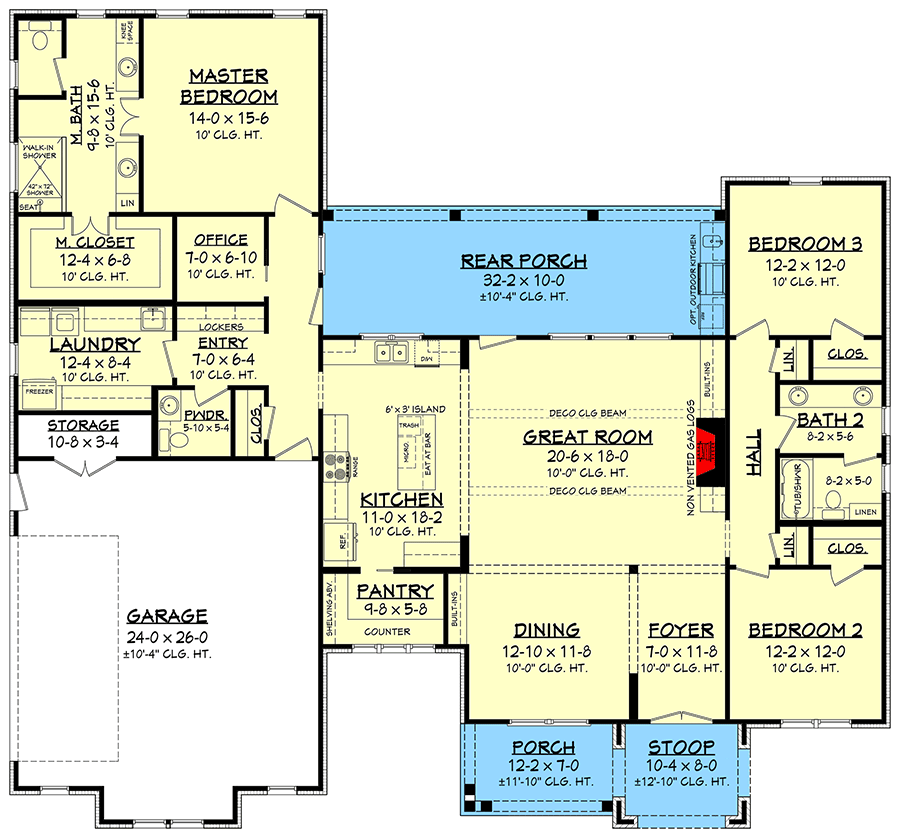

Main Level

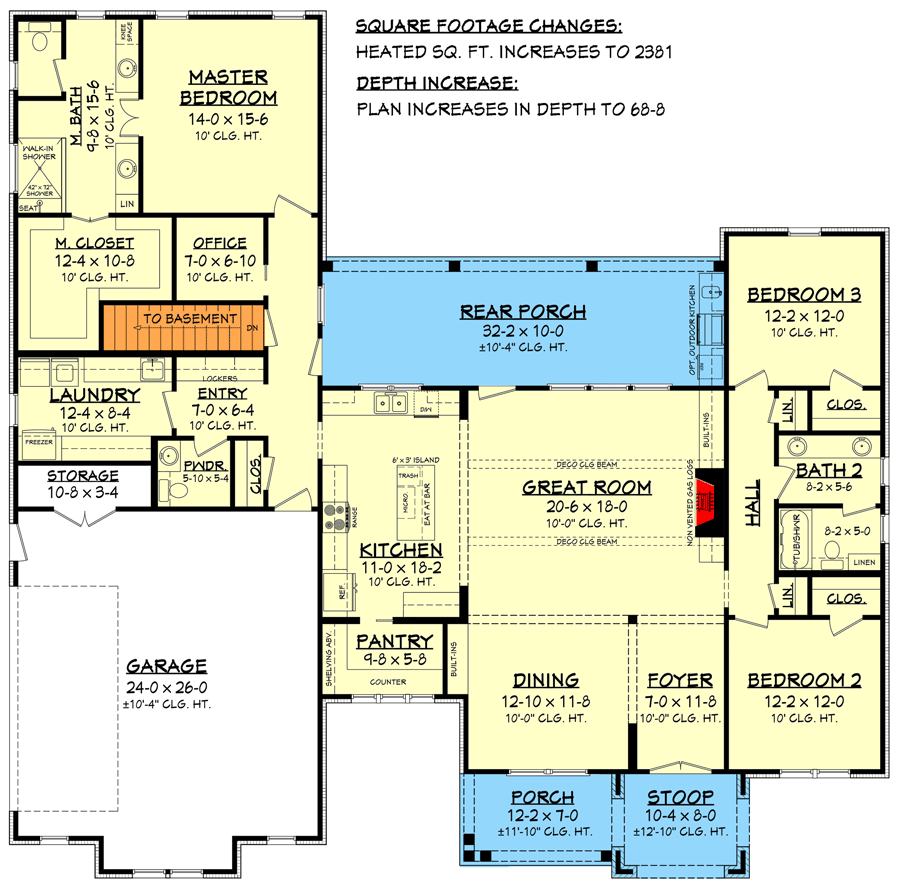

Basement Stair Location

Additional Floor Plan Images

Ranch-style home with <a href=board and batten siding from the front exterior.” class=”wp-image-12866″ title=”Ranch-style home exterior”/>

Ranch-style home with board and batten siding from the front exterior.

View of the ranch home at night with its big and beautiful front yard.

View of the ranch home at night with its big and beautiful front yard.

Sketch of the single-story, three-bedroom New American ranch home's front elevation.

Sketch of the single-story, three-bedroom New American ranch home’s front elevation.

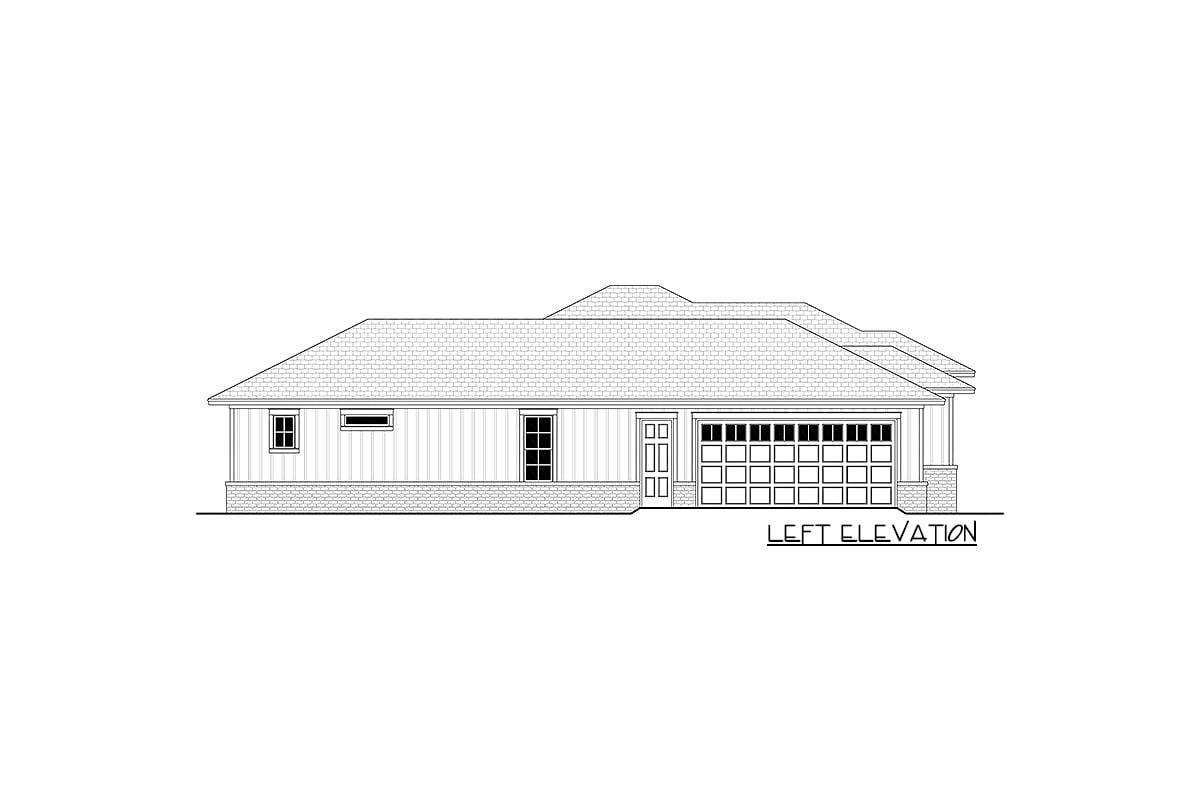

Sketch of the single-story, three-bedroom New American ranch home's left elevation.

Sketch of the single-story, three-bedroom New American ranch home’s left elevation.

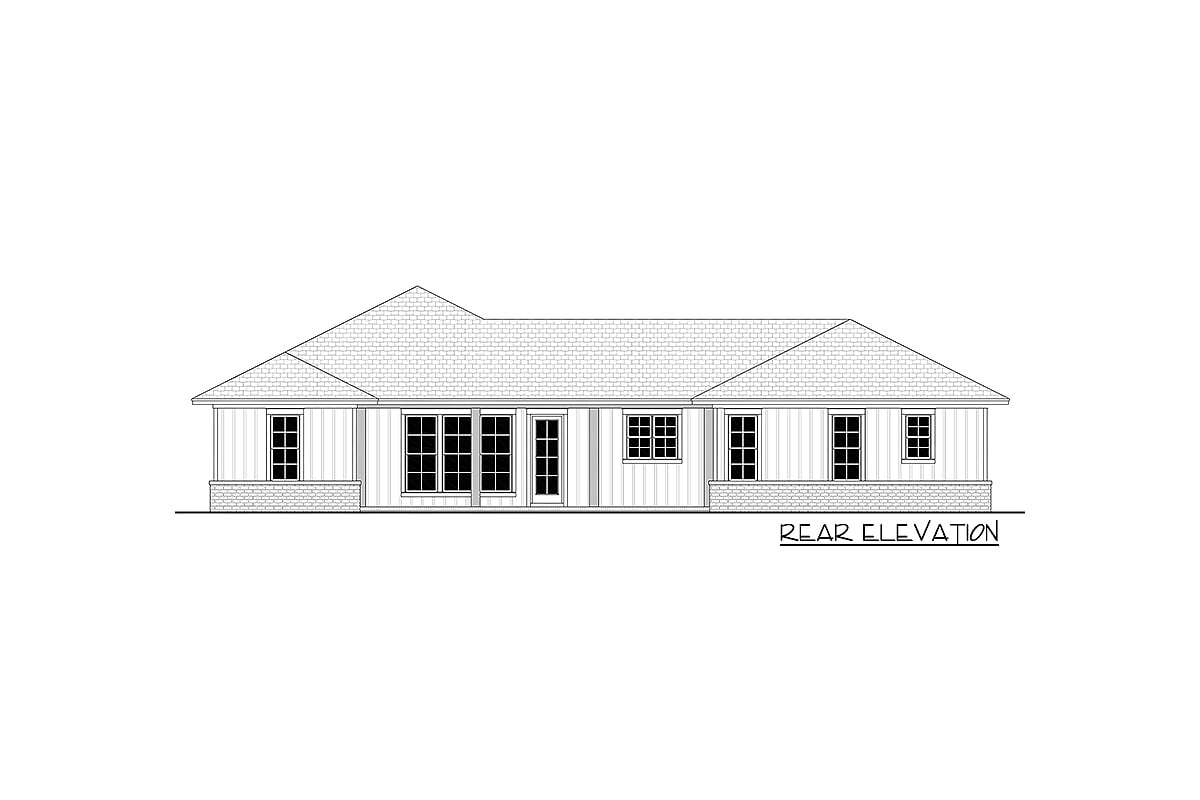

Sketch of the single-story, three-bedroom New American ranch home's rear elevation.

Sketch of the single-story, three-bedroom New American ranch home’s rear elevation.

Sketch of the single-story, three-bedroom New American ranch home's right elevation.

Sketch of the single-story, three-bedroom New American ranch home’s right elevation.

Plan Details

Dimensions

Width: 69′ 8″
Depth: 64′ 8″
Max ridge height: 20′ 0″

Garage

Type: Attached
Area: 674 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Lower Level /
9′ 4″
First Floor /
10′ 0″

Roof Details

Primary Pitch: 6 on 12
Secondary Pitch: 3.75 on 12
Framing Type: Stick

Dimensions

Width: 69′ 8″
Depth: 64′ 8″
Max ridge height: 20′ 0″

Garage

Type: Attached
Area: 674 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Lower Level /
9′ 4″
First Floor /
10′ 0″

Roof Details

Primary Pitch: 6 on 12
Secondary Pitch: 3.75 on 12
Framing Type: Stick

View More Details About This Floor Plan

Plan 51820HZ

With broad Usonian eaves, wood details, board and batten siding, and a charming façade, this lovely New American home plan offers one-story living. It works in all regions of the nation and is available on slab, crawl, and basement choices. The great room is connected to the kitchen and dining area inside, creating an open floor concept. You may access the spacious back porch with an optional outdoor kitchen through a door on the rear wall.

A 6 by 3-foot island in the kitchen features bar seating on one side and a sink on the other. Groceries carried in from the garage entry around the corner, just feet away, can be placed in a sizable walk-in pantry that can be concealed behind a pocket door. The master suite, which has a five-fixture bathroom and a spacious walk-in closet, is quietly situated behind the little office on the left. The home’s other two bedrooms share a bathroom.
