Single-Story 3-Bedroom New American House Plan with Clustered Bedrooms (House Plan)

Find out more about the architecture of the contemporary American house plan with clustered bedrooms. Featuring a wide yard and a three-car front garage.

1,552 3 1 2-3

Welcome to our house plans featuring a single-story 3-bedroom new American house plan with clustered bedrooms floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

Optional 3-Car Garage

Additional Floor Plan Images

The porch and garden area are visible in the peaceful front vista of the new American home.

The porch and garden area are visible in the peaceful front vista of the new American home.

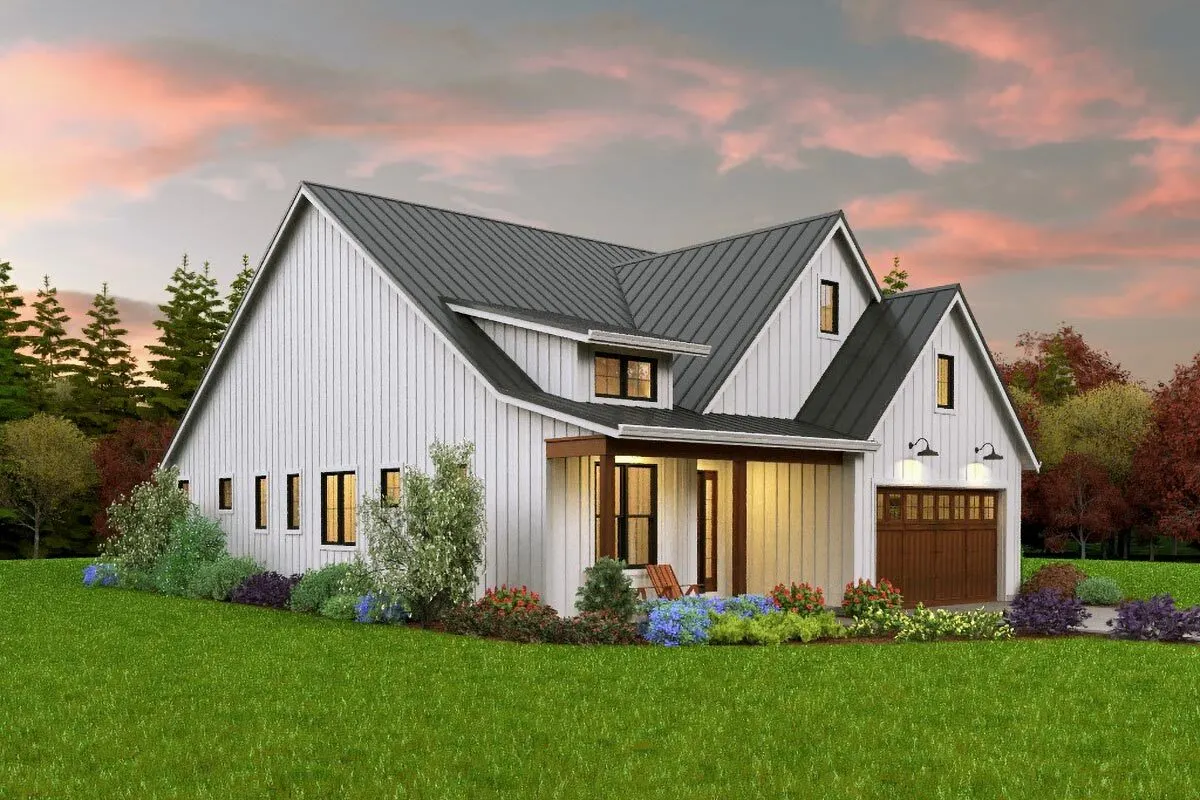

An expansive grassy yard surrounds the house in the left-front view.

An expansive grassy yard surrounds the house in the left-front view.

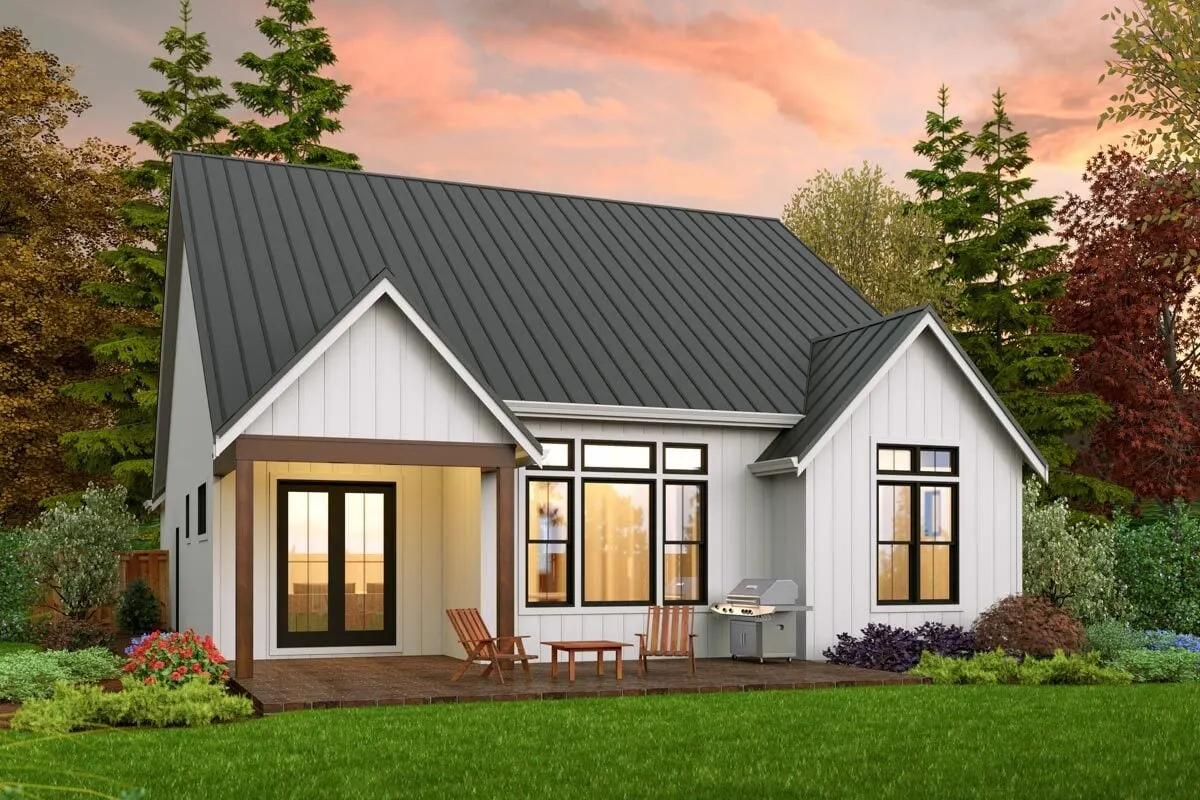

Back picture of the home showing an outdoor living area with a charming appeal.

Back picture of the home showing an outdoor living area with a charming appeal.

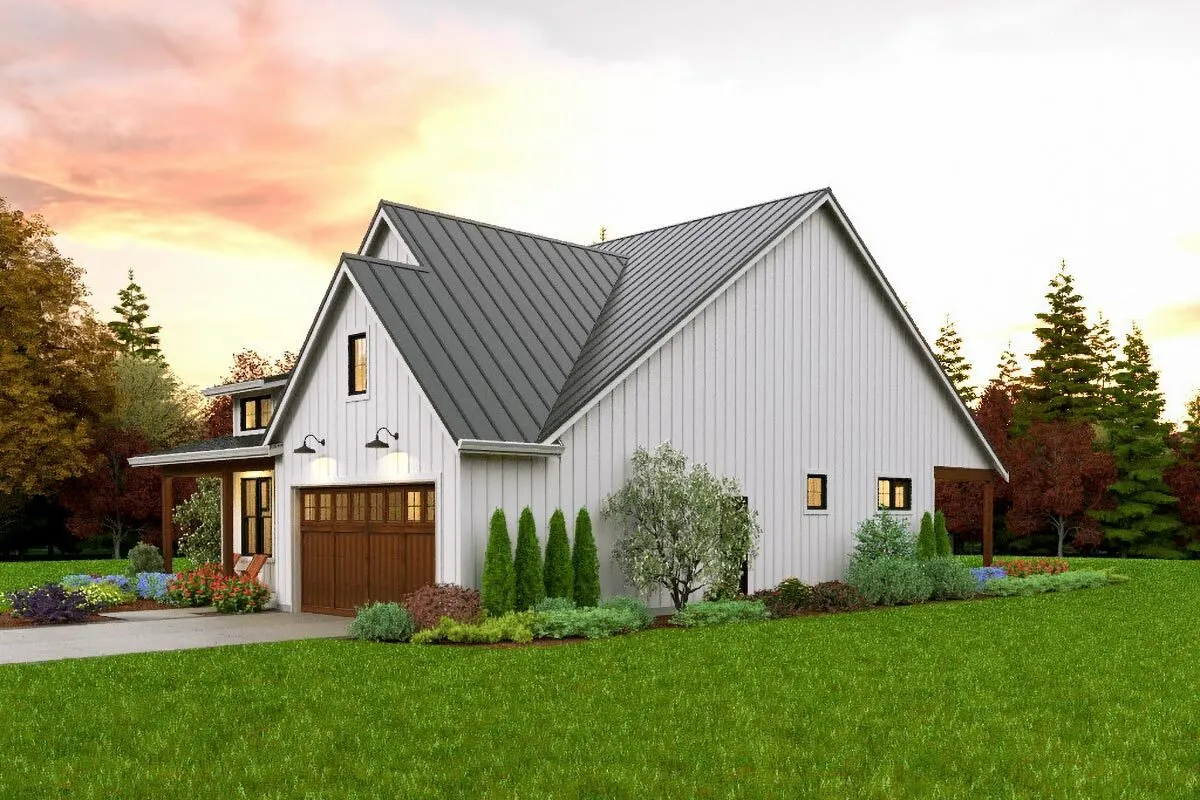

Right view of the home with surrounding landscape and a white wall paint exterior.

Right view of the home with surrounding landscape and a white wall paint exterior.

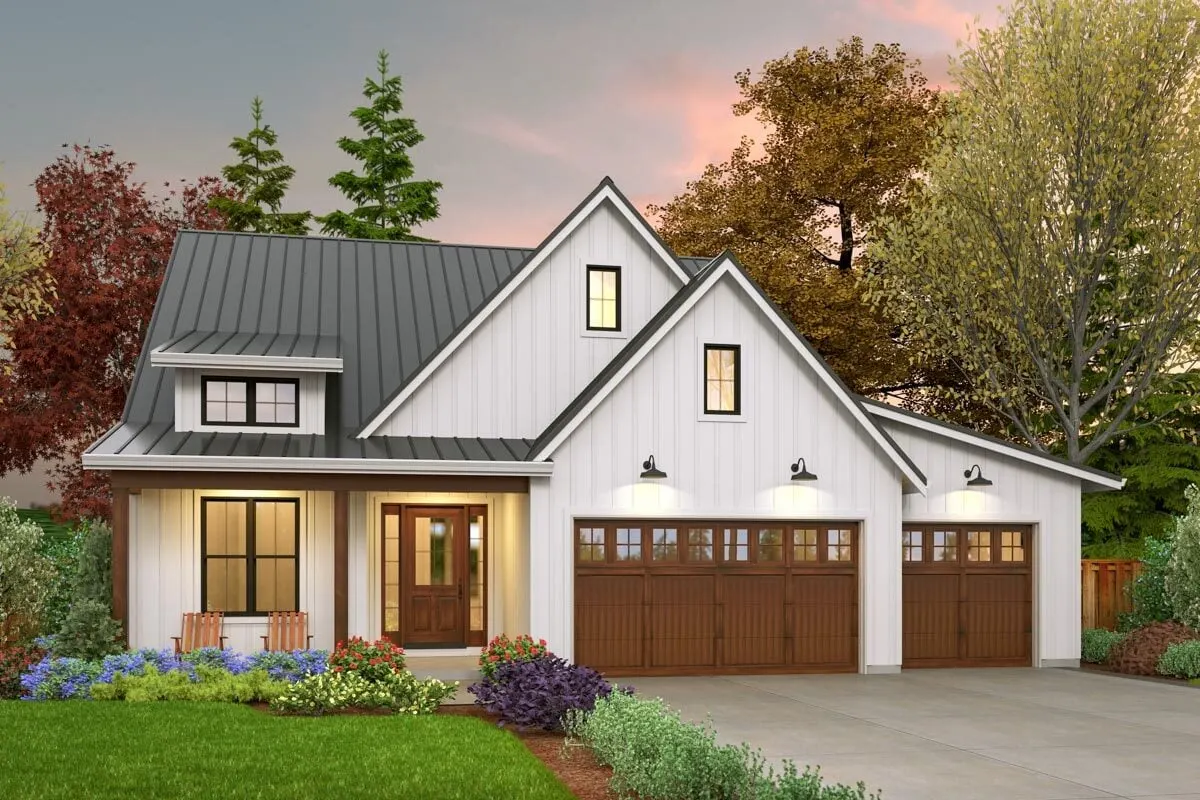

A front area view with a wooden accent and a three door garage space.

A front area view with a wooden accent and a three door garage space.

Plan Details

Dimensions

Width: 40′ 0″
Depth: 60′ 6″
Max ridge height: 27′ 11″

Garage

Type: Attached
Area: 533 sq. ft.
Count: 2 or 3 Cars
Entry Location: Front

Roof Details

Primary Pitch: 8 on 12
Framing Type: Truss

Exterior Walls

Standard Type(s): 2×6

Dimensions

Width: 40′ 0″
Depth: 60′ 6″
Max ridge height: 27′ 11″

Garage

Type: Attached
Area: 533 sq. ft.
Count: 2 or 3 Cars
Entry Location: Front

Roof Details

Primary Pitch: 8 on 12
Framing Type: Truss

View More Details About This Floor Plan

Plan 69763AM

The board and batten siding, front door with sidelights, gables with ornamental windows, and shed dormer on this three-bedroom New American home plan provide a striking exterior (decorative as well). The foyer greets you as you arrive and offers views all the way to the back of the house. Off to the left, two bedrooms share a bathroom and have their own closets. This bedroom alcove also houses the laundry room, which is equipped with a washer and dryer.

The soaring living room, kitchen, and dining room are all connected by an open floor plan to create one social area. Take a look at the spacious kitchen island with the expanded seating area. The kitchen also has a sizable pantry. A vaulted outdoor living room that is accessible from the dining room is a great place for outdoor gatherings or just to unwind and enjoy your backyard and being outside.

The master bedroom, which is separated from the living area by a large walk-in closet, has its own bathroom. You have storage space in a two-car garage. Increase your vehicle space by choosing the 3-car option.

Related Plans: With house plan 69554AM, you can get a different exterior, and with house plan 69764AM, a more compact version.
