Single-Story 3-Bedroom New American Farmhouse with Outdoor Kitchen (House Plan)

Learn more about the new American farmhouse with a bonus room and an outside kitchen. Notice also the design of the wraparound front and back porches outside.

2,290 3-4 1 2

Welcome to our house plans featuring a single-story 3-bedroom new American farmhouse floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

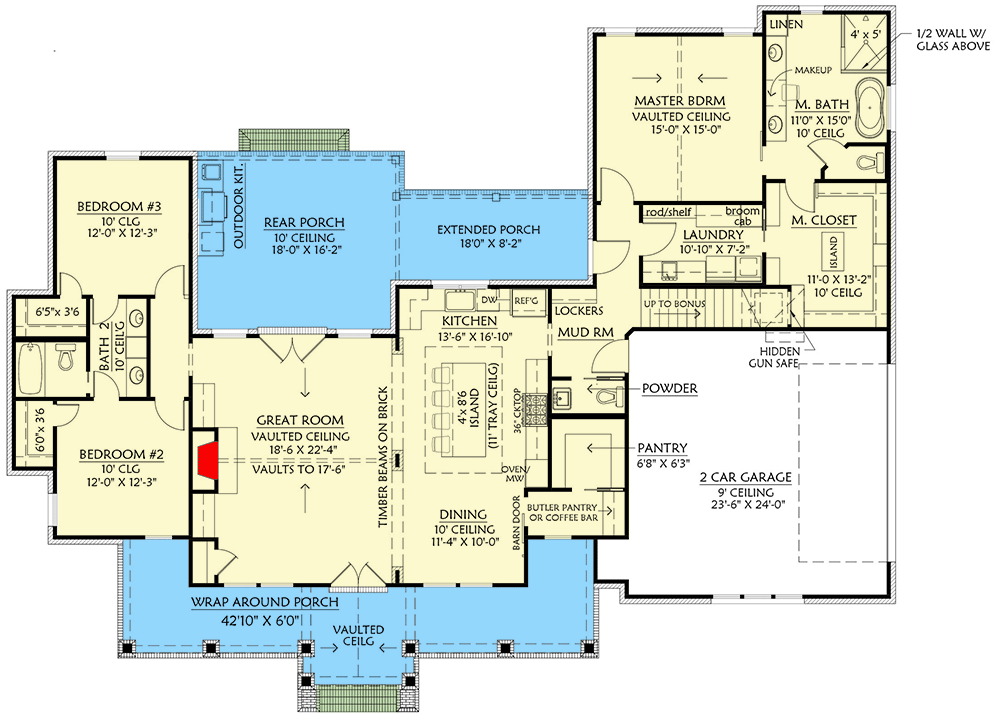

Main Level

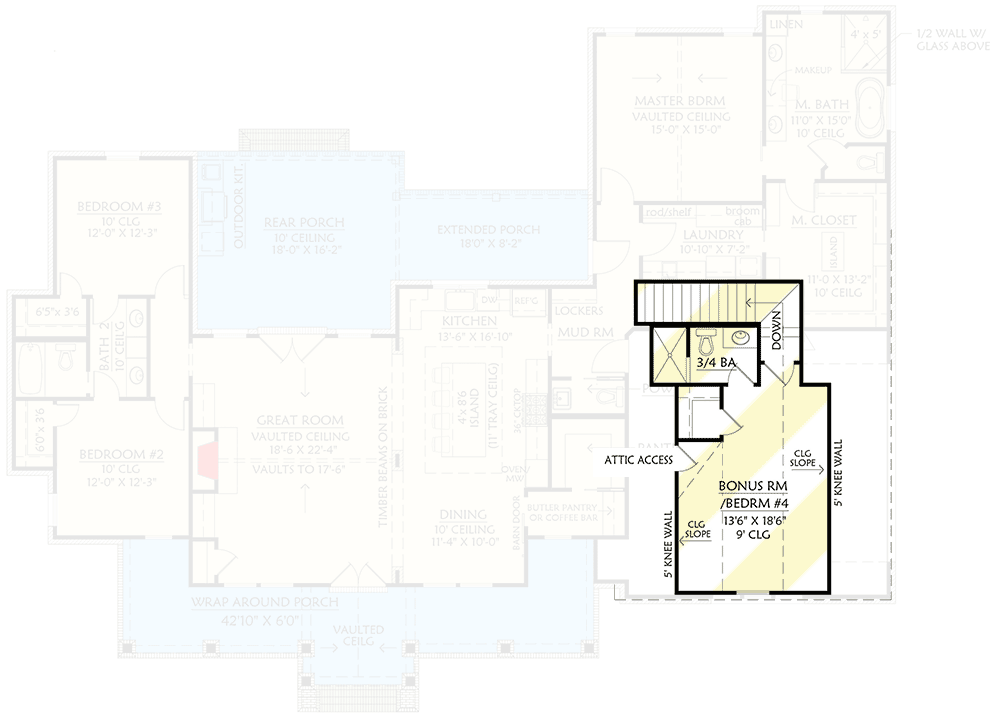

Bonus

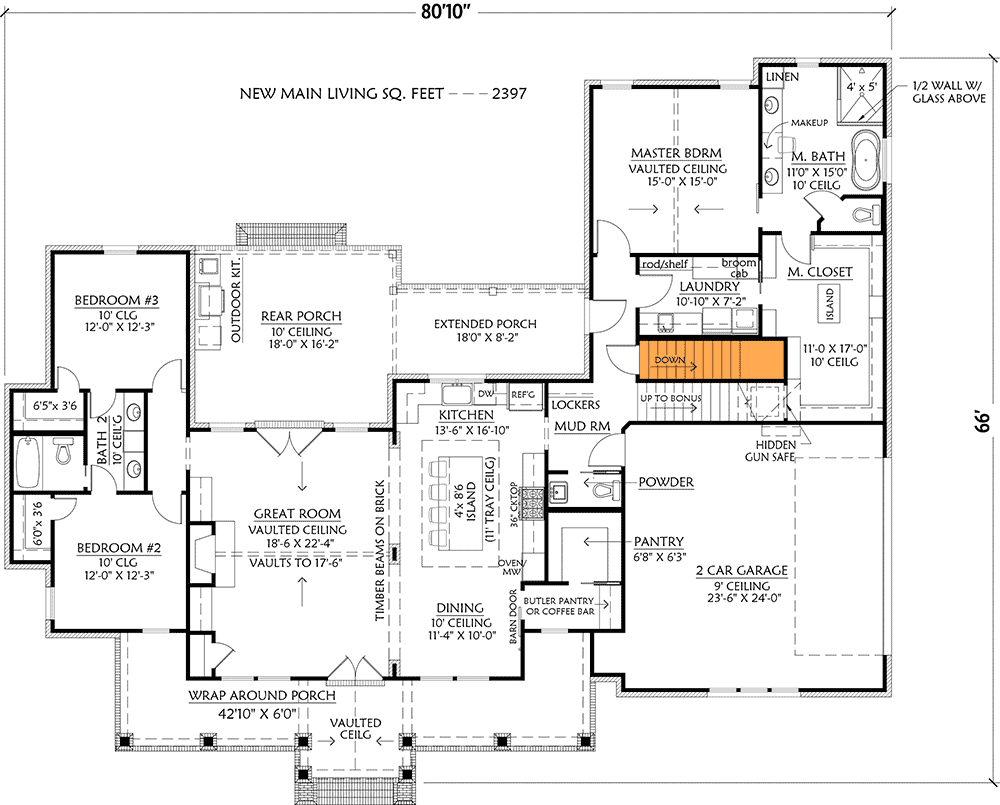

Main Level – Basement Version

Additional Floor Plan Images

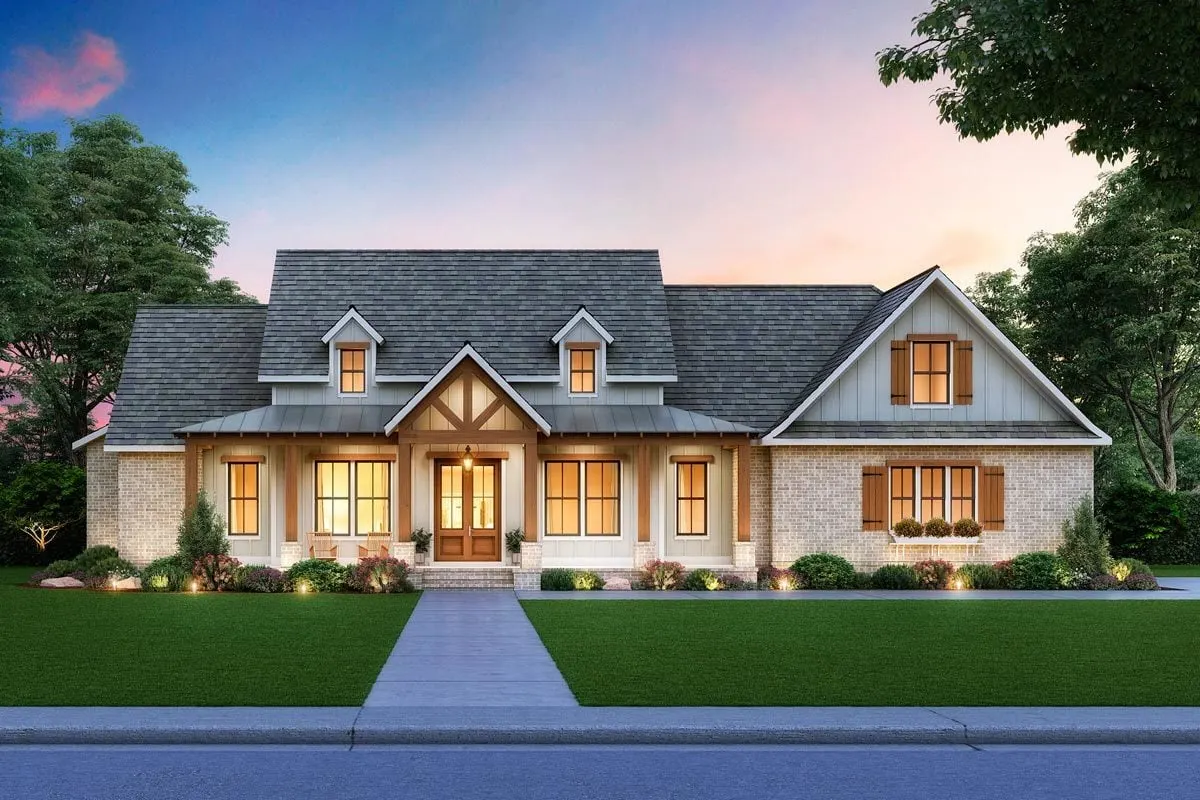

The front of the home has a window dormer built and a brick accent wall.

The front of the home has a window dormer built and a brick accent wall.

This version of the New American house is gorgeous with a dark gray external roof.

This version of the New American house is gorgeous with a dark gray external roof.

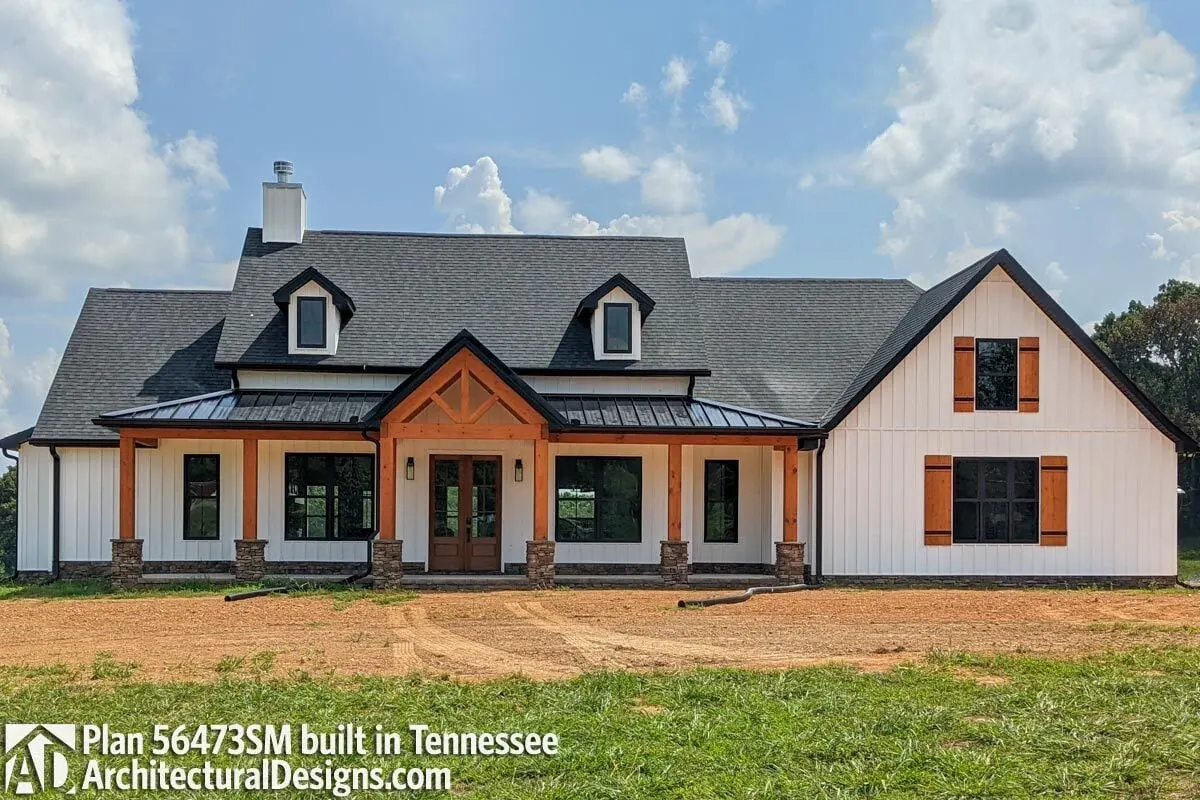

The front porch stands out, along with the wood-accented window shutters.

The front porch stands out, along with the wood-accented window shutters.

Exterior paint colors of blue and white merge beautifully with the windows' black trim.

Exterior paint colors of blue and white merge beautifully with the windows’ black trim.

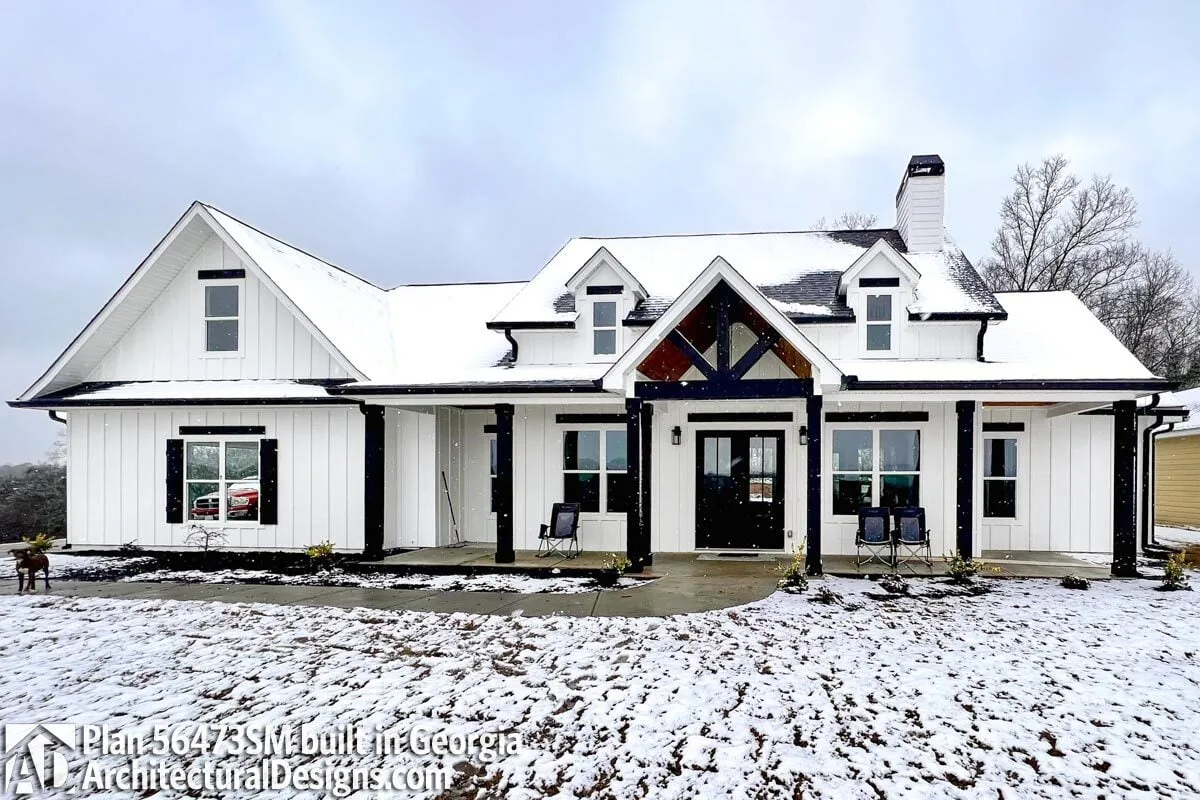

An image of a New American home in black and white with a winter environment.

An image of a New American home in black and white with a winter environment.

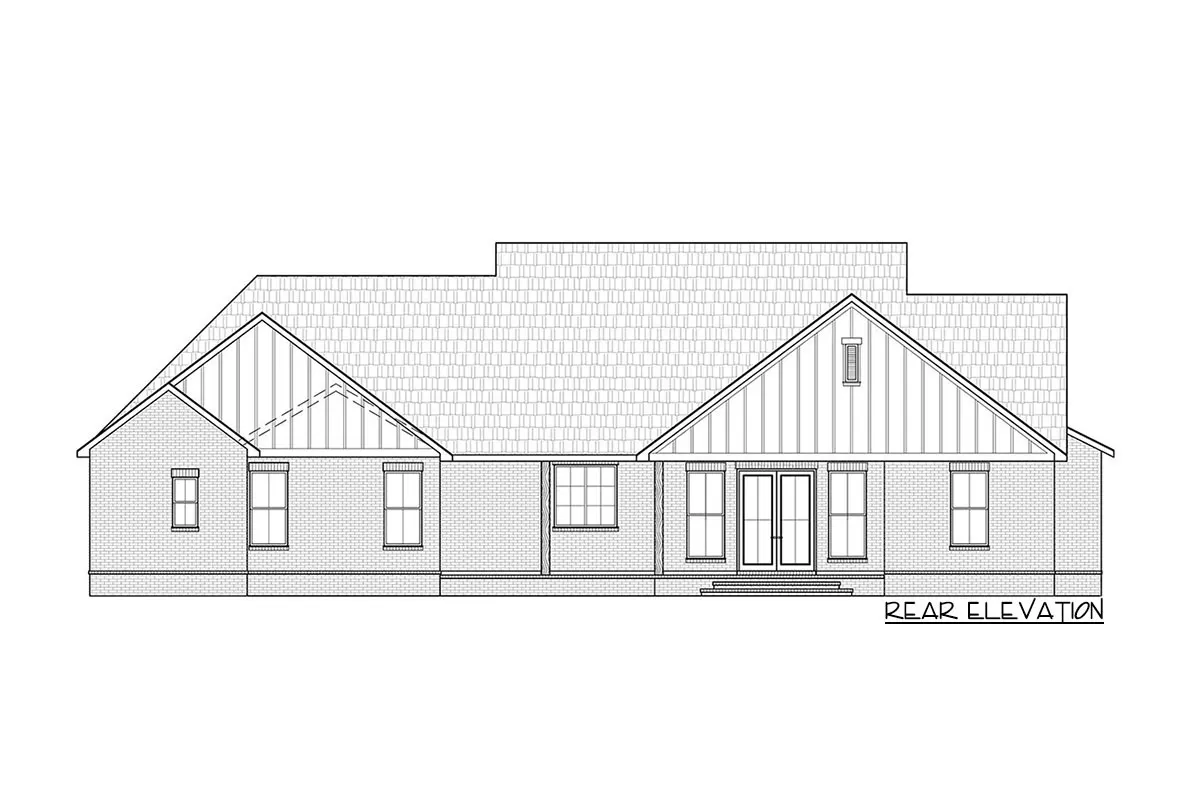

Rear elevation sketch of the single-story 3-bedroom New American farmhouse.

Rear elevation sketch of the single-story 3-bedroom New American farmhouse.

Plan Details

Dimensions

Width: 80′ 10″
Depth: 62′ 2″
Max ridge height: 26′ 3″

Garage

Type: Attached
Area: 632 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

First Floor /
10′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 12 on 12
Framing Type: Stick

Dimensions

Width: 80′ 10″
Depth: 62′ 2″
Max ridge height: 26′ 3″

Garage

Type: Attached
Area: 632 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

First Floor /
10′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 12 on 12
Framing Type: Stick

View More Details About This Floor Plan

Plan 56473SM

This New American farmhouse plan’s magnificent front elevation is the result of a blend of exterior siding materials. The great room, dining area, and kitchen are all entirely open to one another, and the wraparound porch greets you as you enter the house. Double doors then lead you inside. The great room’s central fireplace is surrounded by a vaulted ceiling, and French doors invite you to enjoy the outdoor space on the back porch, which has an outdoor kitchen.

The master bedroom is secluded behind the double garage and has a five-fixture luxury bathroom as well as a walk-in closet that leads to the laundry area. A bonus room over the garage has a full bathroom and could be used as a fourth bedroom if necessary. Bedrooms 2 and 3 shares a Jack-and-Jill bathroom on the opposite side of the house.
