Single-Story 3-Bedroom Craftsman-Style Home with Angled Garage (House Plan)

Learn more about this single-story, three-bedroom Craftsman-style house with an angled garage. There's also a separate bedroom, grilling, and covered terraces.

3,061 3-6 1-2 3

Welcome to our house plans featuring a Single-Story 3-Bedroom Craftsman-Style Home with an Angled Garage floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

Bonus Level

Walkout Basement

Side Load Garage Option

Bonus Room for Side Load Garage Option

Additional Floor Plan Images

The front of the house with a large three-car garage and yard.

The front of the house with a large three-car garage and yard.

A close-up of the main front porch and the guests' entry.

A close-up of the main front porch and the guests’ entry.

The exterior paint colors for a craftsman-style home in black and red look stunning.

The exterior paint colors for a craftsman-style home in black and red look stunning.

In the middle of the day, a vintage craftsman house appears warm.

In the middle of the day, a vintage craftsman house appears warm.

Together with the craftsman house, the garage area has a natural style with a wooden-type door.

Together with the craftsman house, the garage area has a natural style with a wooden-type door.

A craftsman-style house with a stone wall design on the outside.

A craftsman-style house with a stone wall design on the outside.

A gray and white craftsman-style home with a glimpse of the basement.

A gray and white craftsman-style home with a glimpse of the basement.

A beautiful door and the garage space appears to be sturdy.

A beautiful door and the garage space appears to be sturdy.

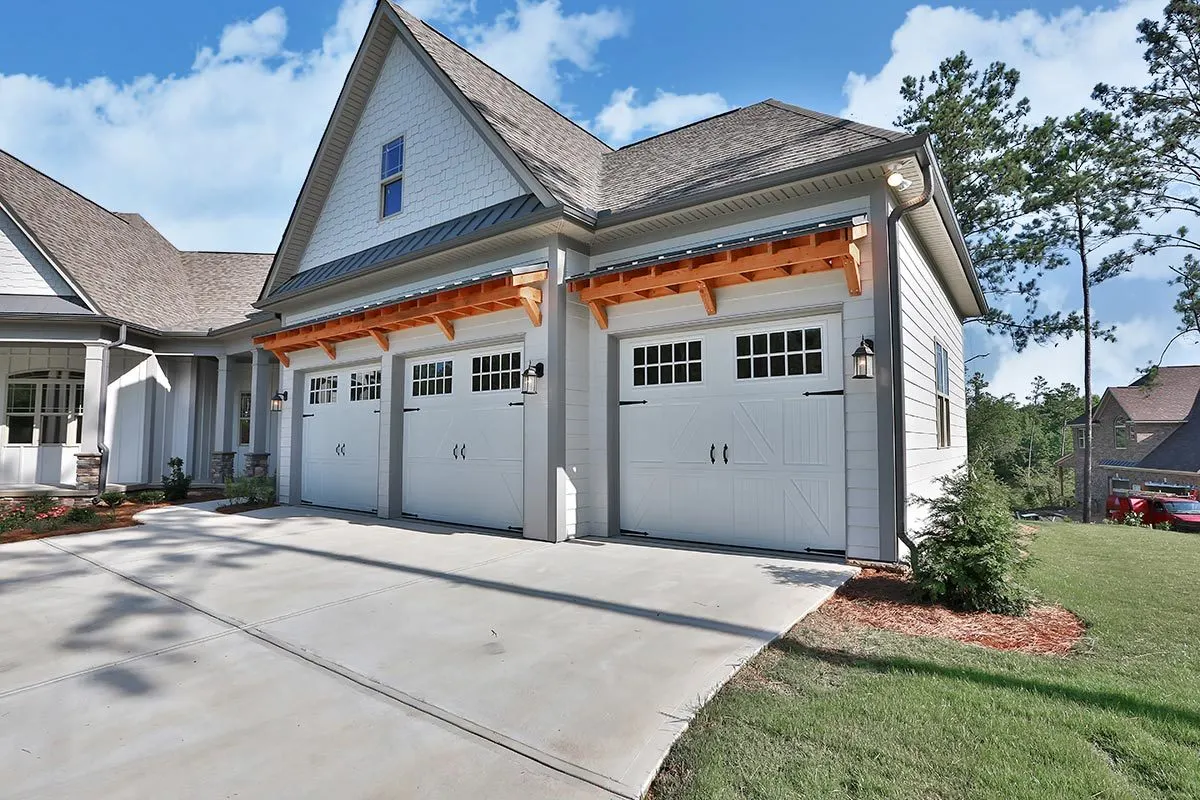

A large garage that can accommodate three cars.

A large garage that can accommodate three cars.

View of the back area, with grilling and a covered terrace.

View of the back area, with grilling and a covered terrace.

When you enter the house, you are greeted with a large living room.

When you enter the house, you are greeted with a large living room.

A huge kitchen with large ovens and an island appears to be quite functional.

A huge kitchen with large ovens and an island appears to be quite functional.

The kitchen is complete white paint appears lovely.

The kitchen is complete white paint appears lovely.

The kitchen, with its well-organized cabinet storage and tiled brick-style walls.

The kitchen, with its well-organized cabinet storage and tiled brick-style walls.

Living room with two windows that overlook the porch and a fireplace in the middle.

Living room with two windows that overlook the porch and a fireplace in the middle.

The ceiling is a double tray, offering a wonderful secluded room.

The ceiling is a double tray, offering a wonderful secluded room.

The master suite offers access to the covered terrace and a fantastic bath with dual vanities walk-in closets.

The master suite offers access to the covered terrace and a fantastic bath with dual vanities walk-in closets.

The bathroom features a soaking tub and a glass shower with a view of gorgeous nature.

The bathroom features a soaking tub and a glass shower with a view of gorgeous nature.

There is an additional activity space above the house.

There is an additional activity space above the house.

The covered terrace is ideal for relaxing and unwinding.

The covered terrace is ideal for relaxing and unwinding.

Rear elevation sketch of the single-story 3-bedroom craftsman house.

Rear elevation sketch of the single-story 3-bedroom craftsman house.

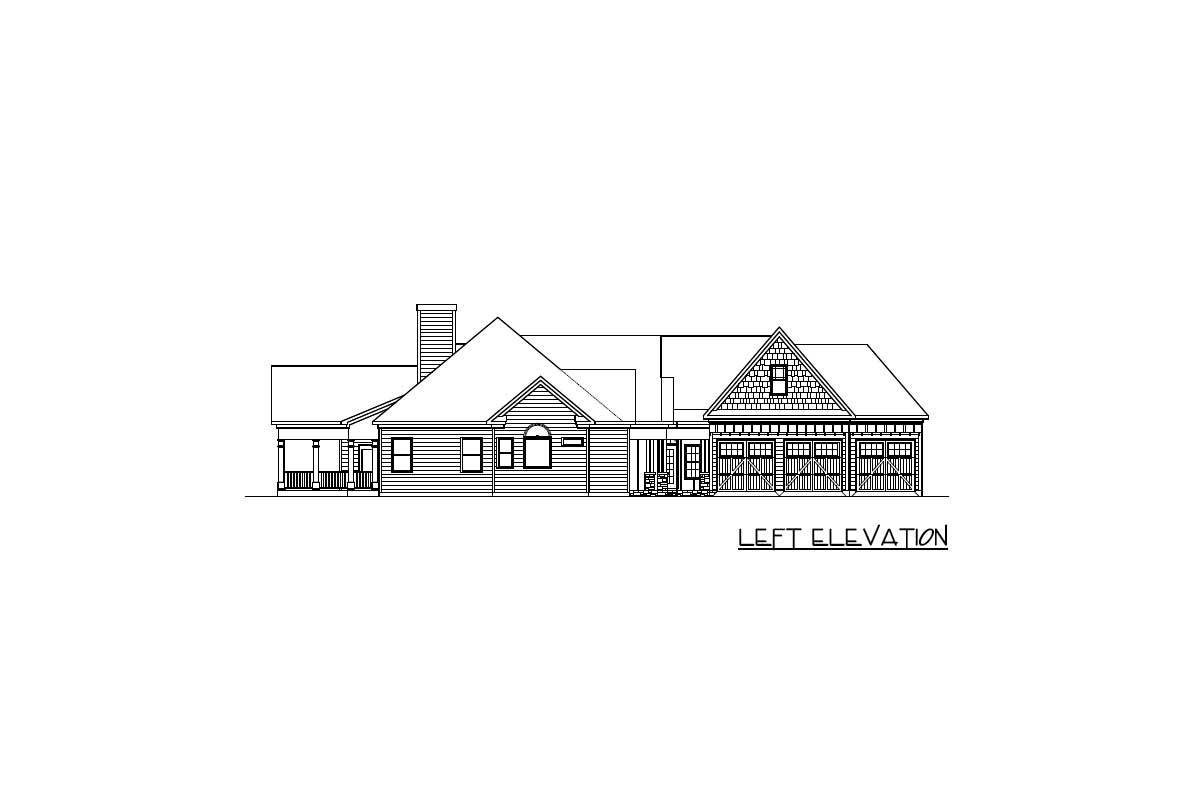

Left elevation sketch of the single-story 3-bedroom craftsman house.

Left elevation sketch of the single-story 3-bedroom craftsman house.

Right elevation sketch of the single-story 3-bedroom craftsman house.

Right elevation sketch of the single-story 3-bedroom craftsman house.

Front elevation - side garage option sketch of the single-story 3-bedroom craftsman house.

Front elevation – side garage option sketch of the single-story 3-bedroom craftsman house.

Right elevation - Side Garage Option sketch of the single-story 3-bedroom craftsman house.

Right elevation – Side Garage Option sketch of the single-story 3-bedroom craftsman house.

Rear-walkout elevation sketch of the single-story 3-bedroom craftsman house.

Rear-walkout elevation sketch of the single-story 3-bedroom craftsman house.

Plan Details

Dimensions

Width: 97′ 2″
Depth: 87′ 7″
Max ridge height: 27′ 0″

Garage

Type: Attached
Area: 854 sq. ft.
Count: 3 Cars
Entry Location: Side, Courtyard

Ceiling Heights

Lower Level /
9′ 0″
First Floor /
10′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 14 on 12
Framing Type: Stick

Dimensions

Width: 97′ 2″
Depth: 87′ 7″
Max ridge height: 27′ 0″

Garage

Type: Attached
Area: 854 sq. ft.
Count: 3 Cars
Entry Location: Side, Courtyard

Ceiling Heights

Lower Level /
9′ 0″
First Floor /
10′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 14 on 12
Framing Type: Stick

View More Details About This Floor Plan

Plan 36055DK

The outside of this split bedroom Craftsman home plan is appealing, with shingles and board & batten siding. The garage is somewhat slanted and has a shed roof that extends off the front with wood supports. Views from the entrance stretch all the way to the back of the house, across the family room. The dining room on your right is defined by columns.

The first floor’s primary area is open concept. Views from your kitchen span the family room, breakfast area, and even the vaulted covered patio in the back. A huge concealed pantry and an island with bar top seating are thoughtful additions. The master suite includes access to the covered terrace as well as a fantastic bath with his and her vanities and walk-in closets. The ceiling is a double tray, offering a wonderful secluded room.

Two beds are located across the house, each with its own bath. The laundry is also on the main level, and there’s a built-in bench off the family entry. Upstairs, add a leisure room (392 square feet) and an optional fourth bedroom (adds 277 square feet). If you purchase the basement, you gain two extra bedrooms and 2,950 square feet of living space.

Related Plans: With home plan 36027DK, you may build in reverse. Get a different look with home plans 36029DK (3,033 sq. ft.), 360020DK (2,924 sq. ft.), and 36063DK (2,767 sq. ft.). Also available are home plans 36028DK (2,650 sq. ft.), 360070DK (2,870 sq. ft.), and 36043DK (2,818 sq. ft.).
