Single-Story 2-Bedroom New American House with Volume Ceilings (House Plan)

Learn more about this architectural plan's single-story, two-bedroom New American house with volume ceilings and the stunning spaces it offers.

2,358 3-4 1-2 2

Welcome to our house plans featuring a Single-Story 2-Bedroom New American House with Volume Ceilings floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

Bonus Over Garage

Main Floor – Basement Version

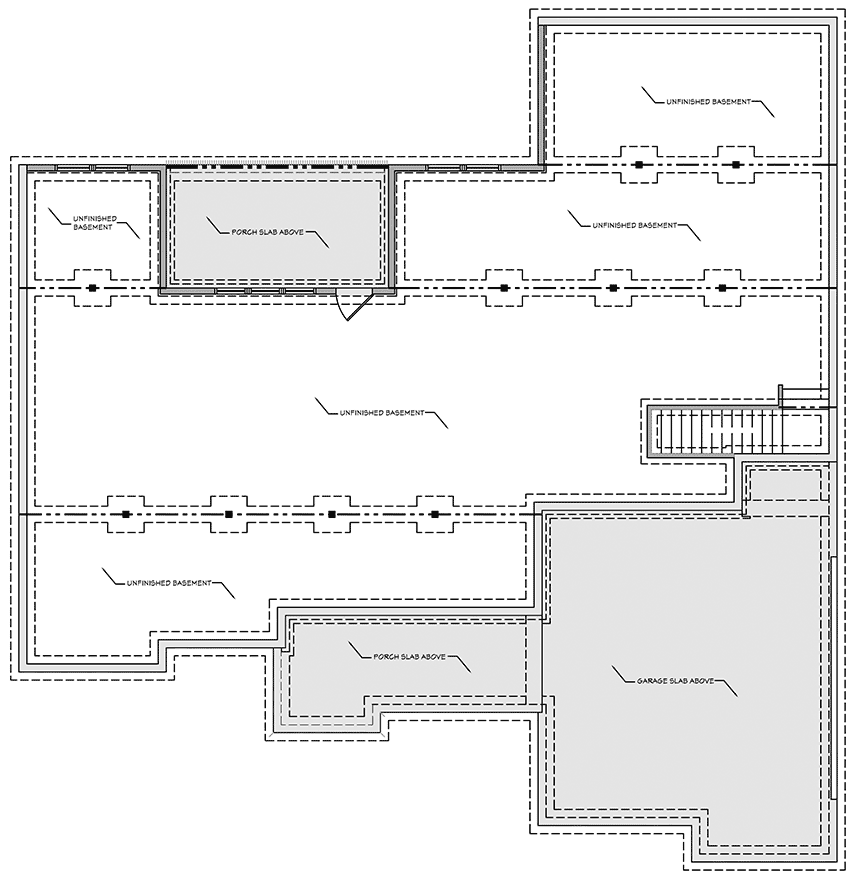

Unfinished Walkout Basement

Additional Floor Plan Images

A New American home's front view appears classy thanks to the French door and windows.

A New American home’s front view appears classy thanks to the French door and windows.

A two-toned New American-style house with a vertical door and window design.

A two-toned New American-style house with a vertical door and window design.

A brand-new American-style <a href=house with beautiful color paint and bricks for the bottom walling.” class=”wp-image-12866″ title=” beautiful color paint and bricks for the bottom walling.”/>

A brand-new American-style house with beautiful color paint and bricks for the bottom walling.

View from the side of the home showing the garage space.

View from the side of the home showing the garage space.

An adaptation of the house with a stone wall.

An adaptation of the house with a stone wall.

Unfinished home with a barren yard, seen from the front.

Unfinished home with a barren yard, seen from the front.

A close-up of the front of a house with board and batten siding.

A close-up of the front of a house with board and batten siding.

Front elevation sketch of the single-story 3-bedroom New American house.

Front elevation sketch of the single-story 3-bedroom New American house.

Left elevation sketch of the single-story 3-bedroom New American house.

Left elevation sketch of the single-story 3-bedroom New American house.

Rear elevation sketch of the single-story 3-bedroom New American house.

Rear elevation sketch of the single-story 3-bedroom New American house.

Right elevation sketch of the single-story 3-bedroom New American house.

Right elevation sketch of the single-story 3-bedroom New American house.

Rear-walkout elevation sketch of the single-story 3-bedroom New American house.

Rear-walkout elevation sketch of the single-story 3-bedroom New American house.

Plan Details

Dimensions

Width: 67′ 6″
Depth: 65′ 4″
Max ridge height: 28′ 0″

Garage

Type: Attached
Area: 673 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Lower Level /
9′ 4″
First Floor /
9′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 12 on 12
Framing Type: Stick

Dimensions

Width: 67′ 6″
Depth: 65′ 4″
Max ridge height: 28′ 0″

Garage

Type: Attached
Area: 673 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Lower Level /
9′ 4″
First Floor /
9′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 12 on 12
Framing Type: Stick

View More Details About This Floor Plan

Plan 51806HZ

This New American home plan welcomes you with exposed truss and beams on the front porch and a board and batten façade with a brick base. The major living areas have tremendous volume ceilings, and the gourmet kitchen with an immense pantry is a cook’s paradise.

The house has three bedrooms, including a master bedroom with a private bath and access to the laundry room. The extra room with a full bath over the garage offers the option of a fourth bedroom.
Take advantage of the outdoors on your 8′ front and 10′ 2″ back porches.

Related Plans: Get more exteriors with the home plan 51793HZ. 51777HZ and 51735HZ.

DELIVERY DELAY: Please be aware that the supplies list will not be sent for two weeks.
