Single-Story 1-Car Meditteranean 392 Square Foot Detached Garage (House Plan)

Find out more about this 1-car 392-square-foot detached garage plan. See the exterior in Mediterranean style with a vaulted ceiling layout.

392 1 1

Welcome to our house plans featuring a single-story 1-car Meditteranean 392 square foot detached garage floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

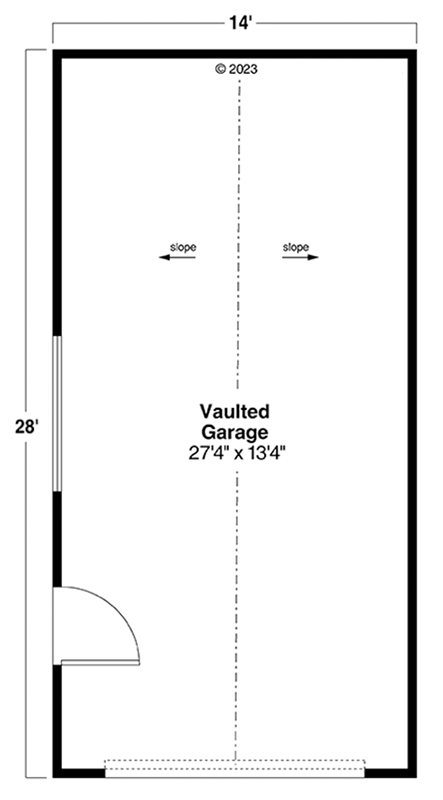

Main Level

Additional Floor Plan Images

Garage in the Mediterranean style with a brown roof and doors.

Garage in the Mediterranean style with a brown roof and doors.

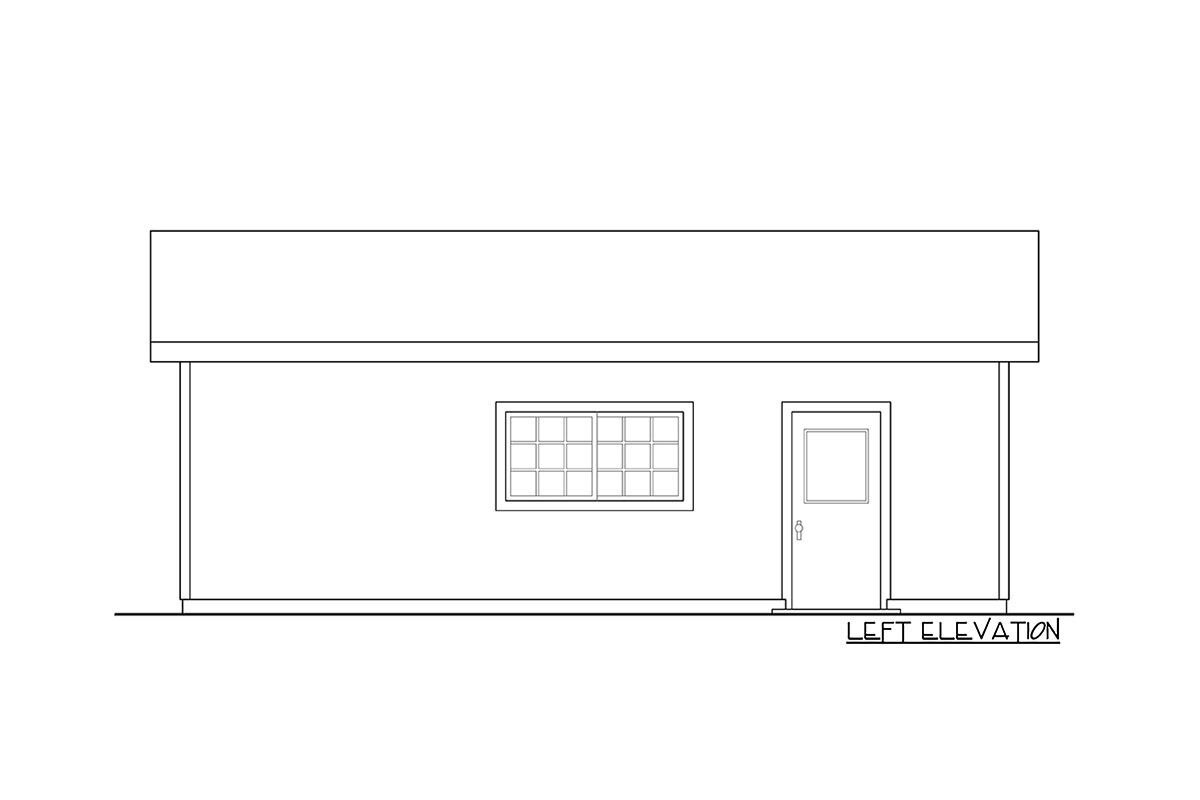

Single-story, one-car Mediterranean garage, left elevation.

Single-story, one-car Mediterranean garage left elevation.

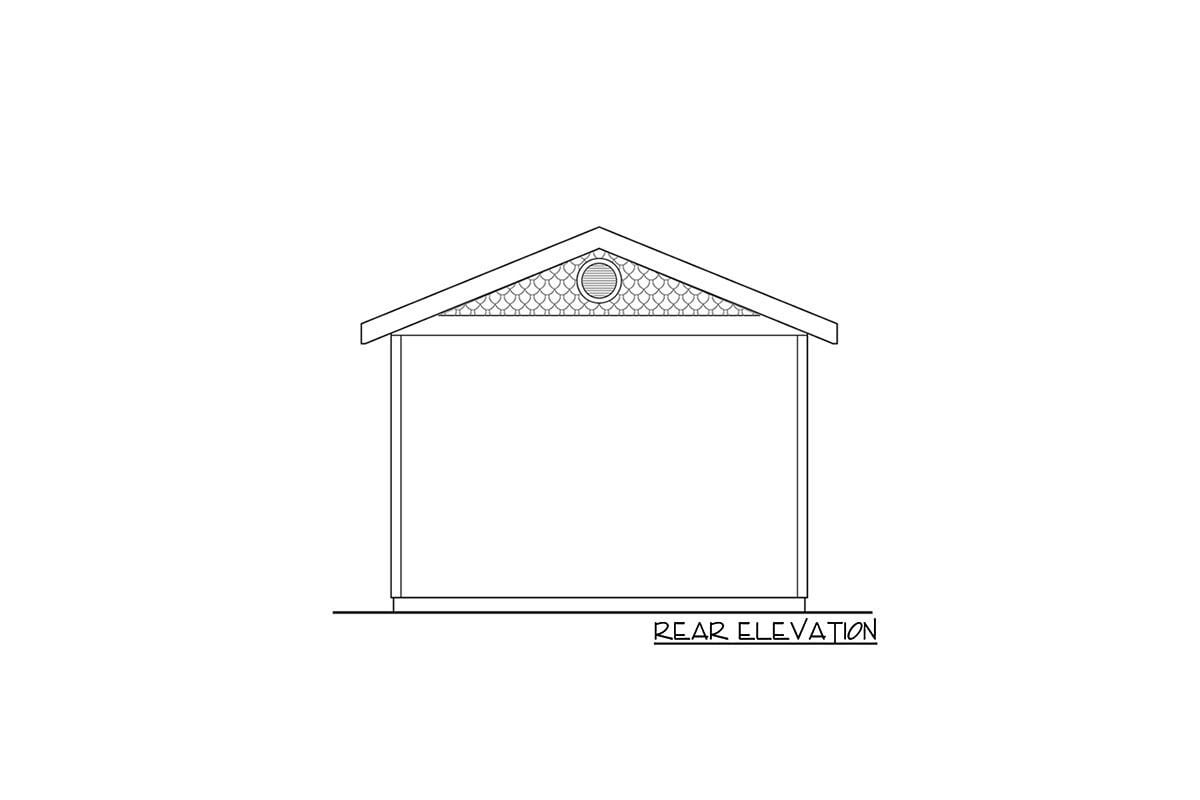

Single-story, one-car Mediterranean garage rear elevation.

Single-story, one-car Mediterranean garage rear elevation.

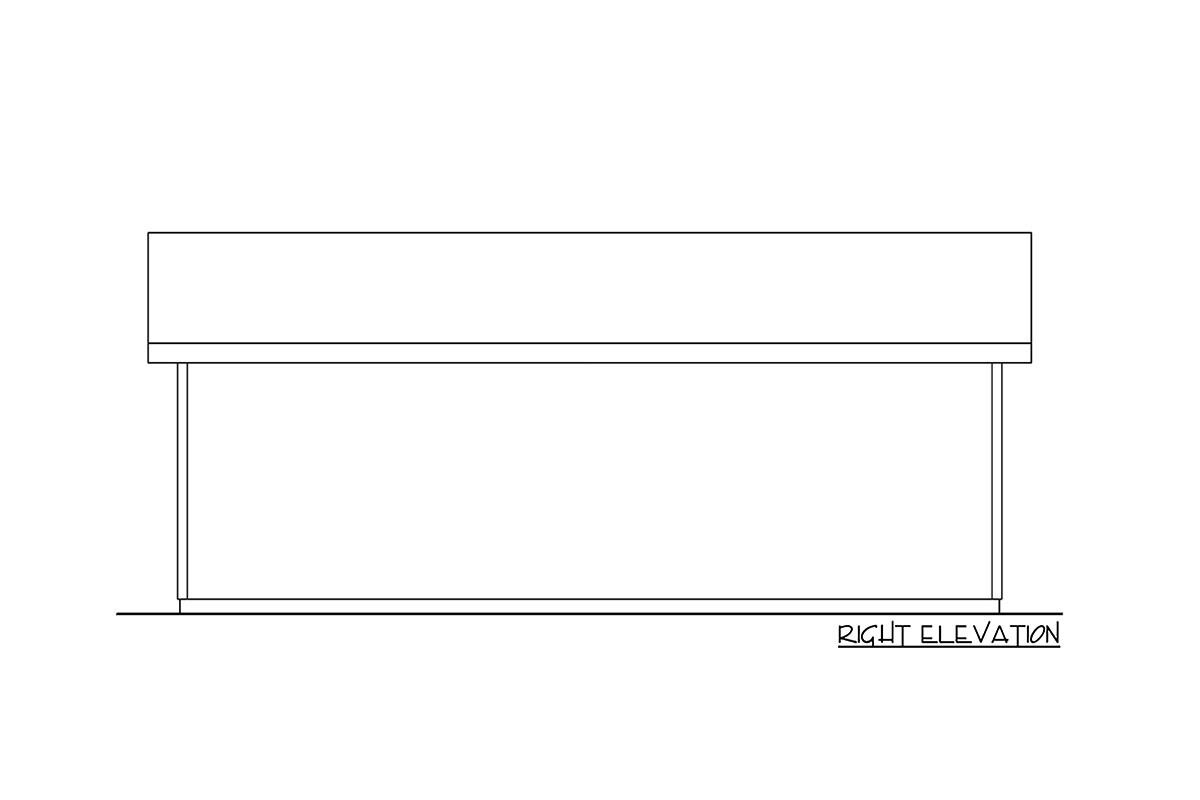

Single-story, one-car Mediterranean garage right elevation.

Single-story, one-car Mediterranean garage right elevation.

Single-story, one-car Mediterranean  vaulted garage plan.

Single-story, one-car Mediterranean vaulted garage plan.

Plan Details

Dimensions

Width: 14′ 0″
Depth: 28′ 0″
Max ridge height: 13′ 0″

Garage

Area: 392 sq. ft.
Count: 1 Cars
Entry Location: Front

Ceiling Heights

First Floor /
9′ 0″

Roof Details

Primary Pitch: 5 on 12
Framing Type: Truss

Dimensions

Width: 14′ 0″
Depth: 28′ 0″
Max ridge height: 13′ 0″

Garage

Area: 392 sq. ft.
Count: 1 Cars
Entry Location: Front

Ceiling Heights

First Floor /
9′ 0″

Roof Details

Primary Pitch: 5 on 12
Framing Type: Truss

View More Details About This Floor Plan

Plan 72378DA

  • This Mediterranean-style detached garage plan can fit one car inside.
  • The garage door is 10′ wide and 8′ tall.
