Welcome to our house plans featuring a 2-story 5-bedroom exclusive New American house floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.
Floor Plan

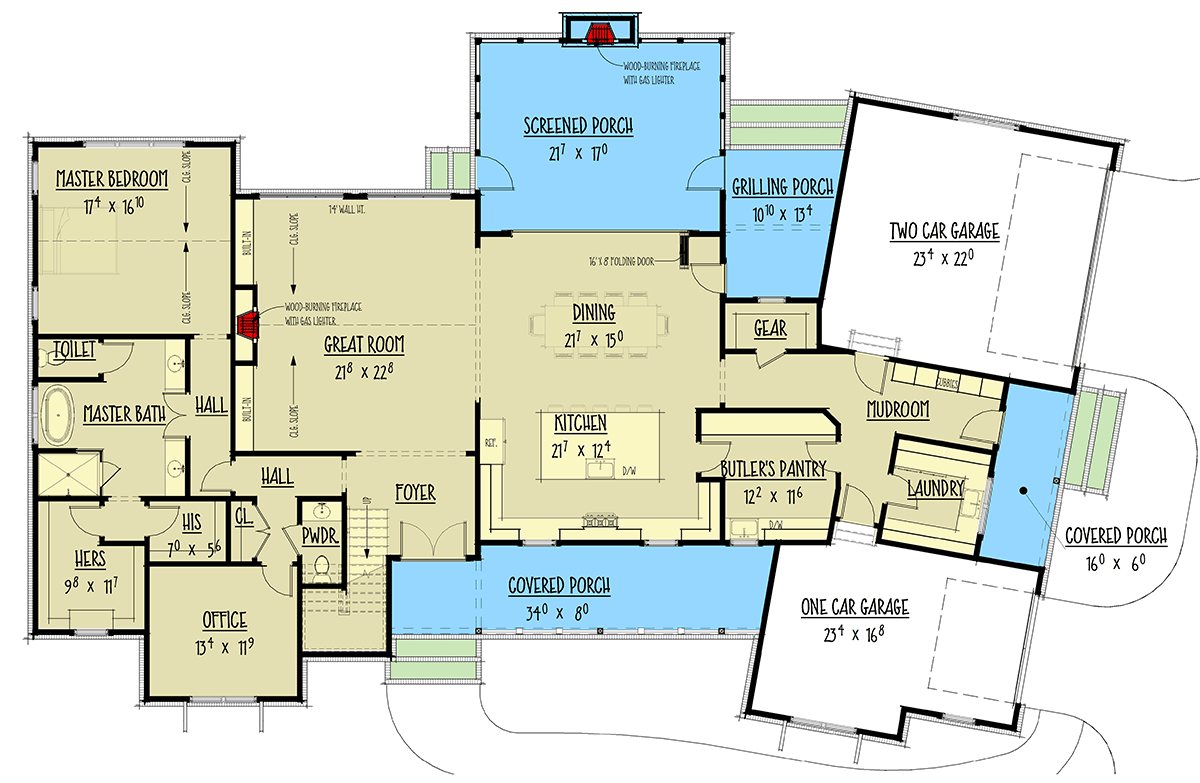

Main Level

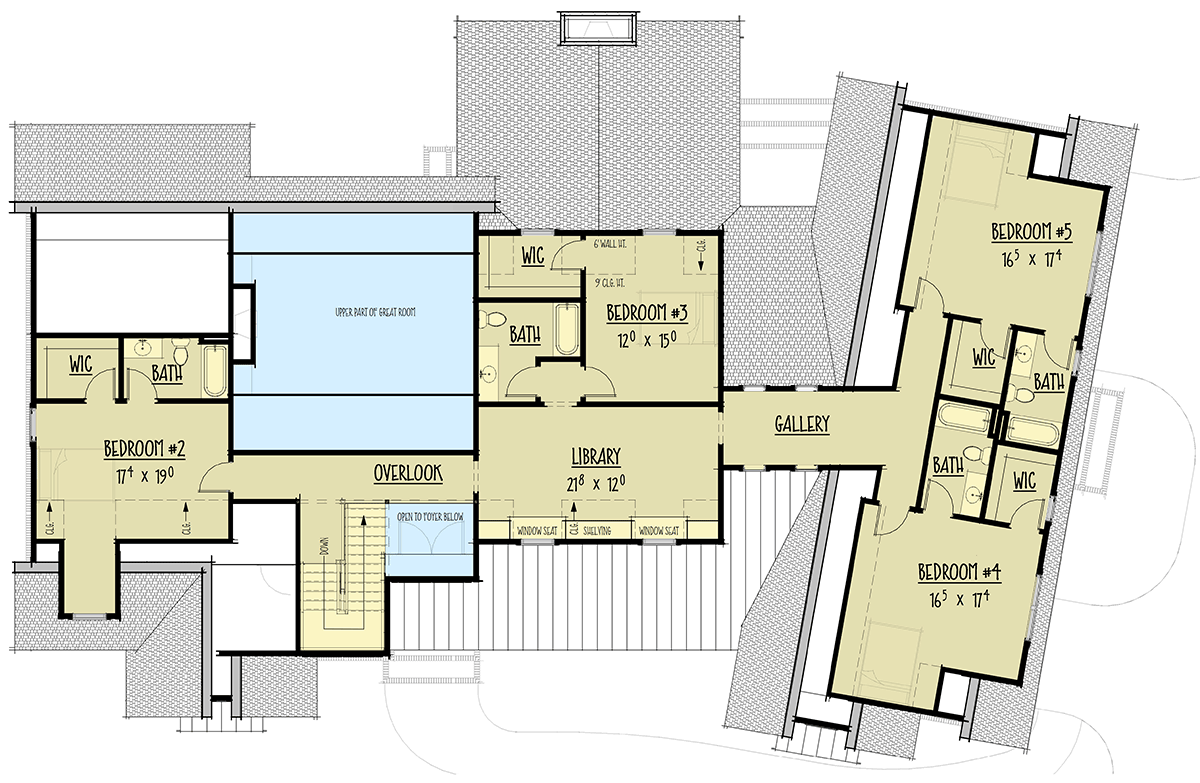

2nd Floor
Additional Floor Plan Images
The front of the home comes to place well due to the wonderful window arrangement.
Kitchen area with exposed wood beam ceiling in a rustic interior style.
A 10-seater dining area made of solid redwood looks elegant.
The bedroom has a serene appearance with wood floors and black trim around the windows.

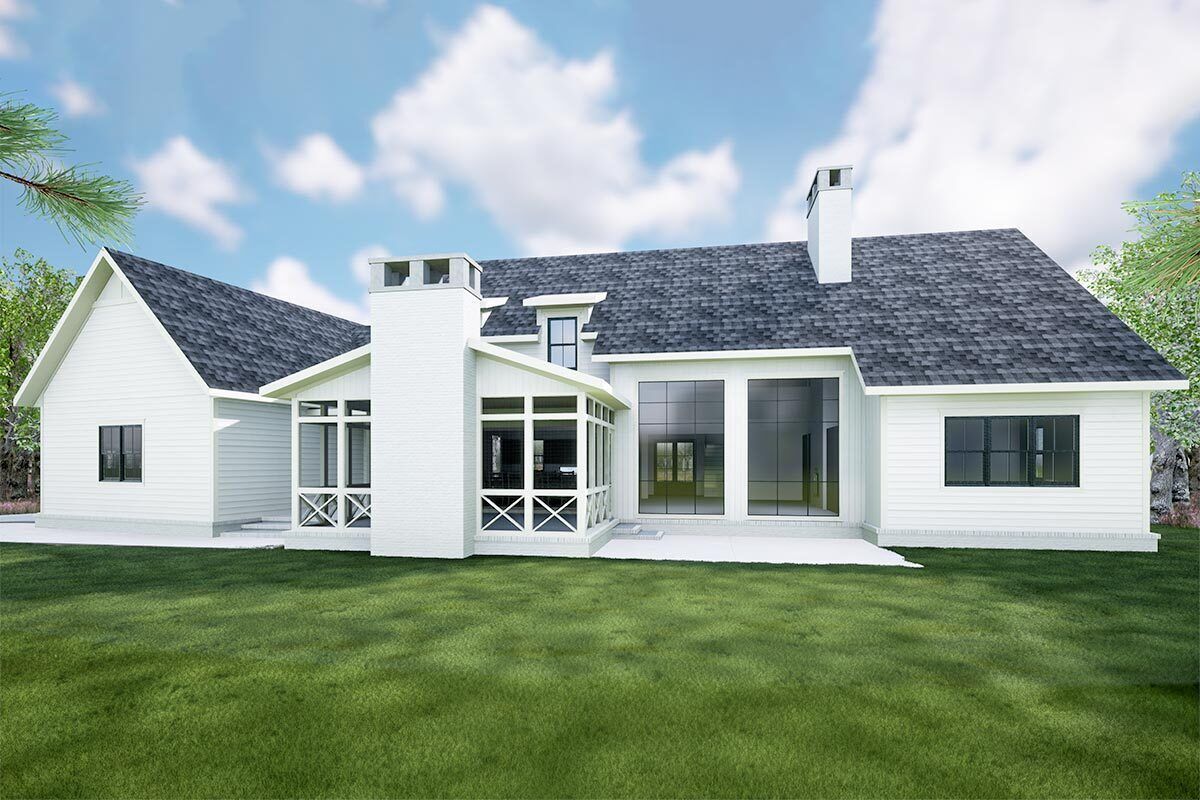

The back of the home has a screened porch with a wood-burning fireplace.

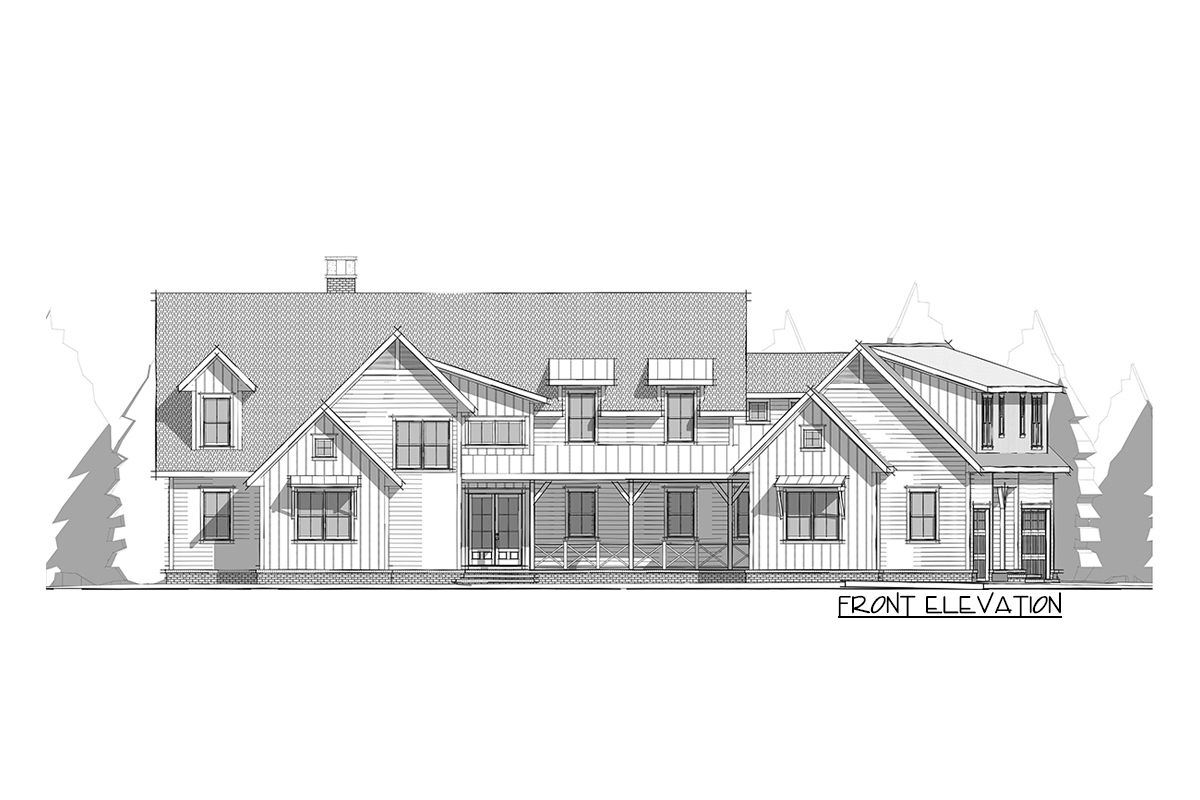

Front elevation drawing of the premium 2-story 5-bedroom New American home.

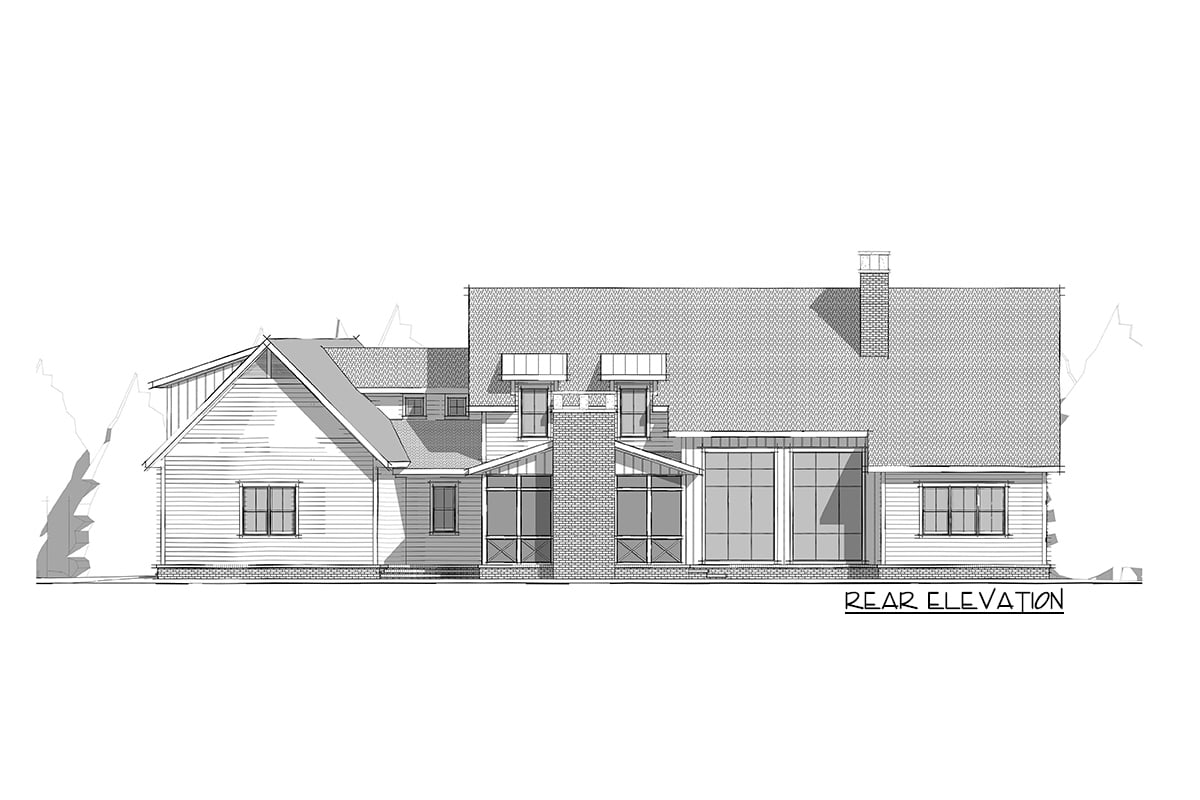

Rear elevation drawing of the premium 2-story 5-bedroom New American home.
Plan Details
Dimensions
| Width: | 98′ 3″ |
| Depth: | 65′ 0″ |
| Max ridge height: | 32′ 0″ |
Garage
| Type: | Attached |
| Area: | 920 sq. ft. |
| Count: | 3 Cars |
| Entry Location: | Side |
Ceiling Heights
| First Floor / 10′ 1″ |
|
| Second Floor / 9′ 1″ |
Roof Details
| Primary Pitch: | 10 on 12 |
| Secondary Pitch: | 12 on 12 |
Dimensions
| Width: | 98′ 3″ |
| Depth: | 65′ 0″ |
| Max ridge height: | 32′ 0″ |
Garage
| Type: | Attached |
| Area: | 920 sq. ft. |
| Count: | 3 Cars |
| Entry Location: | Side |
Ceiling Heights
| First Floor / 10′ 1″ |
|
| Second Floor / 9′ 1″ |
Roof Details
| Primary Pitch: | 10 on 12 |
| Secondary Pitch: | 12 on 12 |
View More Details About This Floor Plan
Plan 275004CMM
On this special New American home plan, deep, gabled overhangs lie above bright-white vertical and horizontal siding. The laundry/mudroom divides the third garage space, which might be used as a workshop or lawn equipment storage. The communal living areas are located in the middle of the house, with enormous windows that enable natural light to penetrate the inside. During the warmer months, a multi-panel sliding door adds living space to the screened porch.
When entertaining, the spacious kitchen features a large island, and an attached butler’s pantry increases workspace. Return to the master bedroom, which is located on the main level’s left side, along with a home office. The en suite bathroom includes a freestanding tub, two vanities, and two walk-in closets. On the second floor, four-bedroom suites each have a complete bath, and a library with built-in window seats adds flair while offering a pleasant reading spot.
Related Plan: Convert the bedrooms over the garage into an extra room with house plan 275005CMM.
