2-Story 4-Bedroom Mediterranean Florida Home with Two Master Suites (House Plan)

Find out more about the two master suites in this Mediterranean-style Florida home. Check out the spacious covered lanai in the back.

5,604 4 2 3

Welcome to our house plans featuring a 2-story 4-bedroom Mediterranean Florida home floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

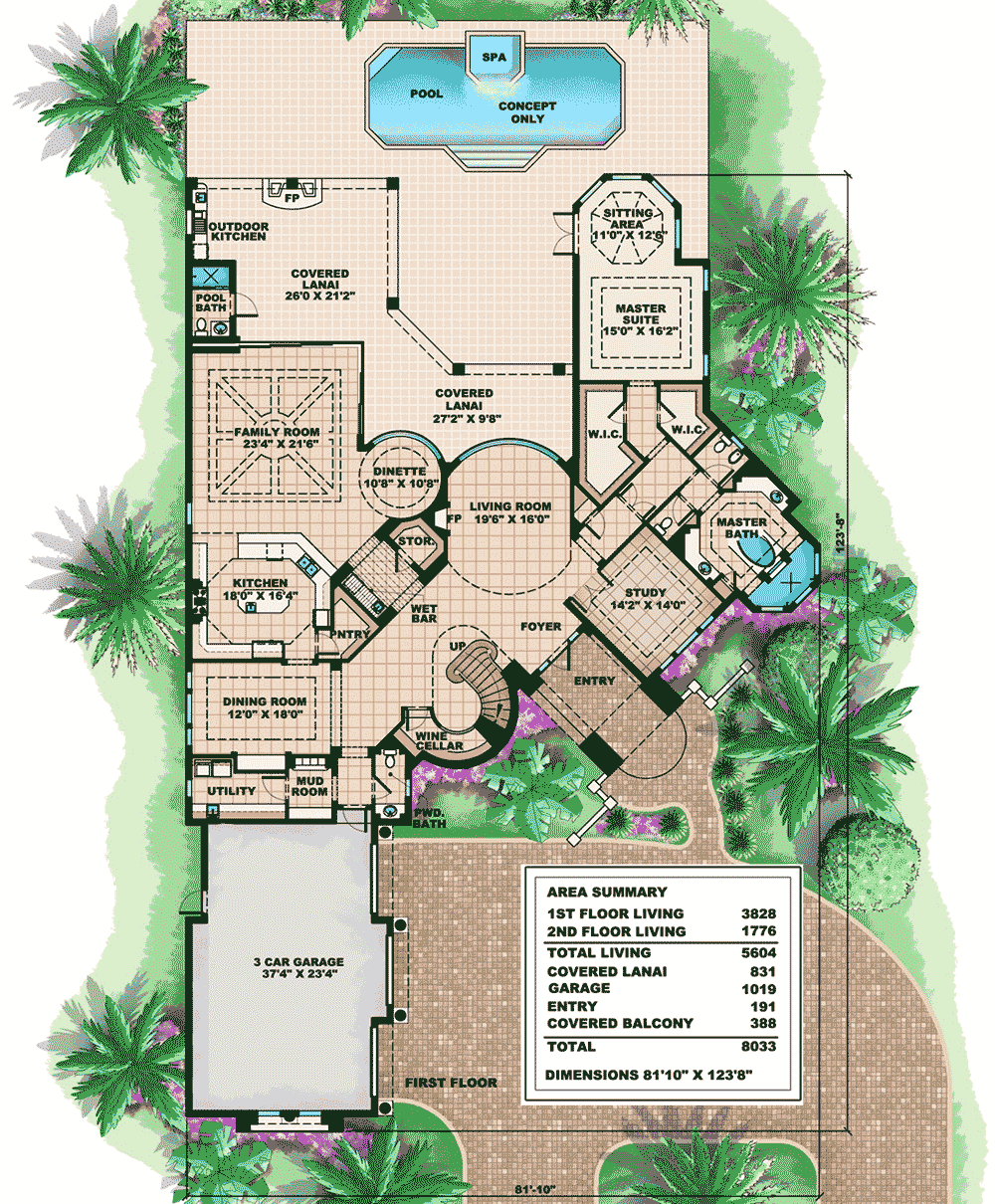

Main Level

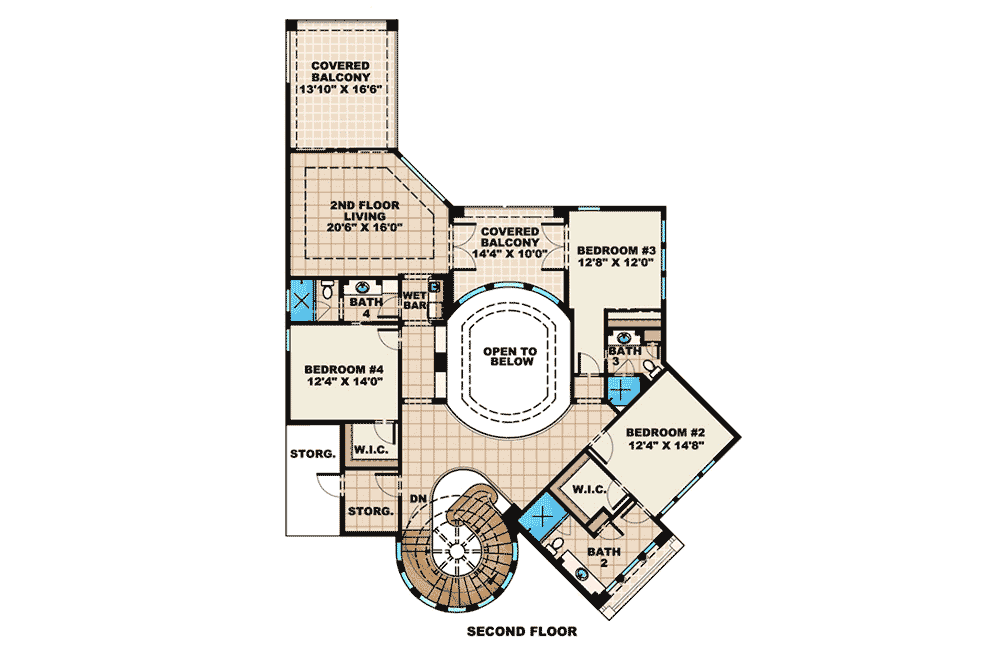

2nd Floor

Additional Floor Plan Images

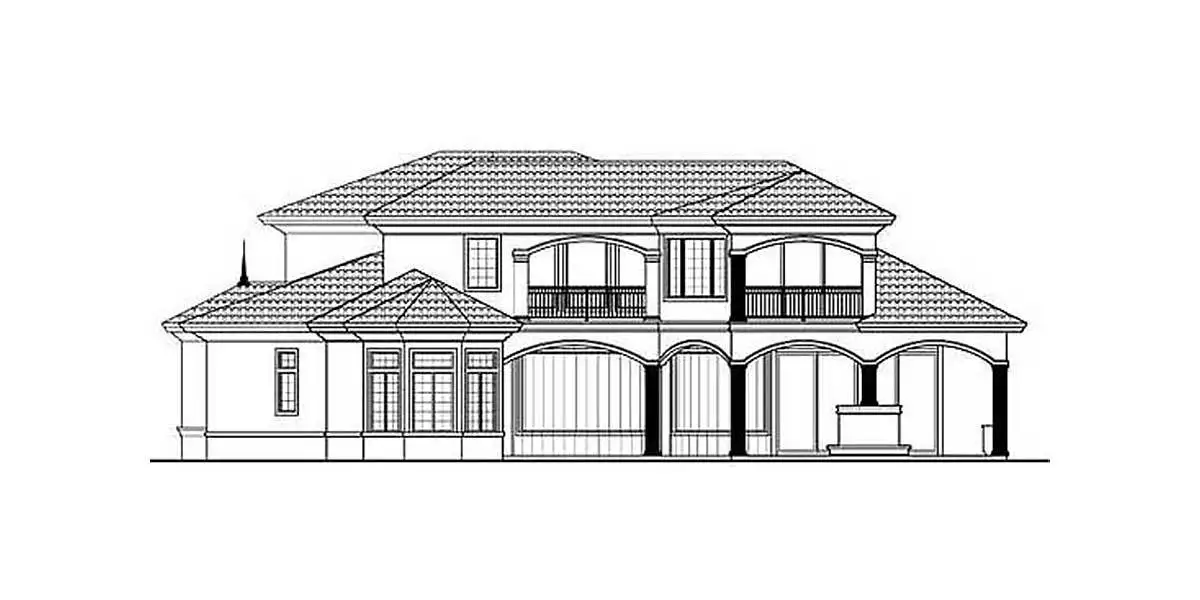

The drawing shows the two-story, four-bedroom Mediterranean home in Florida's front façade.

The drawing shows the two-story, four-bedroom Mediterranean home in Florida’s front façade.

The two-story, four-bedroom Mediterranean home in Florida is seen from the left.

The two-story, four-bedroom Mediterranean home in Florida is seen from the left.

Plan Details

Dimensions

Width: 81′ 10″
Depth: 123′ 8″
Max ridge height: 30′ 4″

Garage

Type: Attached
Area: 945 sq. ft.
Count: 3 Cars
Entry Location: Front, Courtyard

Roof Details

Primary Pitch: 6 on 12
Framing Type: Truss

Exterior Walls

Standard Type(s): Block / CMU (main floor)
Optional Type(s): 2×6

Dimensions

Width: 81′ 10″
Depth: 123′ 8″
Max ridge height: 30′ 4″

Garage

Type: Attached
Area: 945 sq. ft.
Count: 3 Cars
Entry Location: Front, Courtyard

Roof Details

Primary Pitch: 6 on 12
Framing Type: Truss

View More Details About This Floor Plan

Plan 66188WE

The front exterior of this house plan is where the beauty of it all begins. The master bedroom is magnificent, with a bath with a turret and a roomy octagonal sitting space. You pass past the wet bar as you approach the family area and proceed below a barreled ceiling. A radial glass dinette and zero-corner sliders are accessible from the kitchen and family area. There is a lovely seating space outside near the pool under the covered lanai, just by the outdoor fireplace.
