2-Story 3-Bedroom Modern A-Frame with Ladder-Accessible 3rd Floor Loft (House Plan)

Learn more about the modern A-frame with a third-floor loft accessible via ladder layout. See how ideal this is when you build your future mountain home.

2,001 3 2-3

Welcome to our house plans featuring a 2-story 3-bedroom modern a-frame with ladder-accessible 3rd floor loft floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

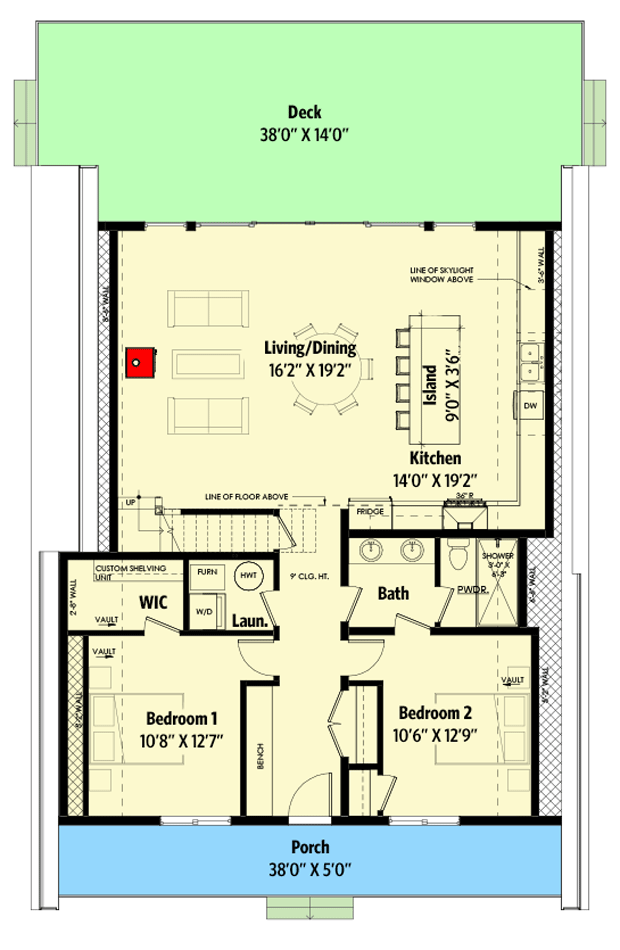

Main Level

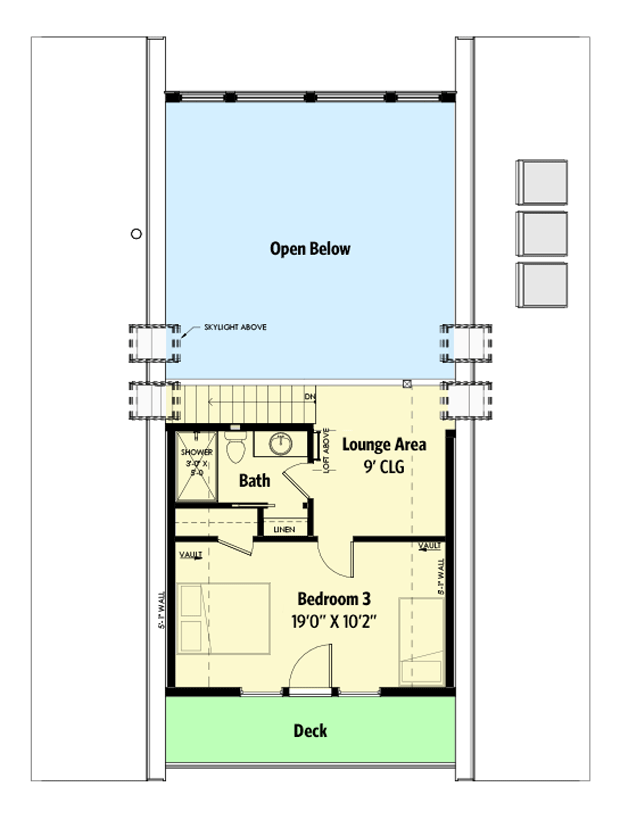

2nd Floor

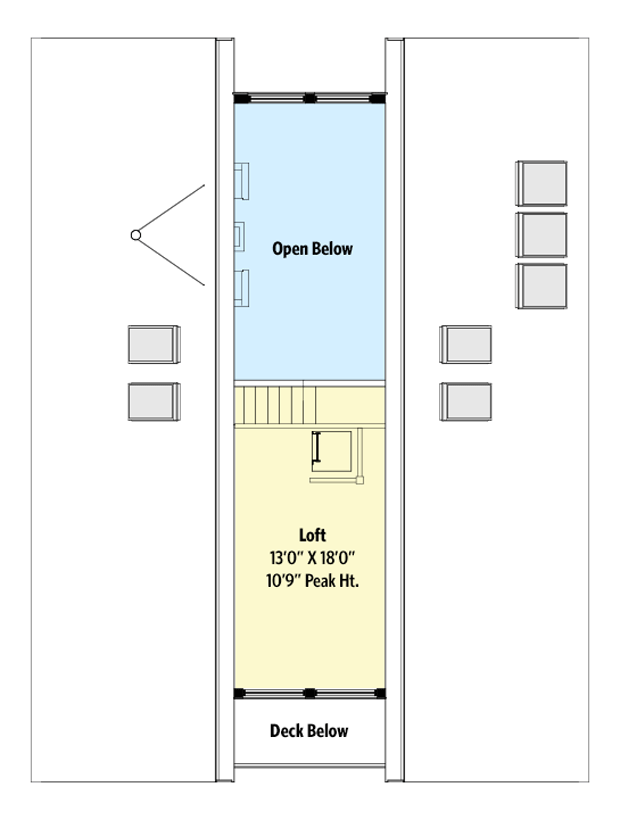

Third Level – Loft

Additional Floor Plan Images

A modern A-frame home with a <a href=wooden accent on the exterior.” class=”wp-image-12866″ title=”A-frame wooden exterior”/>

A modern A-frame home with a wooden accent on the exterior.

The deck area and window frames of the A-frame house are painted in black.

The deck area and window frames of the A-frame house are painted black.

A cozy campfire area with a wooden seats.

A cozy campfire area with wooden seats.

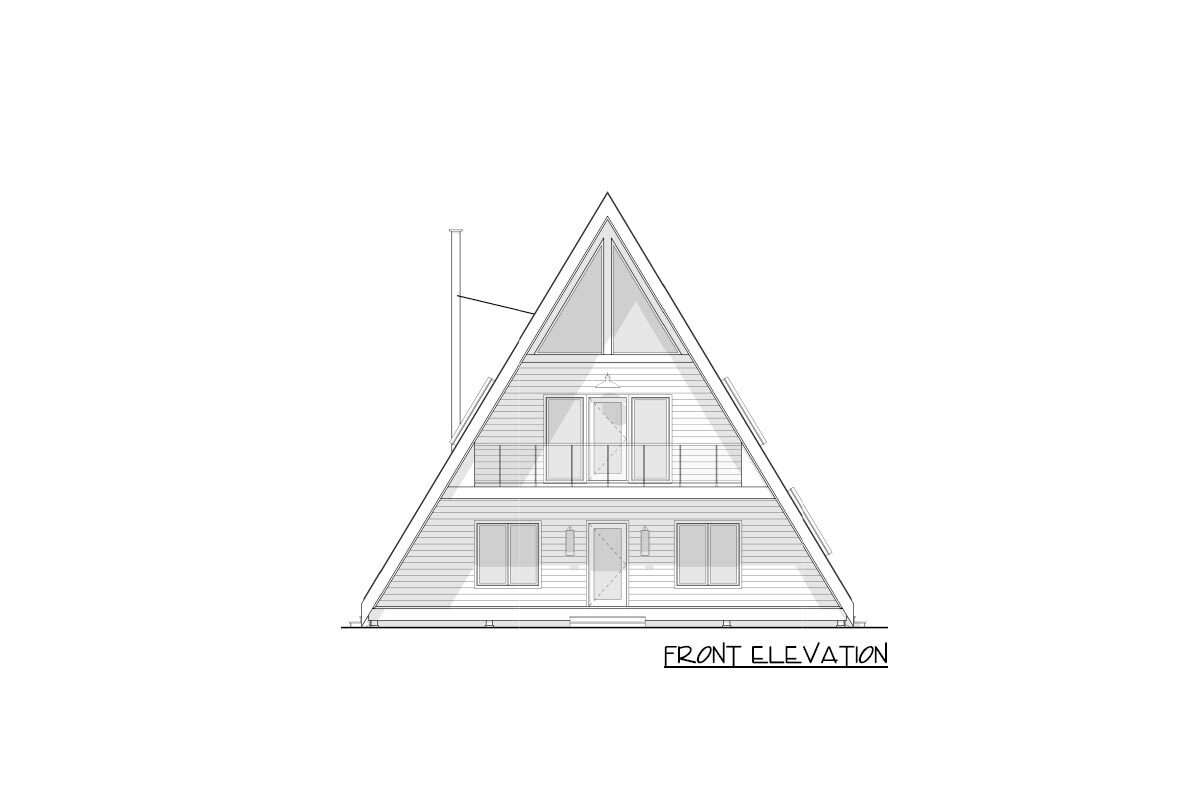

2 story, 3 bedroom, modern a-frame house front elevation sketch.

2 story, 3 bedroom, modern a-frame house front elevation sketch.

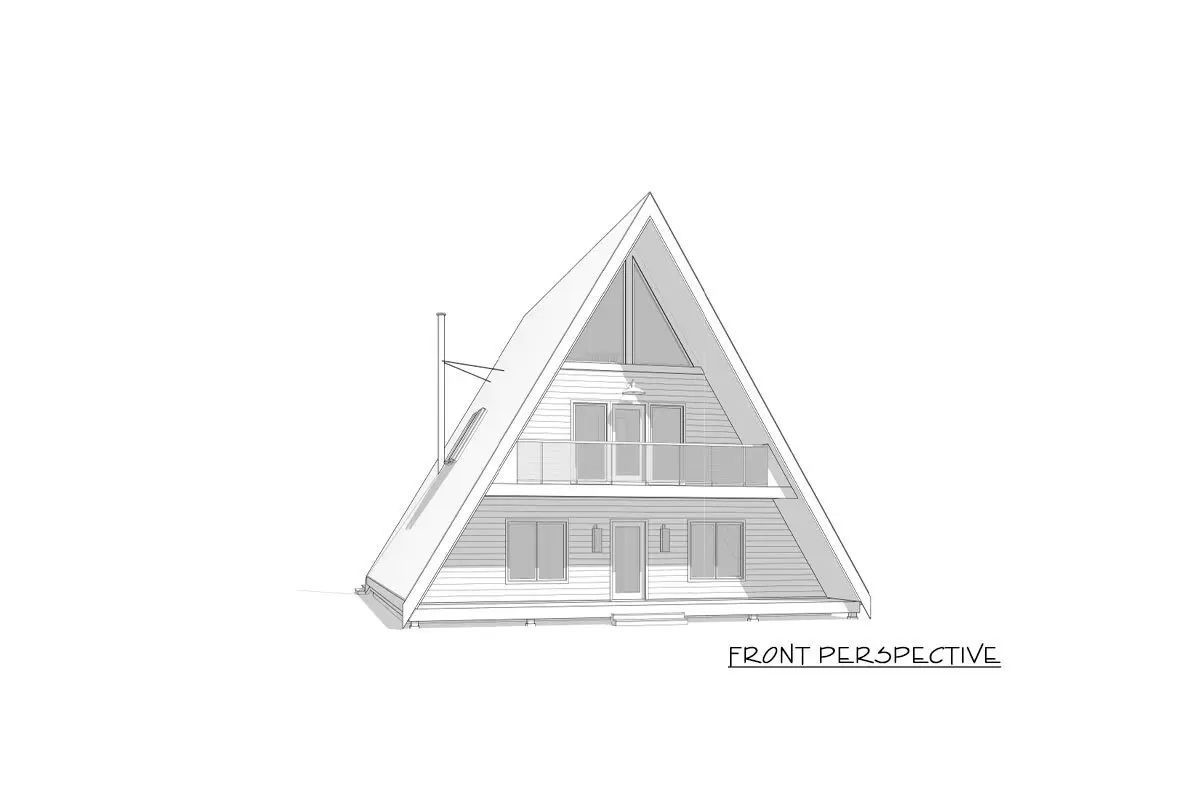

2 story, 3 bedroom, modern a-frame house front-perspective elevation sketch.

2 story, 3 bedroom, modern a-frame house front-perspective elevation sketch.

2 story, 3 bedroom, modern a-frame house rear elevation sketch.

2 story, 3 bedroom, modern a-frame house rear elevation sketch.

2 story, 3 bedroom, modern a-frame house rear-perspective elevation sketch.

2 story, 3 bedroom, modern a-frame house rear-perspective elevation sketch.

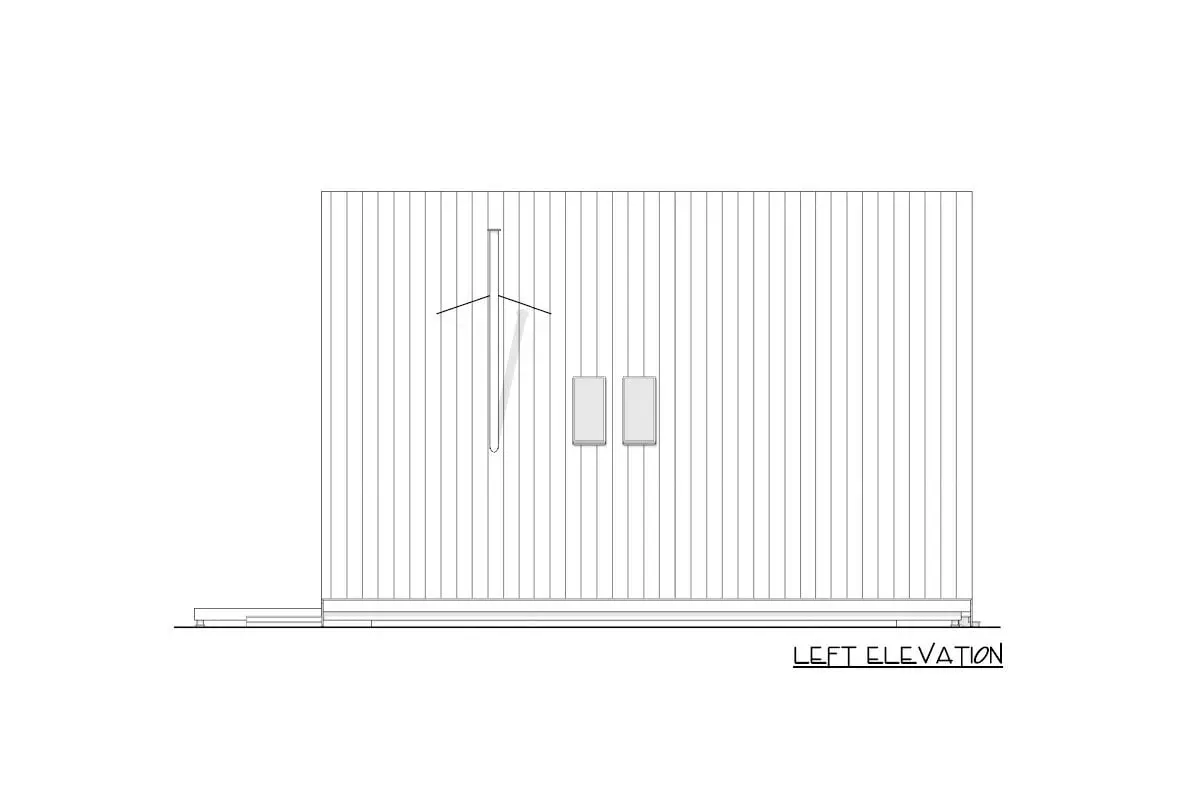

2 story, 3 bedroom, modern a-frame house left elevation sketch.

2 story, 3 bedroom, modern a-frame house left elevation sketch.

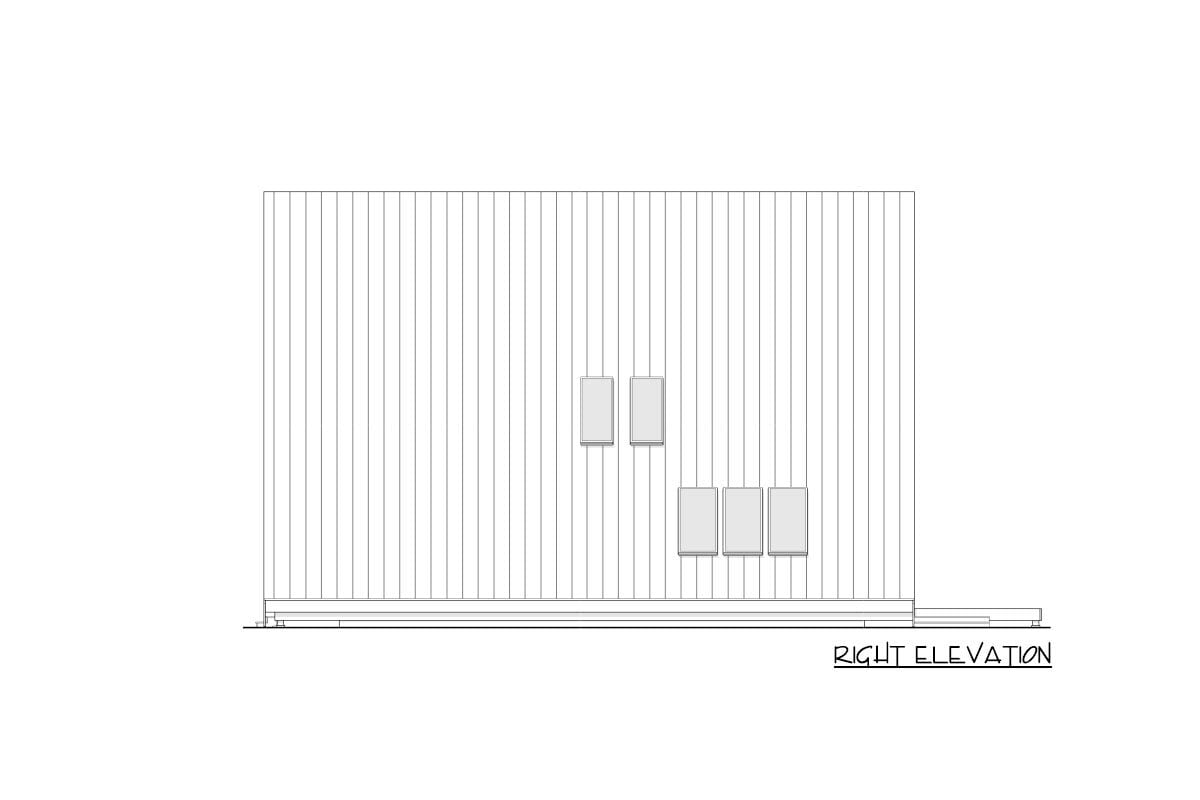

2 story, 3 bedroom, modern a-frame house right elevation sketch.

2 story, 3 bedroom, modern a-frame house right elevation sketch.

Plan Details

Dimensions

Width: 38′ 0″
Depth: 61′ 0″
Max ridge height: 34′ 11″

Ceiling Heights

First Floor /
9′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 20 on 12
Framing Type: Stick

Exterior Walls

Standard Type(s): 2×6

Dimensions

Width: 38′ 0″
Depth: 61′ 0″
Max ridge height: 34′ 11″

Ceiling Heights

First Floor /
9′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 20 on 12
Framing Type: Stick

View More Details About This Floor Plan

Plan 270046AF

This contemporary A-frame combines a stunning appearance with a shape that is simple. You’ll be sure to enjoy your time on the front and back decks as well as inside if you place this near a lake, in the mountains, or anyplace else you wish to go away.
The entryway has a seat and a coat closet to assist prevent debris from entering the house when you enter from the 5′-deep front porch. You enter two bedrooms through doors on your left and right.

Once you enter the soaring open living area with the kitchen and dining room combined beneath a vaulted ceiling, you may continue along the hall. Your views will be enhanced by the back windows. An opening in the back wall gives you access to a 14′-deep deck.
The home’s largest bedroom is located on the second level, where stairs lead to a lounge space with a view of the living room below. A section at the top of the stairs leads to a 239-square-foot loft on the third level that offers views out of the rear windows and overlooks the area below.

Related Plans: Discover different arrangements with the house plans 270047AF and 270048AF.
