2-Story 3-Bedroom Beachfront Living Craftsman Cottage Home (House Plan)

Explore this coastal lifestyle craftsman cottage home with a linear plan in further detail. See the interior design in the craftsman style.

1,581 3 2

Welcome to our house plans featuring a 2-story 3-bedroom craftsman cottage home floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

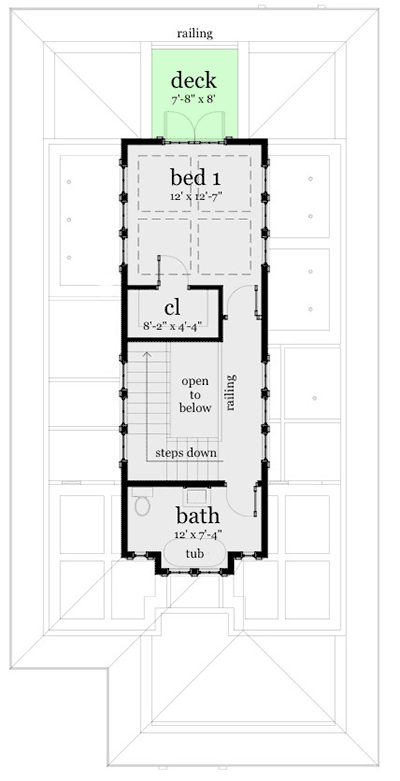

2nd Floor

Additional Floor Plan Images

Front of the house with a neutral color of shingles on the front porch area.

Front of the house with a neutral color of shingles on the front porch area.

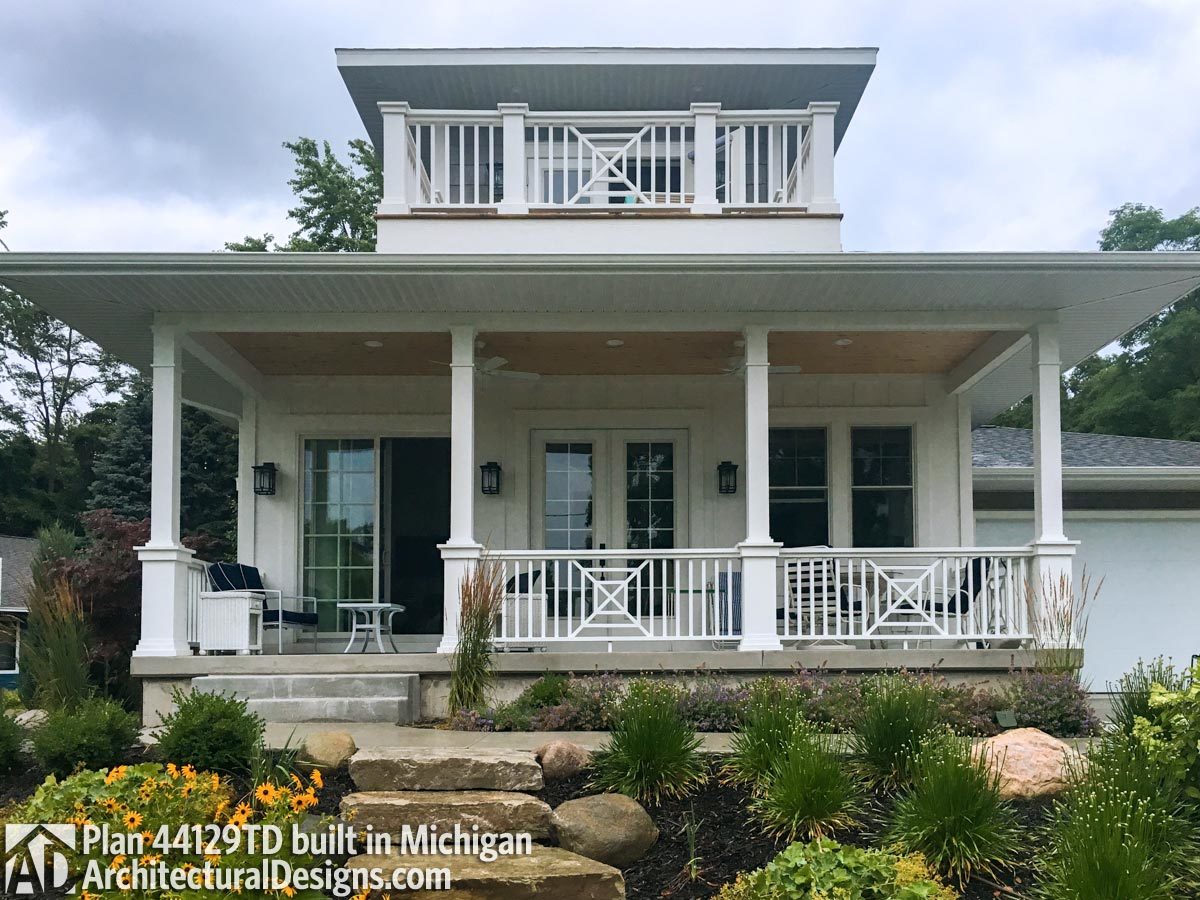

The back of the home with the porch and deck space above.

The back of the home with the porch and deck space above.

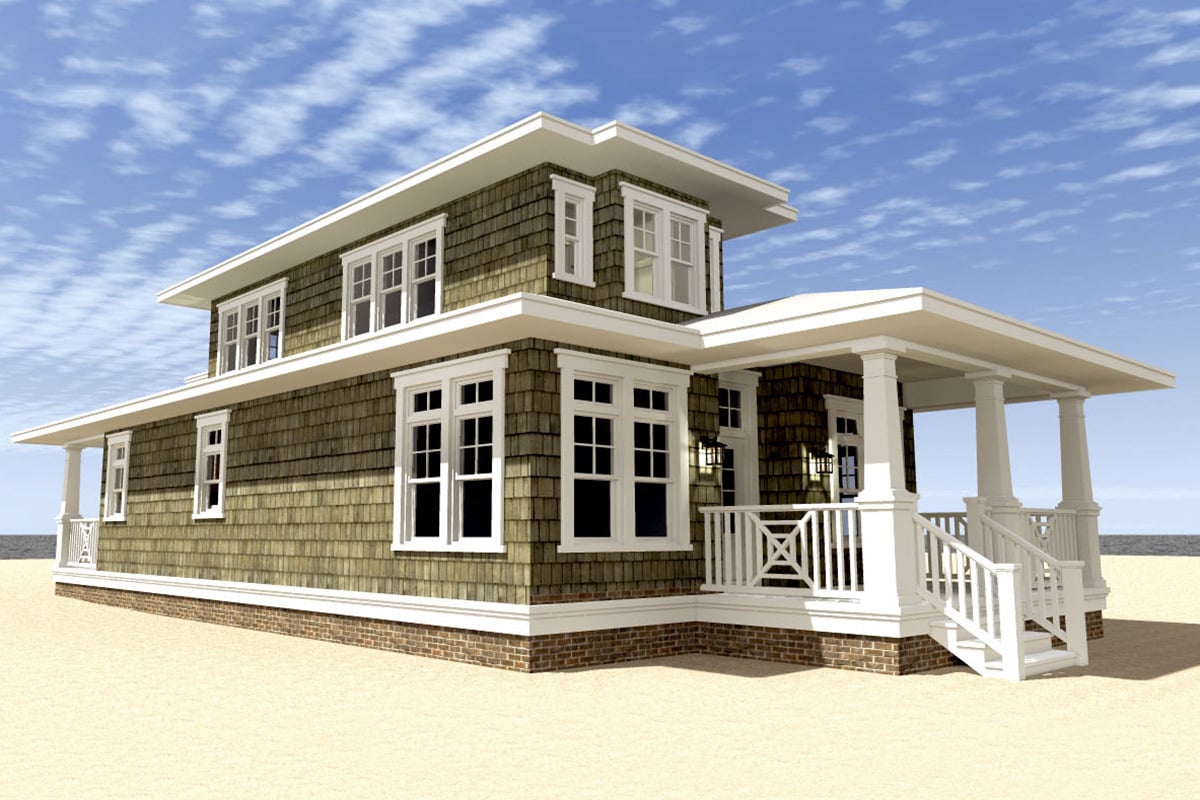

The left side of the house with a great shingle design wall and white window frames.

The left side of the house with a great shingle design wall and white window frames.

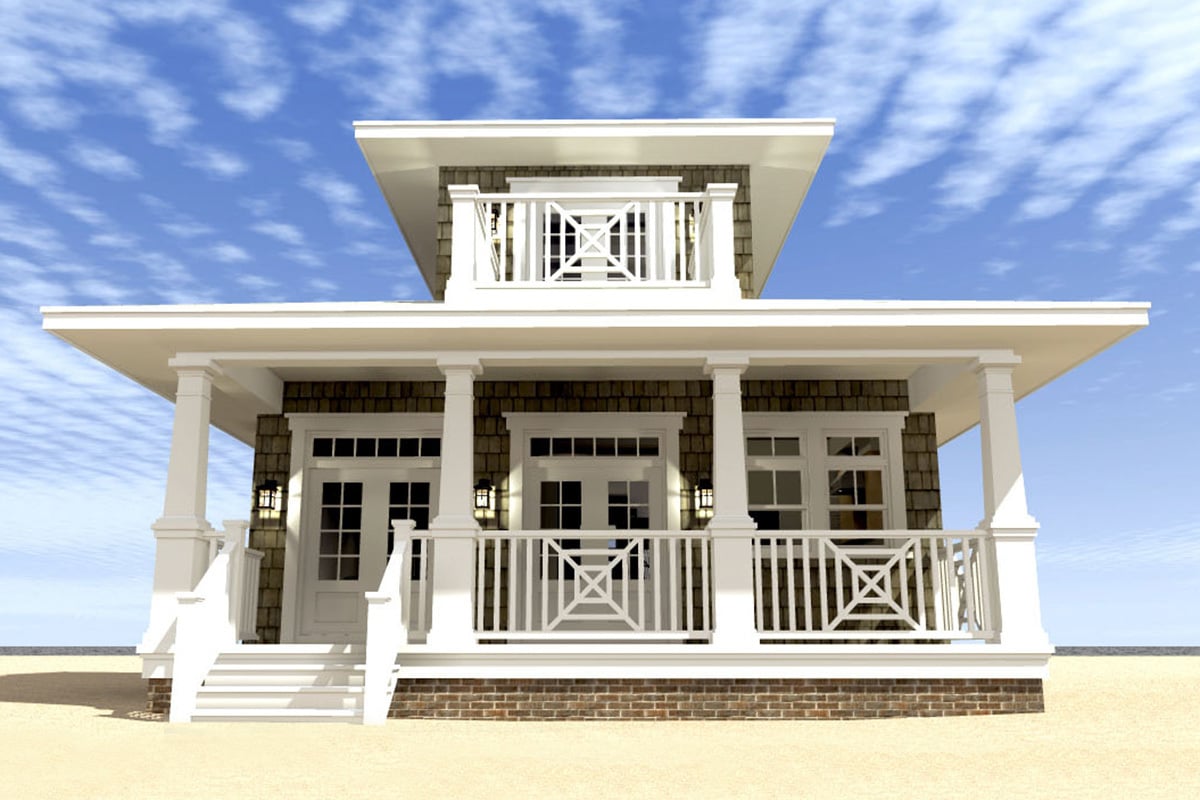

The back of the home has two doors in a magnificent style with white paint and glass accents.

The back of the home has two doors in a magnificent style with white paint and glass accents.

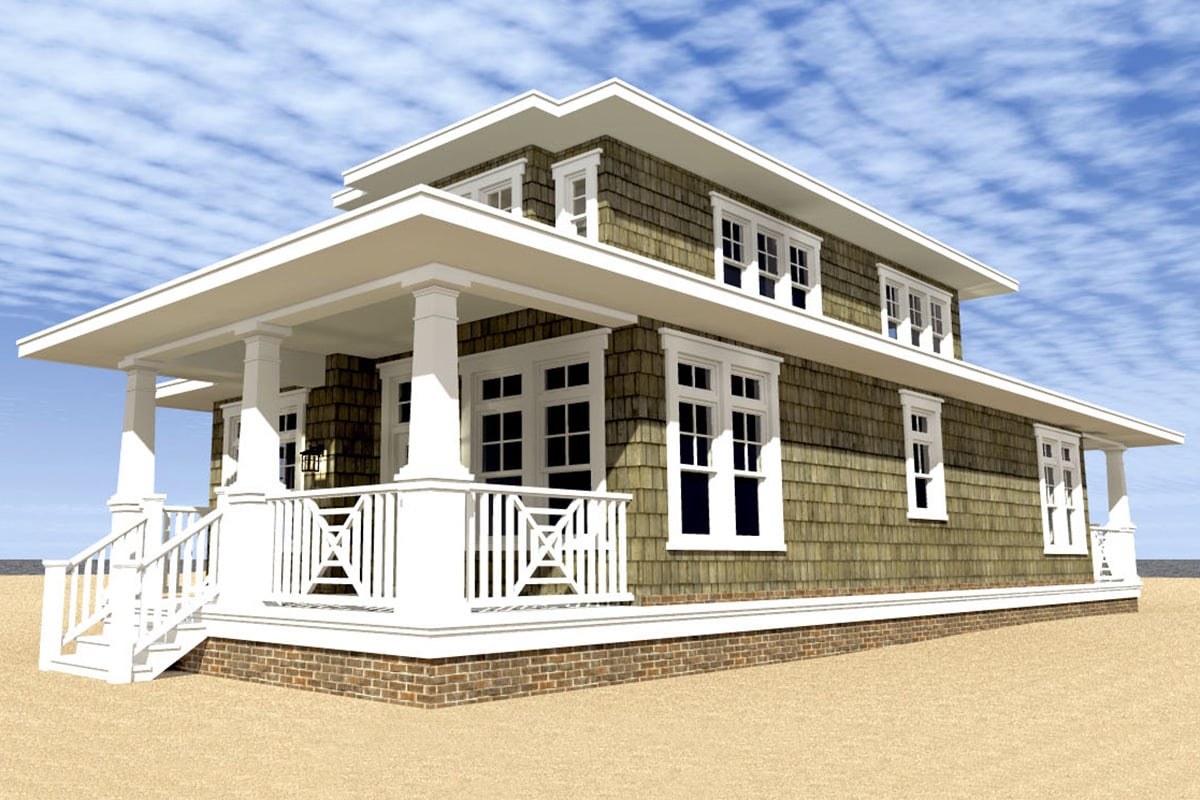

The brown brick foundation can be seen fully on the right side of the house.

The brown brick foundation can be seen fully on the right side of the house.

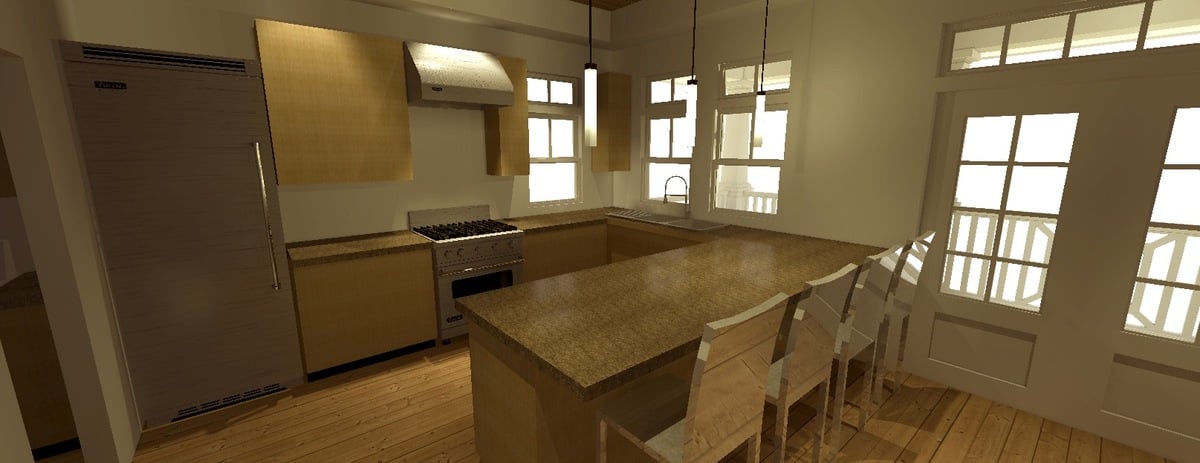

A sleek kitchen area with a brown tone inside paint.

A sleek kitchen area with a brown tone inside paint.

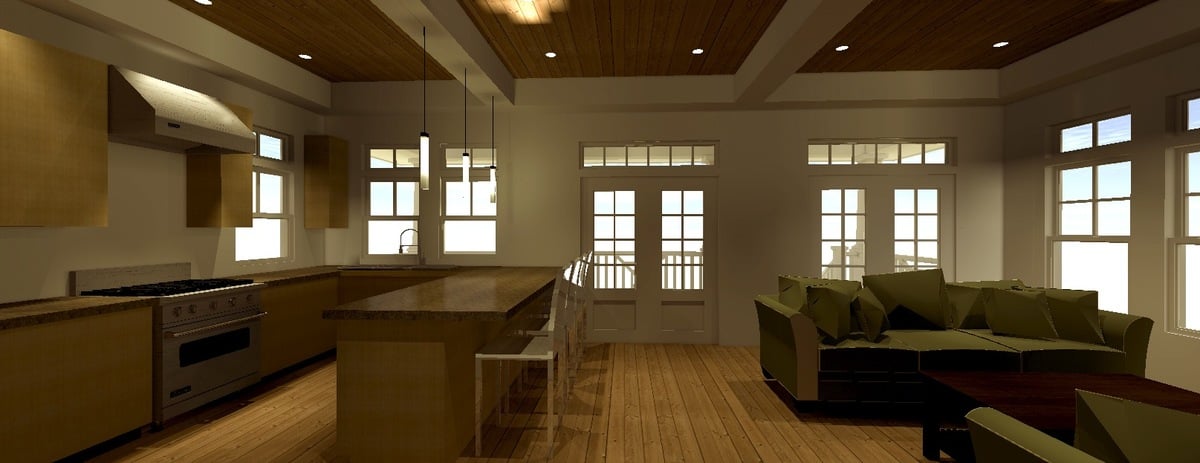

The living room is adjacent to the kitchen and has a high ceiling with a wood accent.

The living room is adjacent to the kitchen and has a high ceiling with a wood accent.

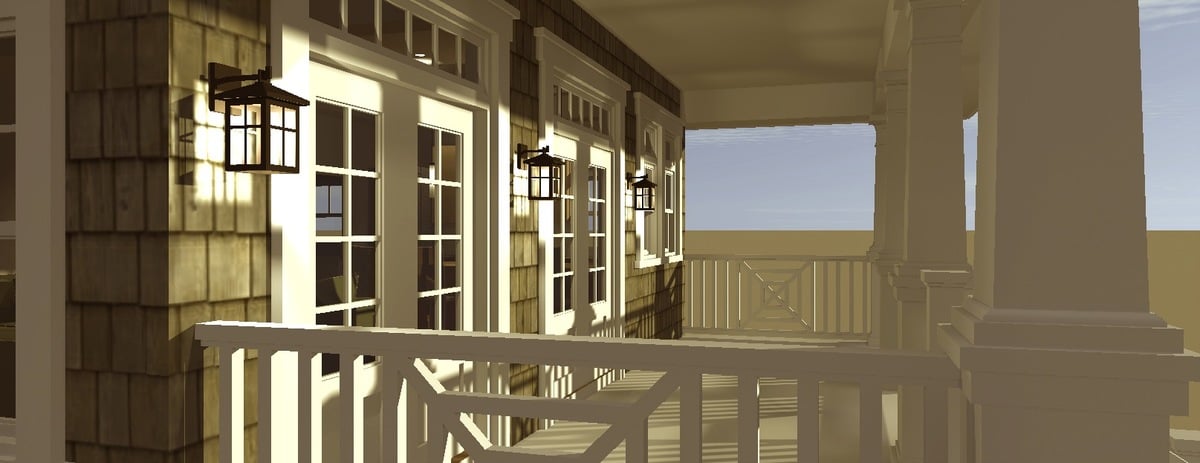

The back front porch has white wood railings and pillars.

The back front porch has white wood railings and pillars.

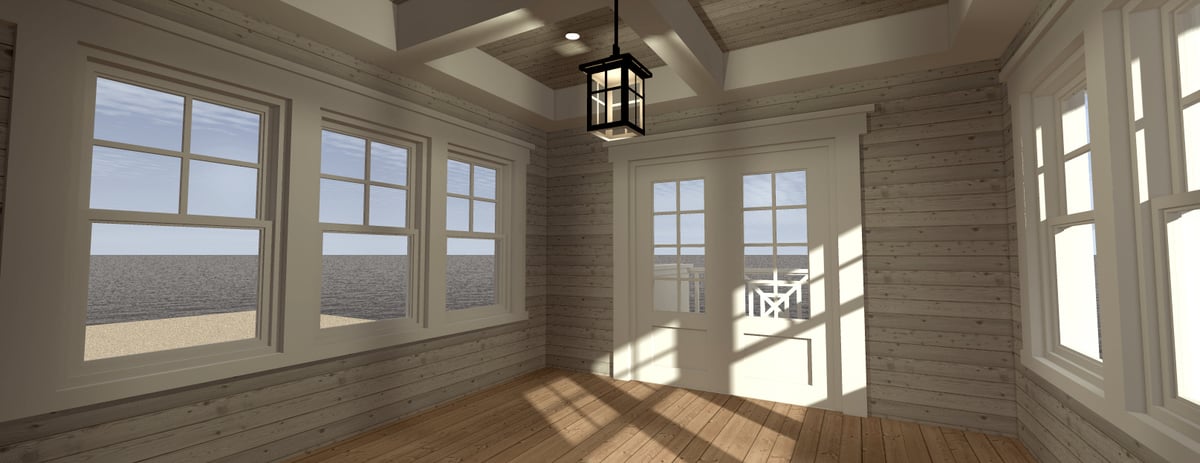

Bedroom space with access door to deck area with gray wall wood design.

Bedroom space with access door to deck area with gray wall wood design.

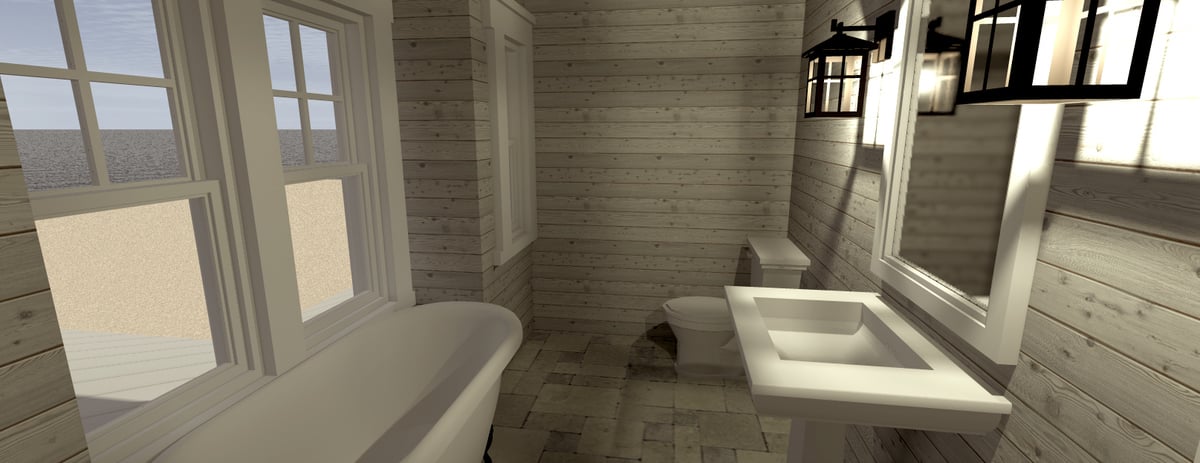

Bathroom with light wooden accents, tub, toilet, and sink.

Bathroom with light wooden accents, tub, toilet, and sink.

Plan Details

Dimensions

Width: 27′ 0″
Depth: 62′ 0″
Max ridge height: 26′ 0″

Ceiling Heights

First Floor /
10′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 4 on 12
Framing Type: Truss

Exterior Walls

Standard Type(s): 2×6

Dimensions

Width: 27′ 0″
Depth: 62′ 0″
Max ridge height: 26′ 0″

Ceiling Heights

First Floor /
10′ 0″
Second Floor /
9′ 0″

Roof Details

Primary Pitch: 4 on 12
Framing Type: Truss

View More Details About This Floor Plan

Plan 44129TD

This three-bedroom home plan provides the ideal for coastal informal entertaining. The entry foyer and corridor are flanked by two bedrooms.
Beyond there, the house opens up to reveal an elegant stairwell, living room, and kitchen.
Two sets of french doors connect the kitchen and living room to the porch.

The third bedroom upstairs features excellent views and a walkout terrace.
At 4:12, the roof is standing seam metal over a plywood deck with pre-engineered wood trusses. The façade has cedar shakes and white moldings.

Purchase a matching 2-car attached with garage plan 44134TD (2 car).

Related Plans: Get additional space with a home layout 44091TD (2,621 sq. ft.) and a more square layout with house plan 44117TD (2,616 sq. ft.). Downsize with house plan 44124TD (1,283 sq. ft.).

Include a detached garage layout with 44168TD (3 car), 44169TD (3 car), 44134TD (2 car) and 44167TD (2 car).
