Learn more about this drive-under beach vacation home. View the elegant style scheme and vast rooms on the inside.
Welcome to our house plans featuring a 2-story 3-bedroom beach vacation house floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.
Floor Plan

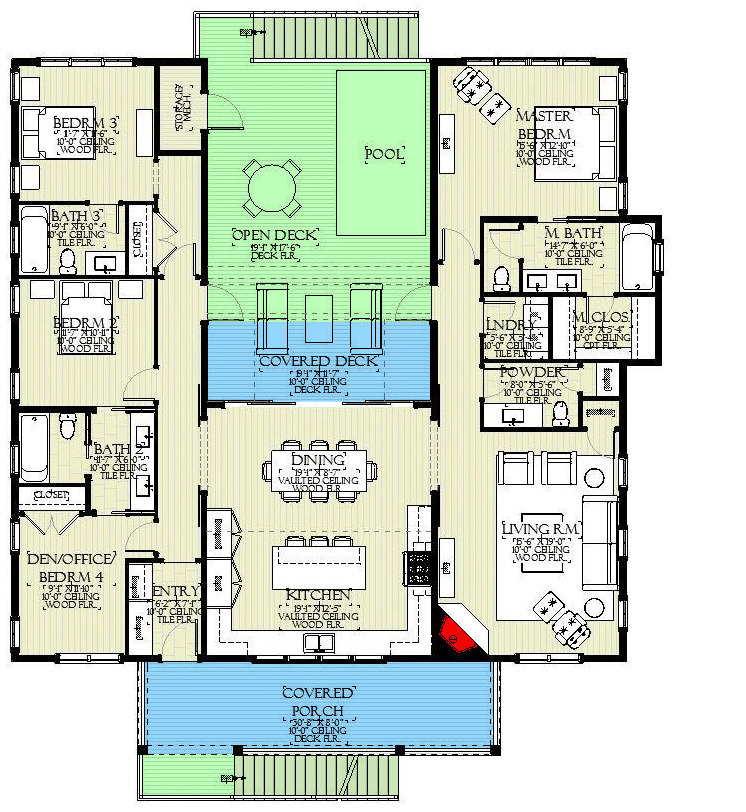

Main Level
Drive Under Garage
Additional Floor Plan Images

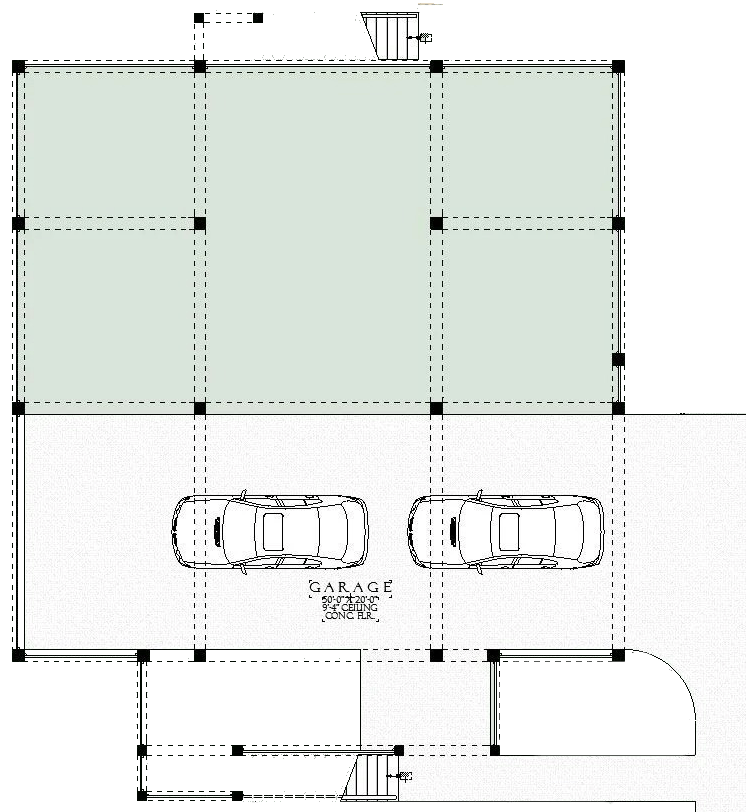

A drawing of the home layout showing a garage with a drive-under.

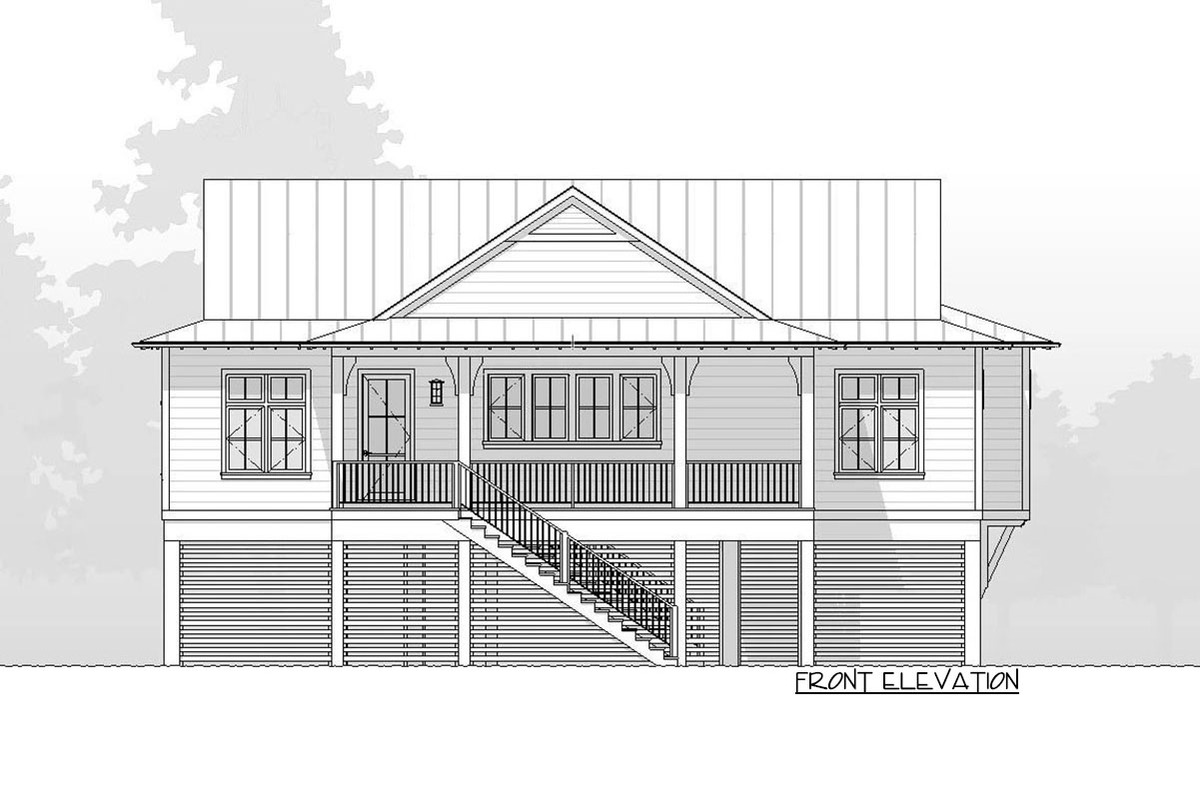

Sketch of the two-story, three-bedroom beach house’s front elevation.

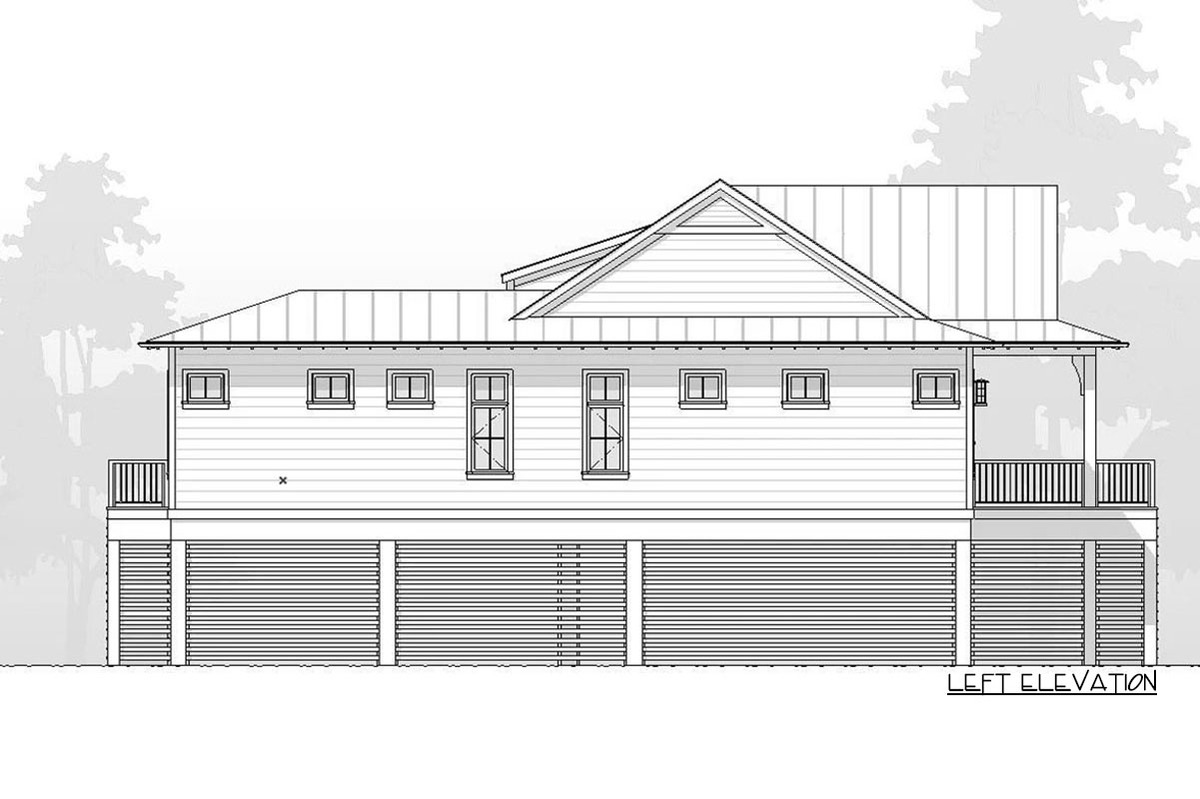

Sketch of the two-story, three-bedroom beach house’s left elevation.

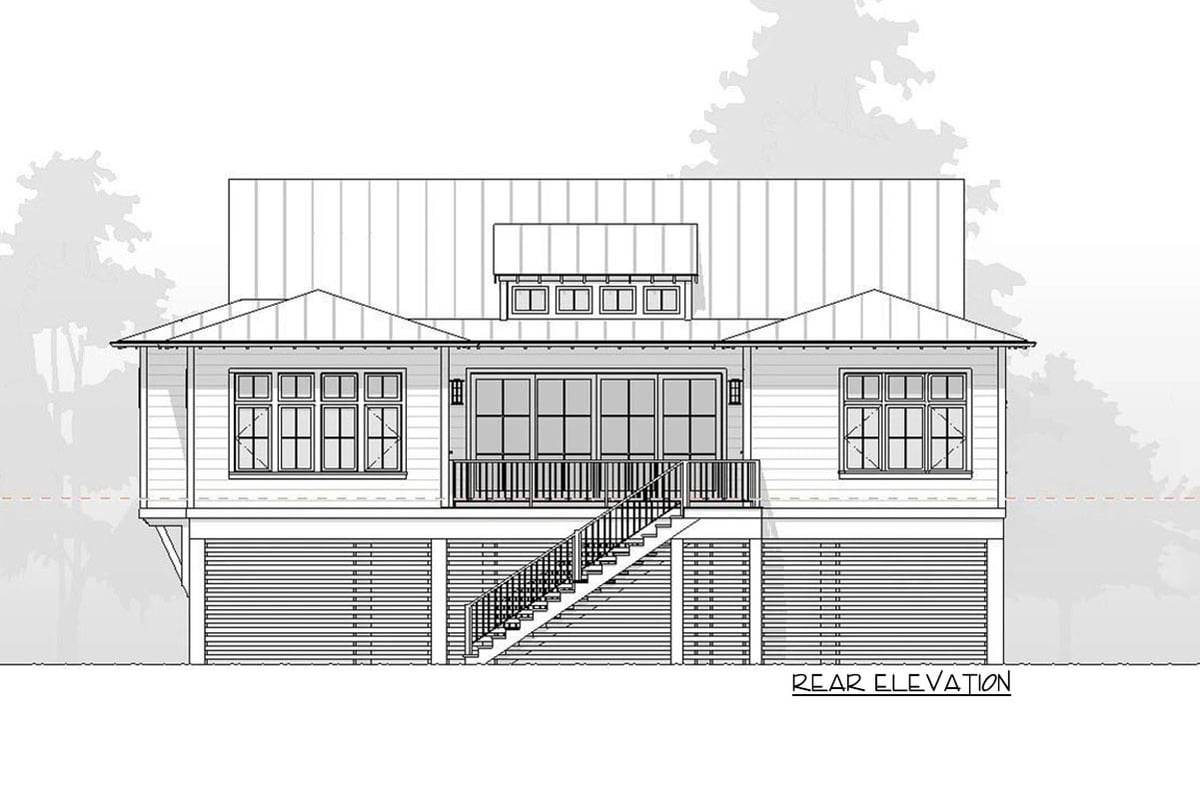

Sketch of the two-story, three-bedroom beach house’s rear elevation.

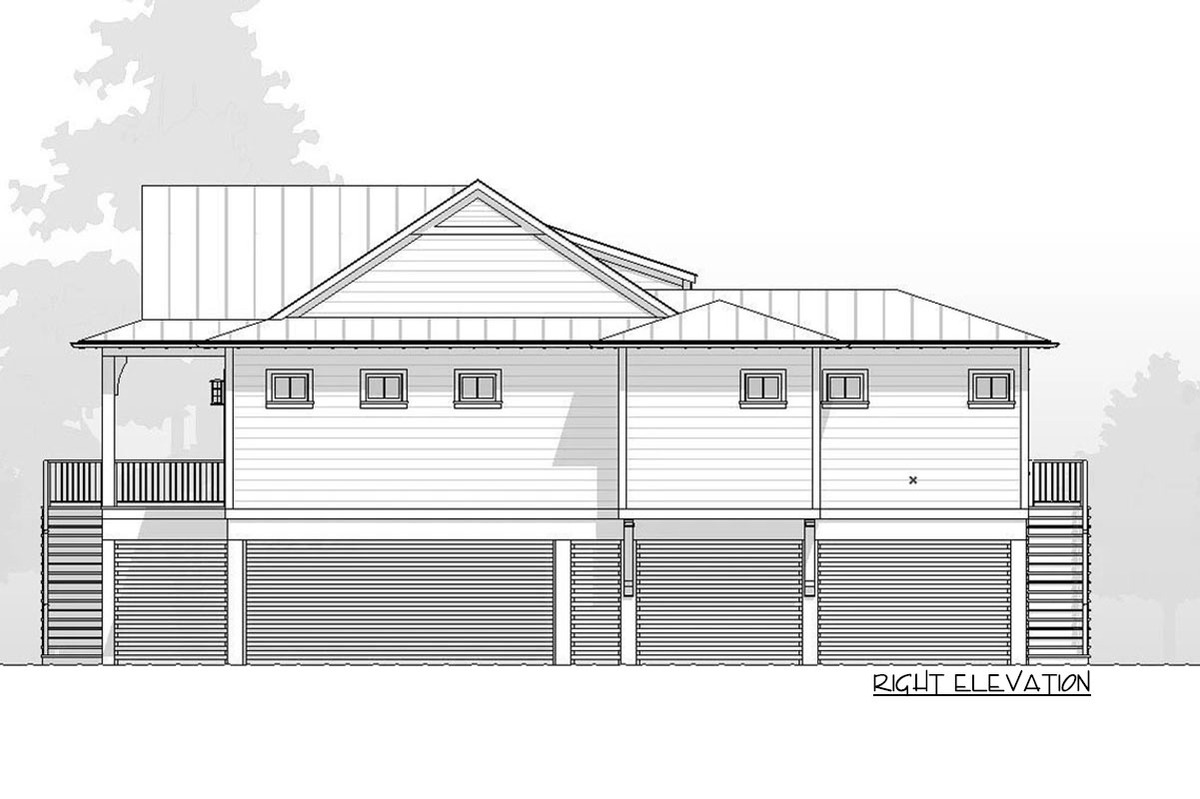

Sketch of the two-story, three-bedroom beach house’s right elevation.
Plan Details
Dimensions
| Width: | 60′ 0″ |
| Depth: | 52′ 0″ |
| Max ridge height: | 31′ 0″ |
Garage
| Type: | Drive Under |
| Count: | 2 Cars |
| Entry Location: | Side |
Ceiling Heights
| Lower Level / 9′ 4″ |
|
| First Floor / 10′ 0″ |
Roof Details
| Primary Pitch: | 8 on 12 |
| Framing Type: | Stick And Truss |
Dimensions
| Width: | 60′ 0″ |
| Depth: | 52′ 0″ |
| Max ridge height: | 31′ 0″ |
Garage
| Type: | Drive Under |
| Count: | 2 Cars |
| Entry Location: | Side |
Ceiling Heights
| Lower Level / 9′ 4″ |
|
| First Floor / 10′ 0″ |
Roof Details
| Primary Pitch: | 8 on 12 |
| Framing Type: | Stick And Truss |
View More Details About This Floor Plan
Plan 970093VC
This beach home plan has almost 2,100 square feet of living area on one level and is built on stilts to prevent flooding. To fully appreciate the outdoors, the living areas are situated around a deck that is partially covered. To facilitate a smooth transition between the kitchen and terrace area, the eat-in kitchen has huge sliding doors.
A large living area with a corner fireplace and lots of natural light is located close to the kitchen. The master bedroom has a walk-in closet and an adjacent bathroom with four fixtures. Along the left side of the house are the remaining bedroom suites. Use the flexible space as a den, home office, or additional bedroom. Under the house, there is a tandem, double garage.
