Find out more details on this 3-bay barndominium garage apartment. Take a look at the exterior's three-tone paint job and towering ceilings.
Welcome to our house plans featuring a 2-story 2 bedrooms 3-bay barndominium garage apartment floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.
Floor Plan
Main Level
2nd Floor
Additional Floor Plan Images
The home’s magnificent red roof and light green walls are visible from the front.
Left elevation sketch of the 2-story 2 bedroom 3-bay barndominium garage apartment.

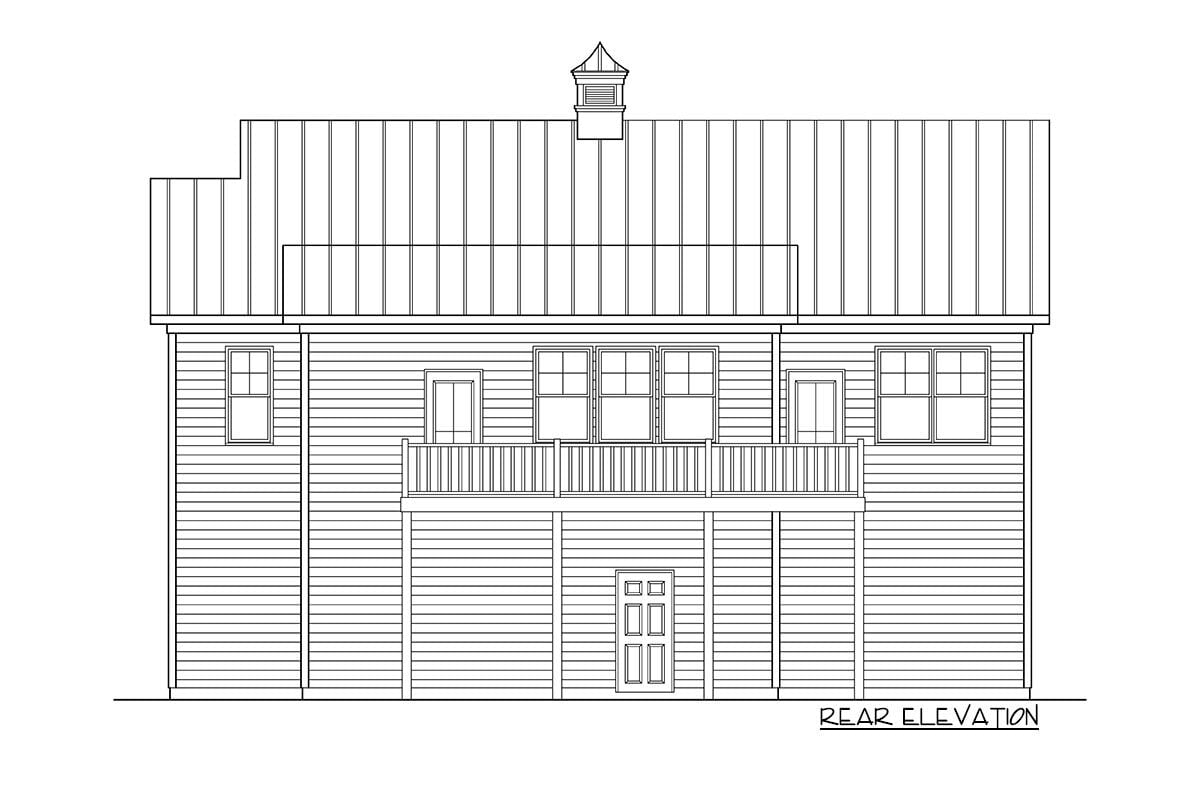

Rear elevation sketch of the 2-story 2 bedroom 3-bay barndominium garage apartment.

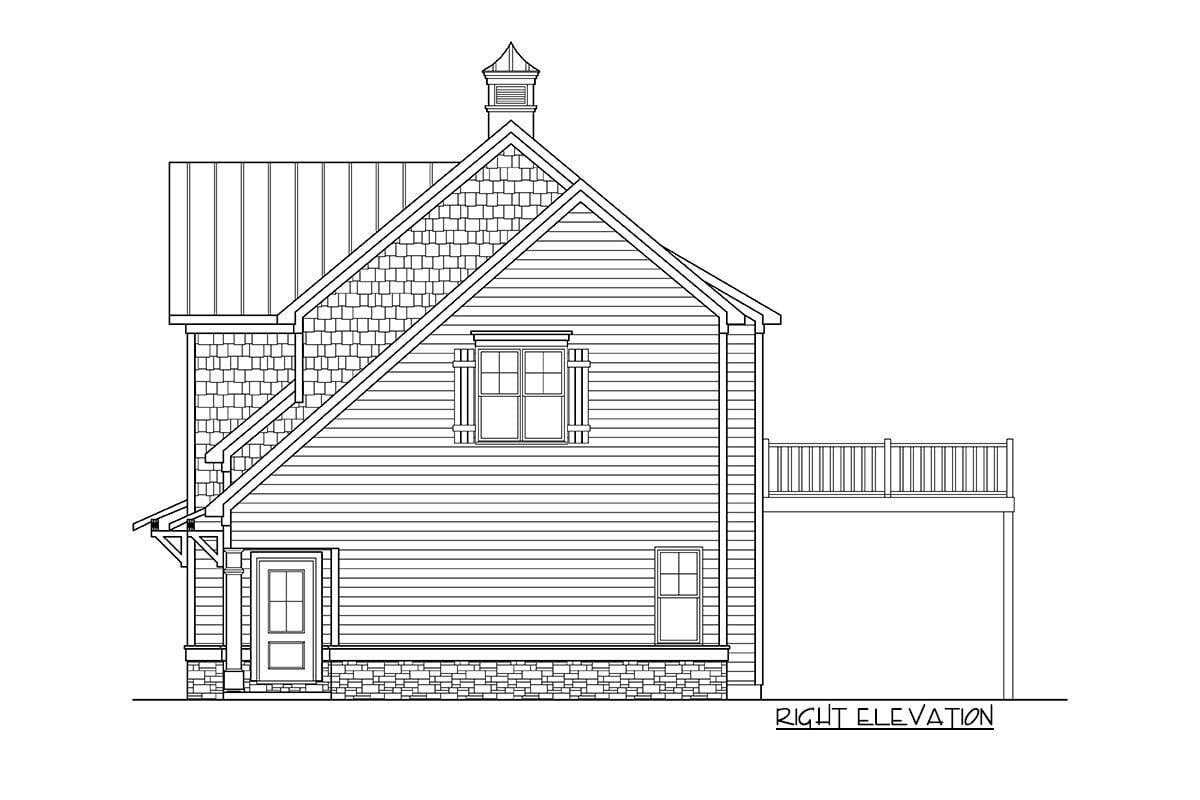

Right elevation sketch of the 2-story 2 bedroom 3-bay barndominium garage apartment.
Plan Details
Dimensions
| Width: | 48′ 0″ |
| Depth: | 32′ 0″ |
| Max ridge height: | 31′ 10″ |
Garage
| Type: | Detached |
| Area: | 1267 sq. ft. |
| Count: | 3 Cars |
| Entry Location: | Front |
Ceiling Heights
| First Floor / 10′ 0″ |
|
| Second Floor / 9′ 0″ |
Roof Details
| Primary Pitch: | 12 on 12 |
| Secondary Pitch: | 10 on 12 |
Dimensions
| Width: | 48′ 0″ |
| Depth: | 32′ 0″ |
| Max ridge height: | 31′ 10″ |
Garage
| Type: | Detached |
| Area: | 1267 sq. ft. |
| Count: | 3 Cars |
| Entry Location: | Front |
Ceiling Heights
| First Floor / 10′ 0″ |
|
| Second Floor / 9′ 0″ |
Roof Details
| Primary Pitch: | 12 on 12 |
| Secondary Pitch: | 10 on 12 |
View More Details About This Floor Plan
Plan 360084DK
This barndominium garage apartment features 10′ ceilings on the main floor and 3 separate garage spaces, the first one positioned forward from the ones to the sides. A door leading to a covered space is located in the center of the back wall. You have a spot to clean up after working on your cars or the yard thanks to the half bathroom that is hidden away in the corner.
You ascend the stairs on the right and find yourself in the center of the level, which is open from front to back. A big open terrace is reached by a door on your right, which is also accessible from the back bedroom.
A Jack and Jill bathroom connects the bedrooms. The kitchen island offers space for informal dining, and the utility room is located in the back-right corner, along with a spacious walk-in pantry.
