2-Story 2-Bedroom Craftsman Carriage House with Storage Space (House Plan)

Learn more about the intriguing layout of a craftsman carriage house. A design that will complement your aesthetic while being a child-friendly home.

856 2 2 2

Welcome to our house plans featuring a 2-story 2-bedroom craftsman carriage house with a storage space floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Floor Plan

Main Level

2nd Floor

Additional Floor Plan Images

View of the house with front-facing garage and deck with wooden-style frame.

View of the house with front-facing garage and deck with wooden-style frame.

The right side of the <a href=home has a white painted flat siding type wall.” class=”wp-image-12866″ title=”The right side of the home “/>

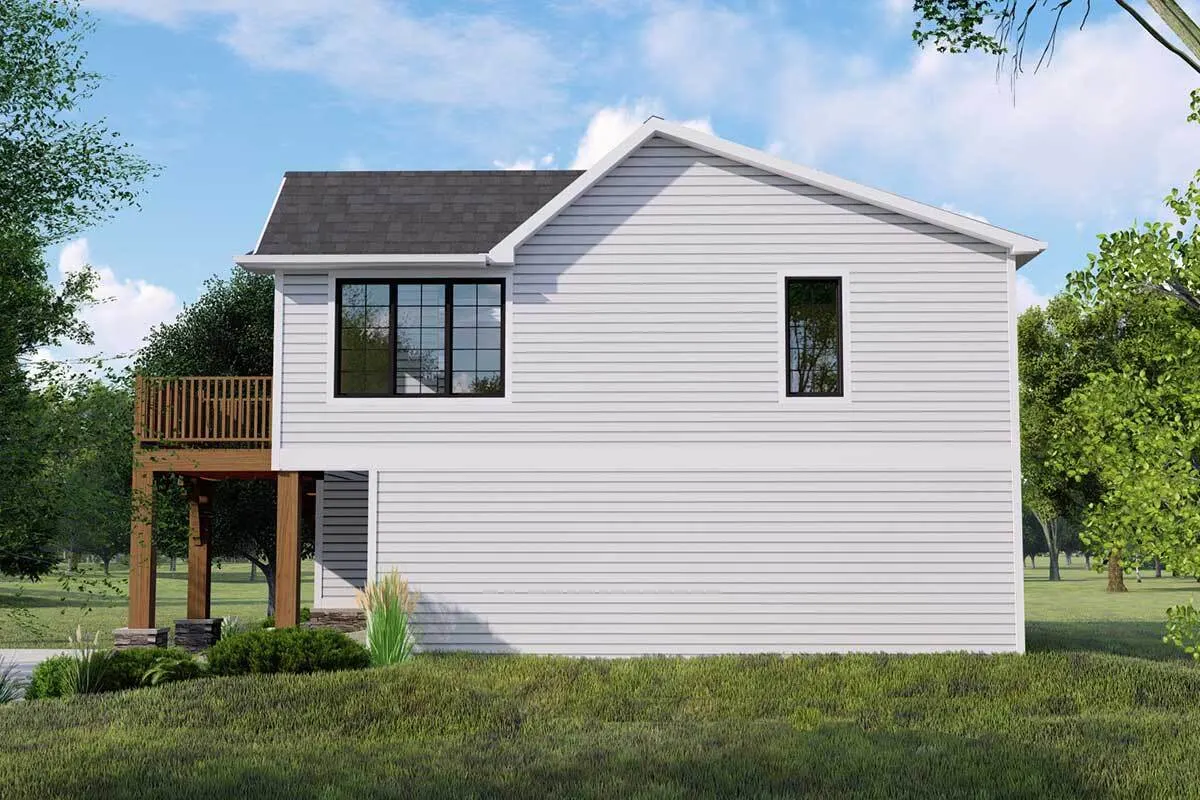

The right side of the home has a white painted flat siding type wall.

The back of the home has black windows with white trim.

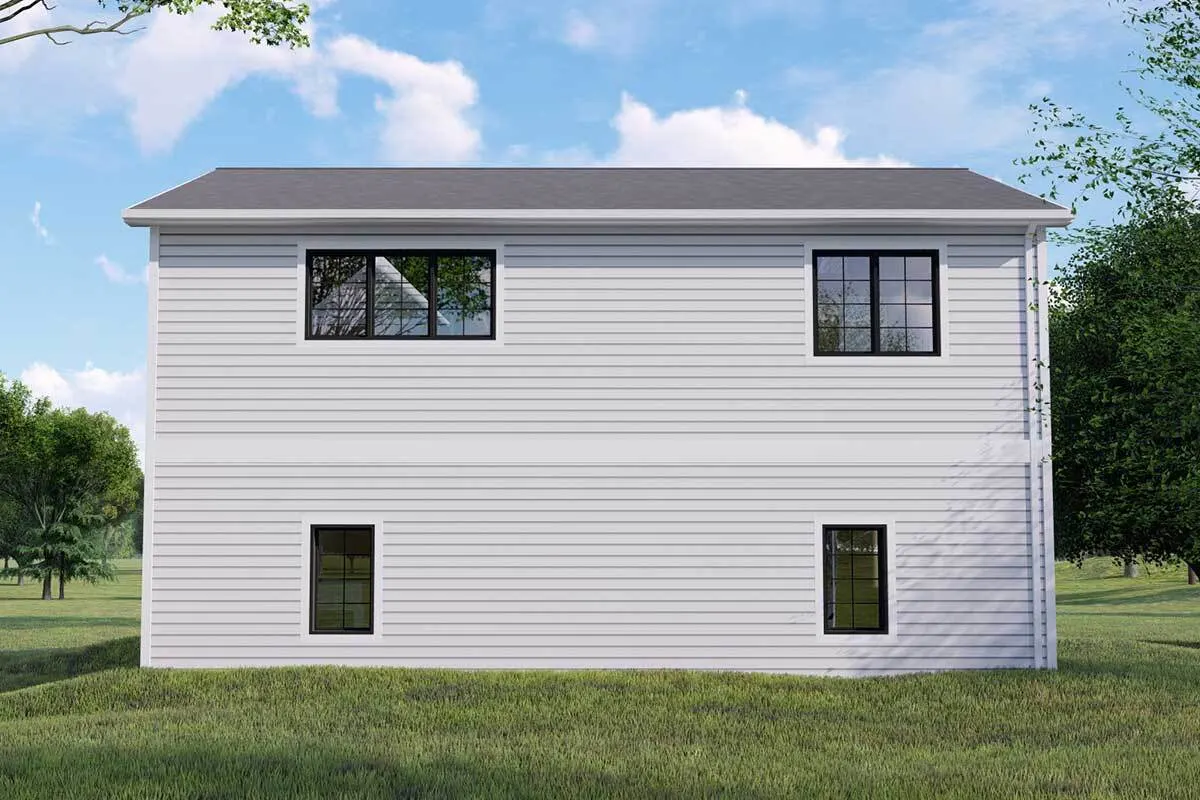

The back of the home has black windows with white trim.

A view of the house from the left side, with a slanting roof visible in the garage area.

A view of the house from the left side, with a slanting roof visible in the garage area.

Plan Details

Dimensions

Width: 32′ 8″
Depth: 36′ 0″
Max ridge height: 23′ 7″

Garage

Type: Attached
Area: 944 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

First Floor /
9′ 0″
Second Floor /
8′ 0″

Exterior Walls

Standard Type(s): 2×6

Dimensions

Width: 32′ 8″
Depth: 36′ 0″
Max ridge height: 23′ 7″

Garage

Type: Attached
Area: 944 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

First Floor /
9′ 0″
Second Floor /
8′ 0″

View More Details About This Floor Plan

Plan 135074GRA

This Craftsman Carriage house plan with two bedrooms is ideal for in-laws, an income property, or a boomerang kid. The classic design will complement any home or neighborhood. The extra-deep double garage has room for storage or a workshop, as well as a powder bath. Discover an open living room, kitchen, and dining space upstairs, as well as access to a private terrace. Two bedrooms flank the left side, and a full bathroom is conveniently positioned in the center.
