2-Story 2-Bedroom 4-Plex Apartment with Master Suite (House Plan)

Posted on

Categories House Plans

Learn more about the 4-plex apartment concept with a master suite. See the shingled and siding architectural exterior with glass windows.

4,108 4
BUY THIS PLAN

Welcome to our house plans featuring a 2-story 2-bedroom 4-plex Apartment with a master suite floor plan. Below are floor plans, additional sample photos, and plan details and dimensions.

Table of Contents show

Floor Plan

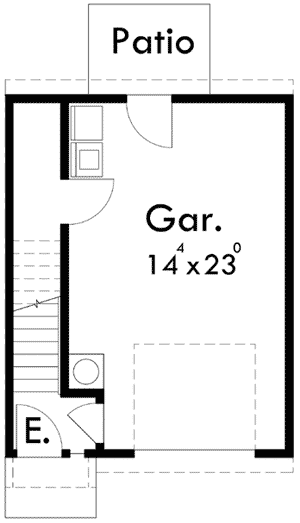

Basement

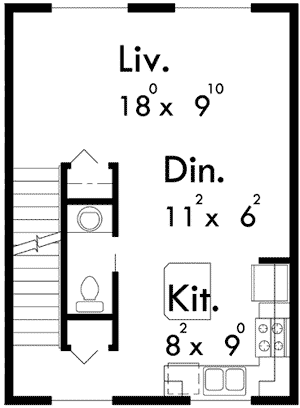

Main Level

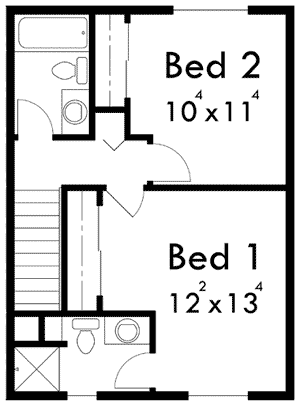

2nd Floor

BUY THIS PLAN

Additional Floor Plan Images

The front of the home features a four-door apartment layout with red doors.

The front of the home features a four-door apartment layout with red doors.

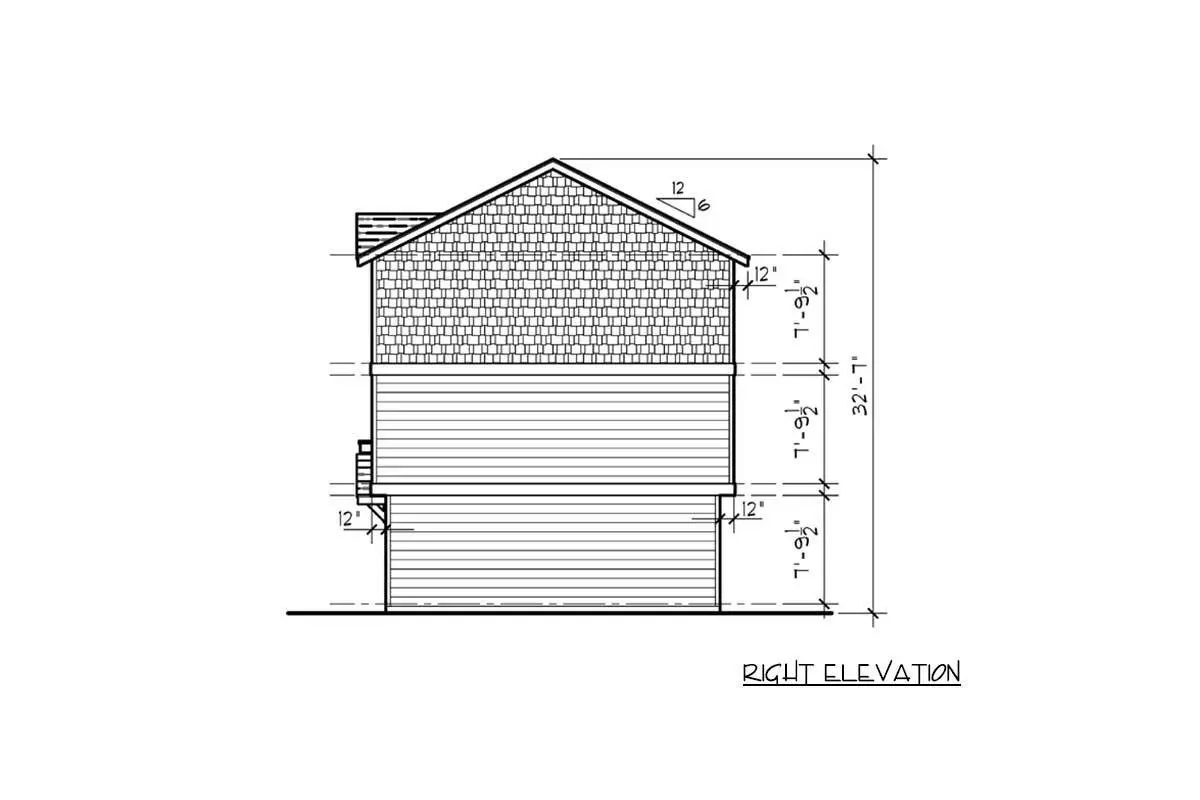

Right elevation sketch of the 2-story 2-bedroom 4-plex apartment.

Right elevation sketch of the 2-story 2-bedroom 4-plex apartment.

BUY THIS PLAN

Plan Details

Dimensions

Width: 76′ 0″
Depth: 26′ 0″
Max ridge height: 32′ 7″

Garage

Type: Drive Under
Area: 1668 sq. ft.
Count: 4 Cars
Entry Location: Front

Foundation Type

Standard Foundations: Slab

Exterior Walls

Standard Type(s): 2×6

Dimensions

Width: 76′ 0″
Depth: 26′ 0″
Max ridge height: 32′ 7″

Garage

Type: Drive Under
Area: 1668 sq. ft.
Count: 4 Cars
Entry Location: Front

View More Details About This Floor Plan

Plan 8165LB

This four-unit home plan features simple lines and fits four apartments into a single rectangular cost-effective footprint. Each unit contains 494 square feet of living space on each of the main living floors plus an additional 39 square feet on the basement level, which houses the garage.
